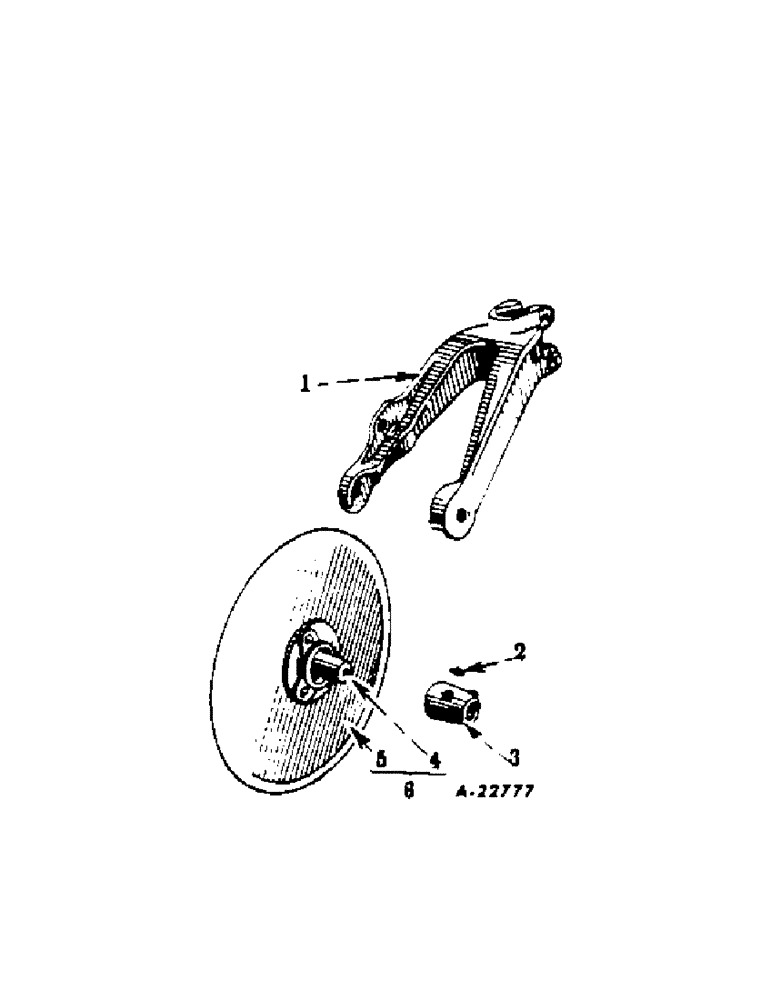

Запчасти Case IH 296 (T-3[A]) - ROLLING COLTERS, SECOND BEAM

1

8489A

YOKE, right, for 16 in. blade, 1-1/4 shank

1шт.

1

PO2564

YOKE, right, for 18 in. blade, 1-1/4 shank

1шт.

7/16 x 2-1/2 CRG BOLT

2шт.

1/2 x 7 CRG BOLT

1шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

3

SA1348

BUSHING

left

1шт.

3

SA1347

BUSHING

right

1шт.

4

468727R1

HUB

2шт.

5/16 x 1-1/2 RD-HD RIVET

3шт.

5

468724R1

BLADE

notched, 16 in. dia

1шт.

5

468726R1

COULTER

BLADE, notched, 18 in. dia

1шт.

5

468723R1

COULTER

BLADE, plain, 16 in. dia

1шт.

5

468725R1

COULTER

BLADE, plain, 18 in. dia

1шт.

6

PO20280

BLADE W/HUBS, notched, 16 in. dia

1шт.

6

PO15789

BLADE W/HUBS, notched, 18 in. dia

1шт.

6

PO20274

BLADE W/HUBS, plain, 16 in. dia

1шт.

6

PO14912

BLADE

W/HUBS, plain, 18 in. dia

1шт.
