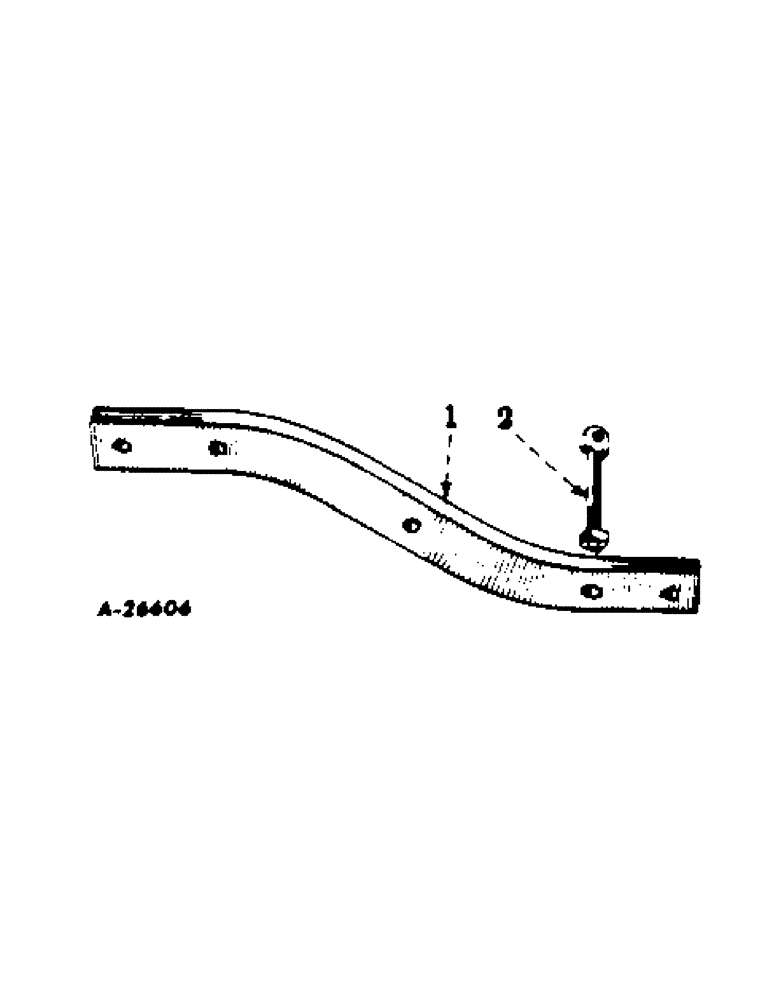

Запчасти Case IH 295 (S-03) - 2" WIDTH BEAM & BRACES, FIELD CONVERSION PACKAGE, BEAM STIFFENER ATTACHMENT, USED W/ 2" WIDTH BEAM

517677R91

FIELD CONVERSION PACKAGE, for converting 1-3/4 width beams to 2 in. width beams, consists fo all parts listed below

1шт.

515003R1

BEAM, second, 2 in. width

1шт.

515002R3

EXTENSION, second beam, 12 in.

1шт.

5/8 x 3-1/4 MACH BOLT

4шт.

5/8 LOCK WASHER

4шт.

517633R1

BEAM, first, 2 in. width

1шт.

516051R92

BRACE, beam, 12 in.

1шт.

5/8 x 2-1/2 MACH BOLT

1шт.

5/8 x 3-1/4 MACH BOLT

2шт.

5/8 x 3-1/2 MACH BOLT

2шт.

5/8 x 4 MACH BOLT

1шт.

BEAM STIFFENER, machine attachment 516713R92, used only on plows equipped with 2 in. width beams, consists of all the parts listed below

1шт.

1

517156R91

BAR, stiffener

1шт.

5/8 NUT

4шт.

5/8 x 3 CAP SCREW

1шт.

5/8 x 4-3/4 CAP SCREW

1шт.

5/8 x 5 CAP SCREW

2шт.

5/8 LOCK WASHER

4шт.

21/32 x 1-1/2 x 11 GA WASHER

1шт.

2

516758R11

EYEBOLT W/NUT, colter bracket

1шт.

5/8 NUT

1шт.

7466

WASHER

beam

1шт.
