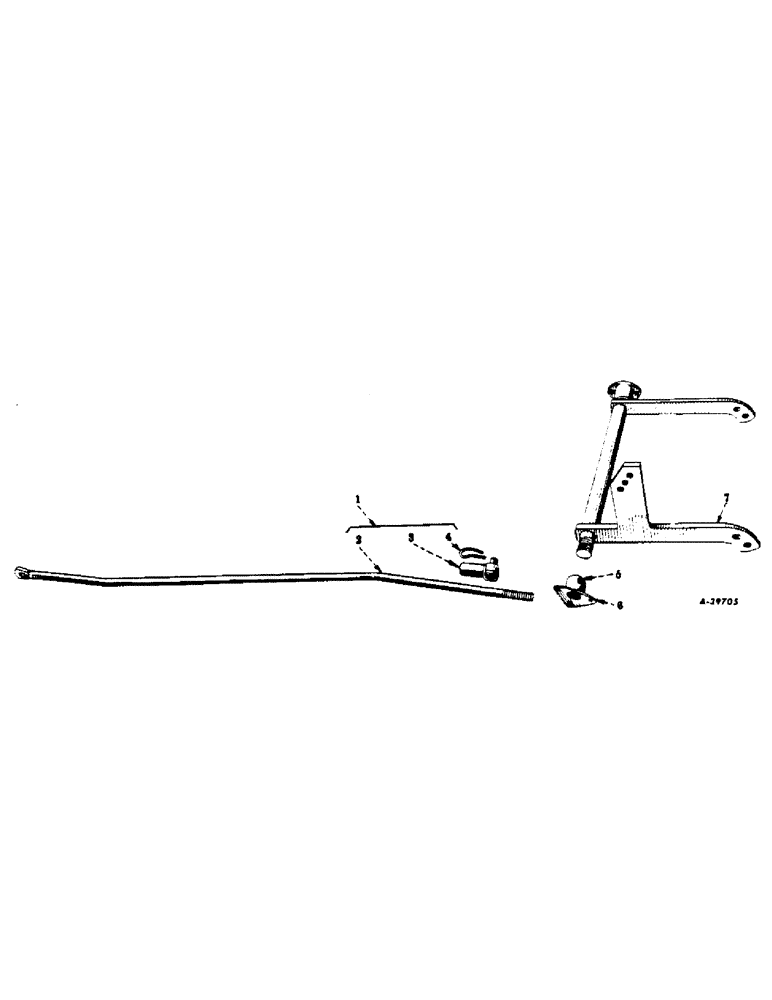

Запчасти Case IH 295 (S-10) - RIGID ROCKSHAFT WITH LIFT LINK

1

515226R91

ROCKSHAFT

LINK ASSY, lifting, consists of, (1) link 515059R1, (1) swivel 515060R91

1шт.

2

515059R11

LINK

W/NUTS, lifting

1шт.

218443

NUT

3/4 JAM NUT

1шт.

3

515060R91

END

SWIVEL, lifting link

1шт.

4

PO18499

COTTER PIN

QUICK ATTACHABLE COT PIN

1шт.

21/32 x 1-1/4 x 16 GA WASHER

1шт.

5

109358

FITTING, 5/16 str drive lub

1шт.

6

512447R21

BEARING ASSY

W/FITTING, rockshaft

1шт.

3/8 x 1 CRG BOLT

3шт.

3/8 LOCK WASHER

3шт.

13/32 x 1 x 16 GA WASHER

3шт.

7

512453R93

ROCKSHAFT

1шт.

1431BX

COLLAR CLAMP

COLLAR W/SET SCREW, lifting link

1шт.
