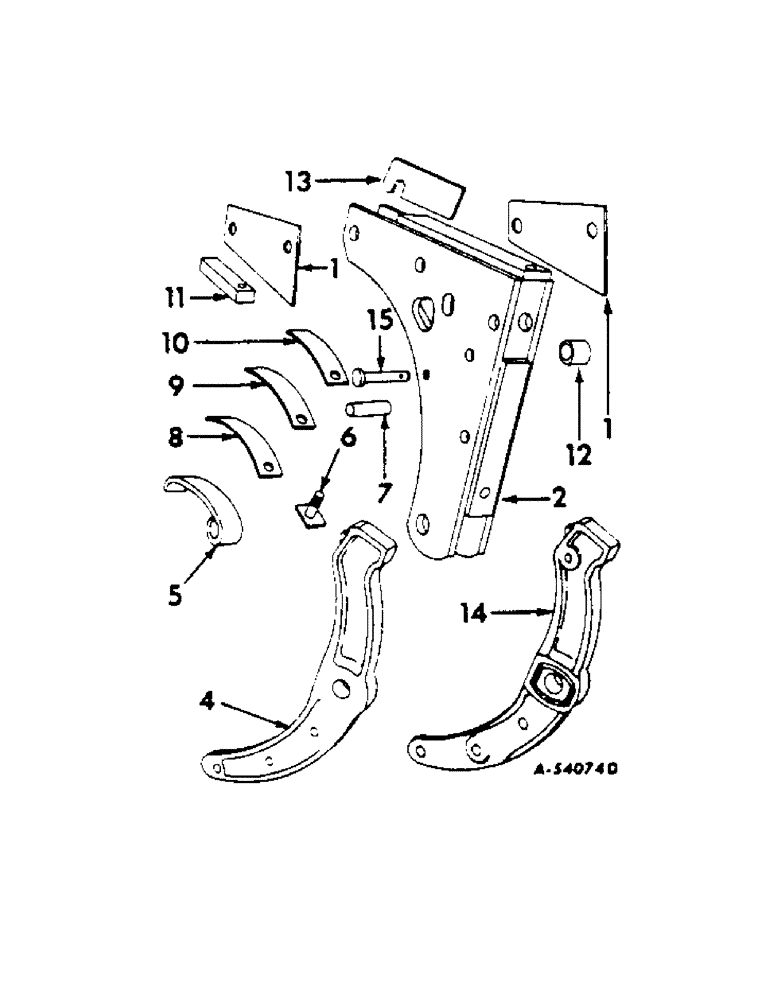

Запчасти Case IH 215 (R-03) - TRIP BEAM, ONE PER FURROW

1

526124R1

PLATE, cover

2шт.

2

479980R91

PLATE ASSY, side

1шт.

5/8 x 3-1/4 HEX-HD MACH BOLT

1шт.

522680R2

BOLT

1UNF x 3-3/8 HEX-HD MACH BOLT

1шт.

427651

SLOTTED NUT,1"-14, G5

1UNF SLT NUT

1шт.

5/8 NUT

1шт.

3/16 x 1-3/4 COT PIN

1шт.

5/8 LOCK WASHER

1шт.

3

(Not used this application)

1шт.

4

526120R1

BEAM

right trip

1шт.

5

465968R1

SPRING

beam trip, will work for 524356R1

1шт.

1/4 x 1-1/2 SELF-OPENING COT PIN

1шт.

111433R

3/4 x 2-13/16 DLD-STD-HD PIN

1шт.

6

526126R91

SCREW, adjusting

1шт.

124395

NUT, 1/2-20 C-Z hex, jam

1шт.

120371

NUT,1/2"-20, G5

1шт.

7

526118R1

ROLLER, trip

1шт.

8

524454R1

VALVE SPRING

SPRING, lower helper

1шт.

9

524453R1

VALVE SPRING

SPRING, middle helper

1шт.

10

524452R1

VALVE SPRING

SPRING, upper helper

1шт.

11

524884R1

BAR

SPACER, helper spring, 1/2 in. thick

1шт.

12

522432R2

SPACER

STOP, trip beam, also spacer

1шт.

13

525242R1

SHIM, frame rail

1шт.

14

478982R1

BEAM, plow, shear pin trip beam only, 1964 & up

1шт.

15

478995R1

PIN, trip beam shear, 1964 & up

1шт.

1/8 x 3/4 SELF-OPENING COT PIN

1шт.
