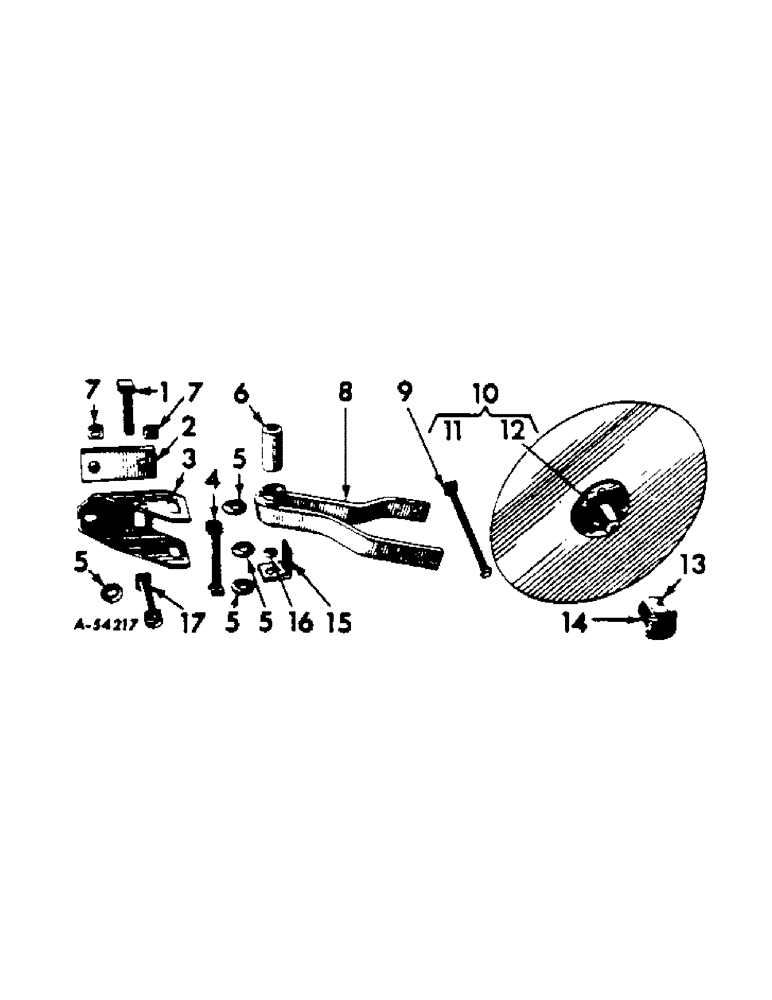

Запчасти Case IH 215 (R-03[A]) - ROLLING COLTER, NO. 1 RAIL

1

512061R1

BOLT, 5/8 x 3 adjusting

1шт.

2

512486R1

PLATE, colter

1шт.

3

515803R91

BRACKET W/BOLT, 512061R1 and eyebolt, 515796R11

1шт.

3

515797R1

BRACKET, colter

1шт.

5/8 x 4 MACH BOLT

1шт.

5/8 x 5 MACH BOLT

1шт.

5/8 LOCK WASHER

1шт.

4

(Not used this application)

1шт.

5

575810R1

WASHER

21/32 x 1-1/2 x 11 ga

4шт.

6

512325R2

BUSHING, colter yoke

1шт.

7

7466

WASHER

beam

2шт.

8

512910R92

YOKE

1шт.

9

512912R11

BOLT (SPREADER)

BOLT, 1/2 x 7-3/4 mach

2шт.

10

PO19620

BLADE

W/HUBS, notched, 16 in. dia

1шт.

10

PO19204

BLADE W/HUBS, notched, 18 in. dia

1шт.

10

PO10142

BLADE

W/HUBS, plain, 18 in. dia

1шт.

10

PO10401

HALF BLADE

BLADE W/HUBS, plain, 16 in. dia

1шт.

11

468724R1

BLADE

notched, 16 in. dia

1шт.

11

468726R1

COULTER

BLADE, notched, 18 in. dia

1шт.

11

468723R1

COULTER

BLADE, plain, 16 in. dia

1шт.

11

468725R1

COULTER

BLADE, plain, 18 in. dia

1шт.

12

211

HUB

2шт.

5/16 x 1-1/4 RD-HD RIVET

3шт.

13

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 str drive lub

2шт.

14

PO2194

BLOCK

CONE

2шт.

15

513863R1

STOP, colter

1шт.

16

515642R1

BUSHING, colter stop

1шт.

17

515796R11

EYEBOLT W/NUT, colter bracket

1шт.

5/8 SQ NUT

1шт.

21/32 x 1-1/2 x 11 GA WASHER

2шт.
