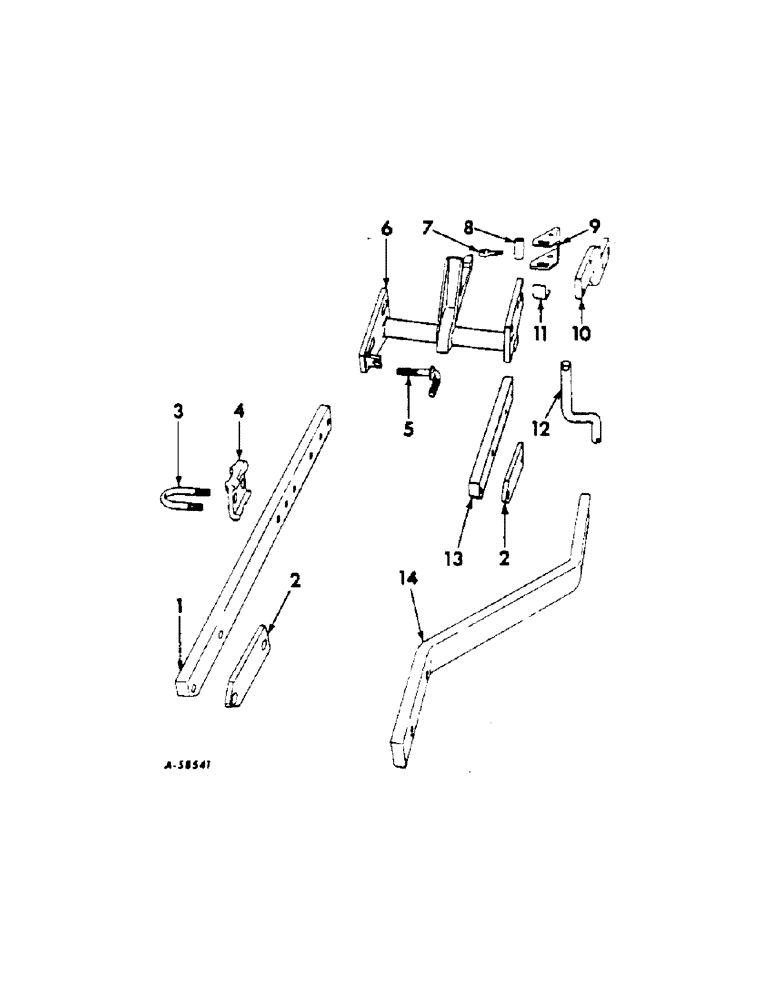

Запчасти Case IH 215 (R-02) - MAIN FRAME

1

461839R1

RAIL, frame no. 2

1шт.

3/4-16 NUT

2шт.

3/4-16 x 4-1/2 HEX-HD CAP SCREW

2шт.

3/4 LOCK WASHER

2шт.

2

526117R1

SPACER, frame rail

2шт.

3

524459R1

BOLT,U, 5/8" - 11

U-BOLT, colter clamp

1шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

4

524457R3

STAPLE

CLAMP, colter

1шт.

5

461837R11

LINK ASSY, adjusting

1шт.

218443

NUT

3/4 JAM NUT

2шт.

3/4 NUT

1шт.

3/4 LOCK WASHER

1шт.

6

461832R91

BAR ASSY, cross, 12 in.

1шт.

6

461831R91

BAR ASSY, cross, 14 in.

1шт.

3/4 NUT

4шт.

3/4 x 2-1/2 HEX-HD CAP SCREW

2шт.

3/4 x 2-3/4 HEX-HD CAP SCREW

2шт.

3/4 LOCK WASHER

4шт.

13/16 x 1-1/2 x 11 GA WASHER

2шт.

7

520836R1

EYEBOLT

1шт.

5/8 NUT

1шт.

21/32 x 1-1/2 x 11 GA WASHER

1шт.

8

512325R2

BUSHING, colter yoke

1шт.

9

515797R1

BRACKET, colter

1шт.

5/8 x 2 CRG BOLT

1шт.

5/8 x 5 HEX-HD MACH BOLT

1шт.

5/8 x 3 SQ-HD MACH BOLT

1шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

10

461840R1

ARM, colter bracket

1шт.

5/8 NUT

2шт.

5/8 x 2-1/4 HEX-HD CAP SCREW

2шт.

5/8 LOCK WASHER

2шт.

11

520837R1

STOP, colter

1шт.

12

522434R1

STEM

SHANK, colter, no. 2 rail

1шт.

13

461838R1

RAIL, frame no. 1

1шт.

3/4-16 NUT

2шт.

3/4-16 x 4 HEX-HD CAP SCREW

2шт.

3/4-16 x 4-1/2 HEX-HD CAP SCREW

2шт.

3/4 LOCK WASHER

2шт.

14

526106R1

BRACE, spreader, 12 in.

1шт.

14

526107R1

BRACE, spreader, 14 in.

1шт.

526242R1

SHIM

frame rail

1шт.
