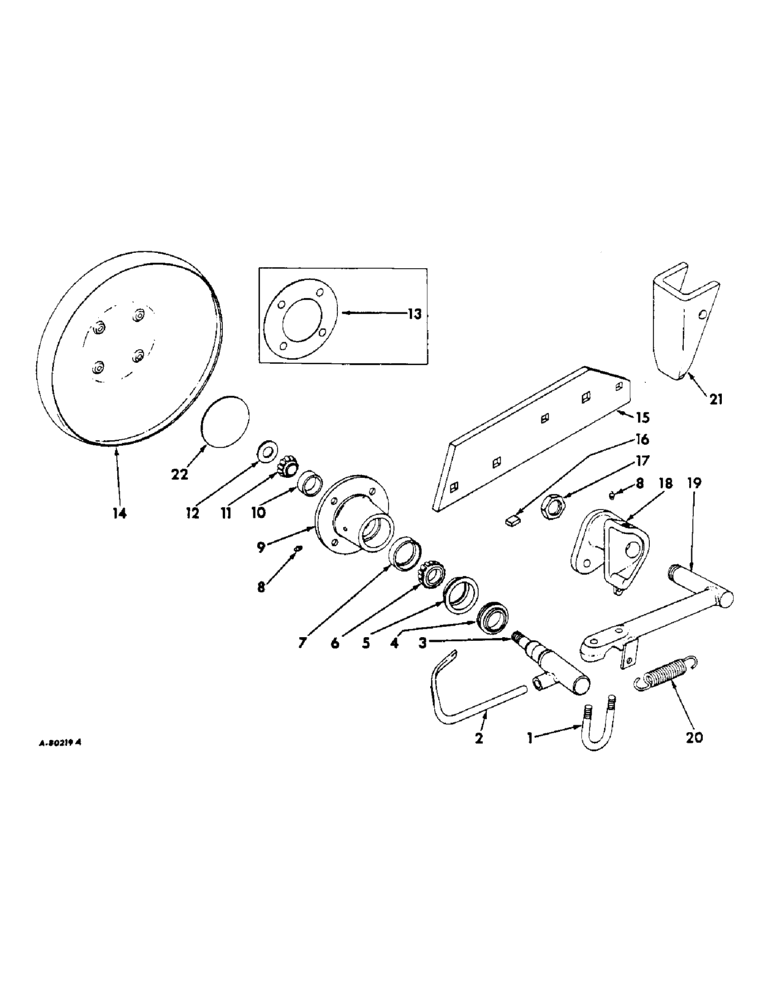

Запчасти Case IH 211 (P-17) - REAR FURROW STEEL WHEEL UNIT SPRING LOADED, 64 AND SINCE, PRODUCT GRAPHICS
№
Артикул
Название
Примечание
Количество
1
478221R1
BOLT,Plow, 1/2" - 13 x 3.0"
U-BOLT, axle support
1шт.
.
1/2 NUT
2шт.
.
1/2 LOCK WASHER
2шт.
2
478223R1
KNIFE
BLADE, scraper
1шт.
3
478216R91
SPINDLE
ASSY
1шт.
.
1/2 NUT
1шт.
.
69442D
NUT
3/4UNF SLT HEX JAM NUT
1шт.
.
5/32 x 1-1/4 COT PIN
1шт.
.
85-15012
SET SCREW,Sq Hd, 1/2"-13 x 3/4"
1/2 x 3/4 SQ-HD CUP-PT SET SCREW
1шт.
4
472221R91
SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk
oil
1шт.
5
472222R1
SLEEVE
oil seal
1шт.
7
651817R1GV
BEARING CUP
Value, Bearing Cup
1шт.
8
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
FITTING, 1/4UNF str lub
2шт.
9
478218R1
HUB
inner wheel
1шт.
.
7/16 x 1-1/4 NO. 3 PLOW BOLT
4шт.
.
7/16 NUT
4шт.
.
7/16 LOCK WASHER
4шт.
10
651814R1
BEARING CUP
BEARING, outer cup
1шт.
11
651815R91
BEARING ASSY,7.508" ID x 17.82" OD x 6"
BEARING ASSY, outer cone
1шт.
11
651815R91GV
BEARING CONE
Value, Cone Bearing
1шт.
12
615168R1
WASHER
25/32 x 1-1/2 x 11 ga
1шт.
13
478231R1
GASKET, wheel hub
1шт.
14
478725R1
WHEEL
rear furrow
1шт.
15
478227R11
LANDSIDE
ASSY, super chief bottom special
1шт.
.
478232R1
CARRIAGE BOLT,#3, 7/16" - 14 x 2 1/8", Gr 8
7/16 x 2 NO. 3 PLOW BOLT
2шт.
.
15631R1
BOLT,5/8"-11 x 2 1/4", G2
5/8 x 2-1/4 NO. 3 PLOW BOLT
2шт.
.
CP15226
PLOW BOLT,5/8" - 11 x 3", Gr 5
5/8 x 3 NO. 3 PLOW BOLT
1шт.
.
18526R1
LOCK NUT,7/16"-14, GB
7/16 ESNA STOP NUT
2шт.
.
5/8 NUT
3шт.
.
5/8 LOCK WASHER
2шт.
15
478228R11
LANDSIDE ASSY, plow chief bottom special
1шт.
.
478232R1
CARRIAGE BOLT,#3, 7/16" - 14 x 2 1/8", Gr 8
7/16 x 2 NO. 3 PLOW BOLT
2шт.
.
15631R1
BOLT,5/8"-11 x 2 1/4", G2
5/8 x 2-1/4 NO. 3 PLOW BOLT
2шт.
.
CP15226
PLOW BOLT,5/8" - 11 x 3", Gr 5
5/8 x 3 NO. 3 PLOW BOLT
1шт.
.
18526R1
LOCK NUT,7/16"-14, GB
7/16 ESNA STOP NUT
2шт.
.
5/8 NUT
3шт.
.
5/8 LOCK WASHER
2шт.
15
478230R11
LANDSIDE ASSY, gau, bottom special RH
1шт.
.
478233R1
3/8 x 1-3/4 NO. 3 PLOW BOLT
1шт.
.
478234R1
3/8 x 2 NO. 3 PLOW BOLT
1шт.
.
15631R1
BOLT,5/8"-11 x 2 1/4", G2
5/8 x 2-1/4 NO. 3 PLOW BOLT
2шт.
.
CP15226
PLOW BOLT,5/8" - 11 x 3", Gr 5
5/8 x 3 NO. 3 PLOW BOLT
1шт.
.
231-1446
NUT,3/8" - 16, Gr 5
NUT LOCK, , Esna 3/8"-16, GB
2шт.
.
5/8 NUT
1шт.
.
5/8 LOCK WASHER
2шт.
15
479121R11
LANDSIDE ASSY, KA and KSKA bottom special
1шт.
.
478233R1
3/8 x 1-3/4 NO. 3 PLOW BOLT
1шт.
.
478234R1
3/8 x 2 NO. 3 PLOW BOLT
1шт.
.
15631R1
BOLT,5/8"-11 x 2 1/4", G2
5/8 x 2-1/4 NO. 3 PLOW BOLT
2шт.
.
CP15226
PLOW BOLT,5/8" - 11 x 3", Gr 5
5/8 x 3 NO. 3 PLOW BOLT
1шт.
.
17044R1
LOCK NUT,3/8"-16, GB
3/8 ESNA STOP NUT
2шт.
.
5/8 NUT
3шт.
.
5/8 LOCK WASHER
2шт.
15
479123R11
LANDSIDE ASSY, ma bottom special
1шт.
.
478232R1
CARRIAGE BOLT,#3, 7/16" - 14 x 2 1/8", Gr 8
3/8 x 1-3/4 NO. 3 PLOW BOLT
2шт.
.
CP15226
PLOW BOLT,5/8" - 11 x 3", Gr 5
5/8 x 3 NO. 3 PLOW BOLT
1шт.
.
15631R1
BOLT,5/8"-11 x 2 1/4", G2
5/8 x 2-1/4 NO. 3 PLOW BOLT
2шт.
.
18526R1
LOCK NUT,7/16"-14, GB
7/16 ESNA STOP NUT
2шт.
.
5/8 NUT
3шт.
.
5/8 LOCK WASHER
2шт.
15
479122R11
LANDSIDE ASSY, sl bottom special
1шт.
.
478232R1
CARRIAGE BOLT,#3, 7/16" - 14 x 2 1/8", Gr 8
3/8 x 1-3/4 NO. 3 PLOW BOLT
2шт.
.
CP15226
PLOW BOLT,5/8" - 11 x 3", Gr 5
5/8 x 3 NO. 3 PLOW BOLT
1шт.
.
15631R1
BOLT,5/8"-11 x 2 1/4", G2
5/8 x 2-1/4 NO. 3 PLOW BOLT
2шт.
.
18526R1
LOCK NUT,7/16"-14, GB
7/16 ESNA STOP NUT
2шт.
.
5/8 NUT
3шт.
.
5/8 LOCK WASHER
2шт.
16
478220R1
BLOCK, rear axle pivot
1шт.
17
358876R1
LOCK NUT
drive shaft lock
1шт.
18
478214R1
PIVOT
rear axle
1шт.
.
114507
JAM NUT,Jam, 5/8"-11, G5
1шт.
.
478215R1
5/8 x 2-1/4 CAP SCREW
1шт.
19
478209R91
AXLE
ASSY, spring loaded furrow wheel
1шт.
20
478219R1
SPRING
rear furrow wheel
1шт.
21
478207R1
STOP
beam
1шт.
.
5/8 NUT
1шт.
.
5/8 x 4-1/2 CAP SCREW
1шт.
.
5/8 LOCK WASHER
1шт.
22
41-3044
PLUG,Exp, 2 3/4"
wheel hub expansion, 1964 & up
2шт.
.
481046R91
PACKAGE, product graphics, 211 plow
1шт.
.
481047R91
PACKAGE, product graphics, 311 plow
1шт.
.
1000840R3
DECAL
IH, on main frame
1шт.
.
2751264R1
PRODUCT GRAPHIC
INTERNATIONAL
1шт.
Выбрано товаров: 85
