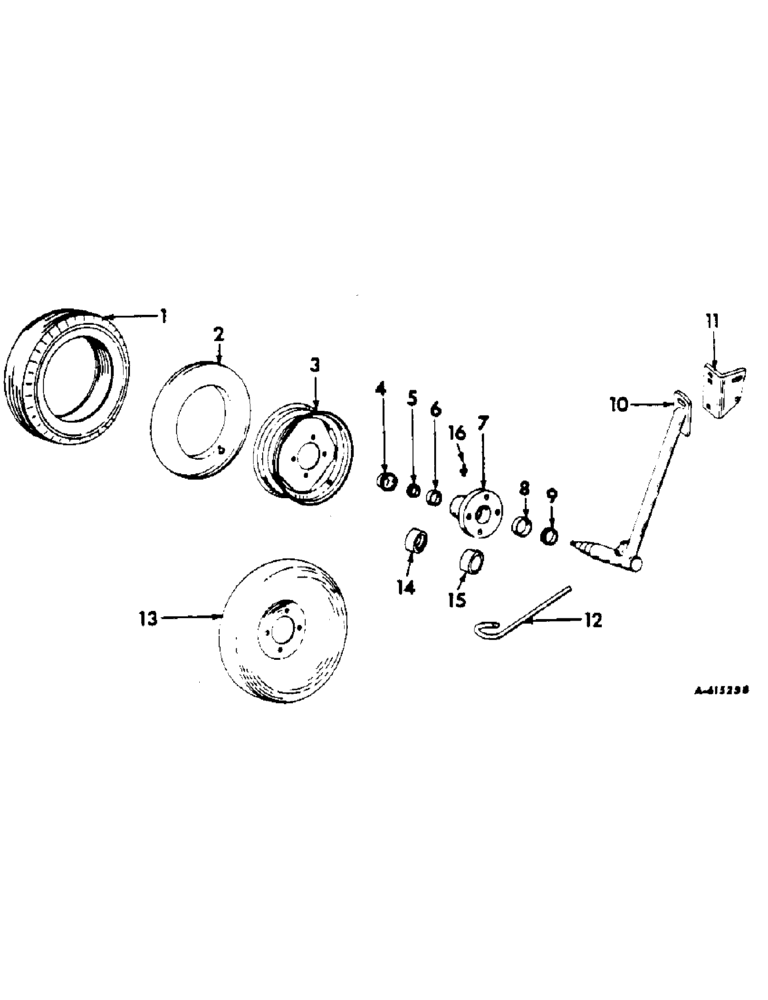

Запчасти Case IH 211 (P-14) - REAR FURROW WHEEL, RIGID BEAM, 1960 TO 1964

1

TIRE, 4 ply ribbed implement pneumatic, 4.00 x 12

1шт.

2

TUBE, pneumatic, 4.00 x 12

1шт.

3

525286R92

WHEEL ASSY

1шт.

4

651194R1

CAP

wheel

1шт.

5

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, outer cone

1шт.

5

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

6

651814R1

BEARING CUP

BEARING, outer cup

1шт.

7

461892R31

HUB W/BOLTS, cups and nuts, Serial Range: 1960-1962

1шт.

.

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

1/2-20UNF x 1-5/8 BOLT SPECIAL

4шт.

.

453770R1

WHEEL NUT

1/2-20UNF NUT, SPECIAL

4шт.

.

1/2 LOCK WASHER

4шт.

7

472220R11

HUB

W/SET SCREW, 1963 & up

1шт.

.

1/2NF x 1 HEX-HD CAP SCREW

4шт.

.

1/2 LOCK WASHER

4шт.

8

651817R1

BEARING CUP

BEARING, inner cup

1шт.

8

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

9

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL, inner cone, 1960 to 1962

1шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, inner cone, 1963 & up

1шт.

10

467479R91

AXLE ASSY, rear, pneumatic tire, without set collar, Serial Range: 1961-1962

1шт.

10

472630R91

AXLE ASSY, rear, pneumatic tire, without set collar, 1963 & up

1шт.

10

462863R91

AXLE ASSY, rear, without set collar

1шт.

.

524899R1

5/8 x 1-3/4 CRG BOLT

1шт.

.

524900R1

5/8 x 2 CRG BOLT

1шт.

.

5/8 NUT

2шт.

.

69442D

NUT

3/4-16UNF SLT NUT

1шт.

.

1/8 x 1-1/4 COT PIN

1шт.

.

5/8 LOCK WASHER

2шт.

.

575813R1

WASHER

25/32 x 1-1/4 x 11 GA WASHER

1шт.

10

467480R91

AXLE ASSY, rear, with set collar, LH, Serial Range: 1961-1962

1шт.

10

472622R91

AXLE ASSY, rear, with set collar, LH, 1963 & up

1шт.

10

467481R91

AXLE ASSY, rear, with set collar, steel tire, RH, Serial Range: 1961-1962

1шт.

10

472623R91

AXLE ASSY, rear, steel tire, with set collar, RH, 1963 & up

1шт.

10

462861R91

AXLE ASSY, rear, with set collar

1шт.

.

524899R1

5/8 x 1-3/4 CRG BOLT

1шт.

.

524900R1

5/8 x 2 CRG BOLT

1шт.

.

5/8 NUT

2шт.

.

69442D

NUT

3/4-16UNF SLT NUT

1шт.

.

1/8 x 1-1/4 COT PIN

1шт.

.

102894

SET SCREW

3/8 x 3/4 CUP-PT SQ-HD SET SCREW

1шт.

.

5/8 LOCK WASHER

2шт.

.

472634R1

WASHER

25/32 x 1-3/4 x 11 GA WASHER

1шт.

11

524501R1

BRACKET, axle

1шт.

.

5/8 x 3-3/4 CAP SCREW

1шт.

.

5/8 NUT

2шт.

.

114507

JAM NUT,Jam, 5/8"-11, G5

1шт.

.

NLS

NO LONGER SERVICED

5/8 x 3 OV-PT SQ-HD SET SCREW

1шт.

.

5/8 LOCK WASHER

2шт.

.

21/32 x 1-1/4 x 11 GA WASHER

1шт.

12

523009R1

SCRAPER

1шт.

13

459361R1

WHEEL

1шт.

14

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil, 1963 & up

1шт.

15

472633R1

BUSHING

SLEEVE, oil seal wear, 1963 & up

1шт.

16

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 str lub, 1963 & up

1шт.
