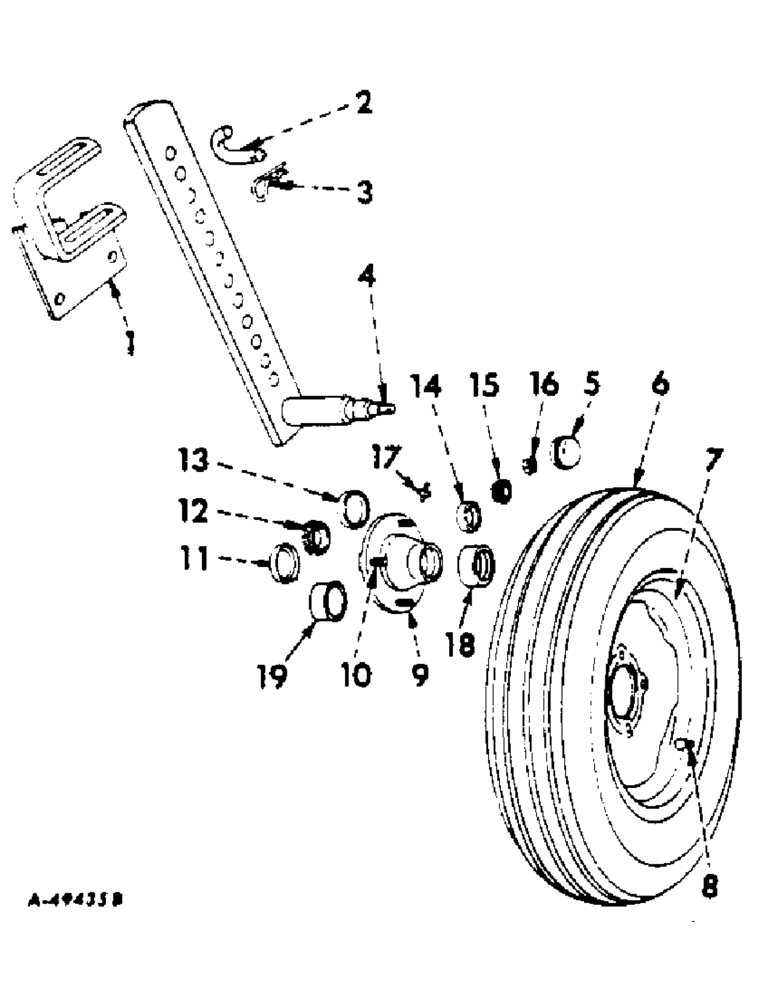

Запчасти Case IH 211 (P-12) - GAUGE WHEEL, 1961 UP

1

524861R11

BRACKET

1шт.

.

5/8 NUT

2шт.

.

5/8 x 2-1/2 CAP SCREW

2шт.

.

5/8 LOCK WASHER

2шт.

2

520620R1

AXLE PIN

RETAINING PIN

1шт.

3

520175R1

CLIP

QUICK-ATTACHABLE COT PIN

1шт.

4

523520R91

STANDARD W/SPINDLE, Serial Range: 1958-1961

1шт.

4

467473R92

STANDARD W/SPINDLE, 1961 & up

1шт.

.

1/8 x 1-1/4 COT PIN

1шт.

.

472634R1

WASHER

25/32 x 1-3/4 x 11 GA WASHER

1шт.

5

651194R1

CAP

hub

1шт.

6

TIRE, ribbed implement pneumatic, 6.70 x 15

1шт.

7

455169R92

WHEEL

RIM, 15 x 4-1/2 KB wheel

1шт.

8

TUBE, pneumatic, 6.70 x 15

1шт.

9

652381R91

HUB

W/BOLTS, cups and nuts, Serial Range: 1958-1961

1шт.

.

1/2NF x 1 HEX-HD CAP SCREW

4шт.

.

1/2 LOCK WASHER

4шт.

9

461892R31

HUB W/BOLTS, cups and nuts, Serial Range: 1961-1962

1шт.

9

472220R11

HUB

W/SET SCREW, 1963 & up

1шт.

10

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

1/2 UNF x 1-5/8 special, Serial Range: 1958-1962

4шт.

.

453770R1

WHEEL NUT

1/2UNF CONICAL NUT

4шт.

11

652769R91

OIL SEAL

wheel hub oil

1шт.

12

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL INNER CONE, 1962 to 1962

1шт.

12

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, inner cone, 1963 & up

1шт.

13

651817R1

BEARING CUP

BEARING, inner cup

1шт.

13

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

14

651814R1

BEARING CUP

BEARING, outer cup

1шт.

15

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, outer cone

1шт.

15

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

16

69442D

NUT

3/4 unf slt

1шт.

17

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 str lub, 1963 & up

1шт.

18

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil, 1963 & up

1шт.

19

472222R1

SLEEVE

oil seal wear, 1963 & up

1шт.
