Запчасти Case IH 211 (P-09) - DISK COLTERS JOINTERS, RIGID STANDARD, ONE PER FURROW

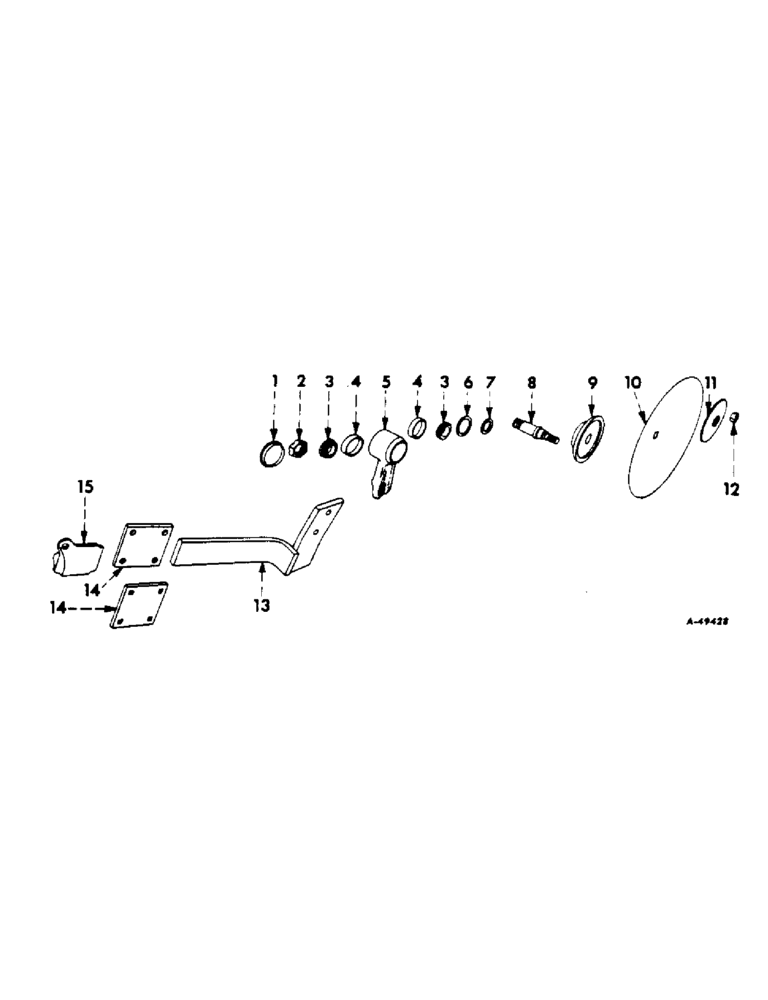

Схема запчастей Case IH 211 - (P-09) - DISK COLTERS JOINTERS, RIGID STANDARD, ONE PER FURROW
3
14
11
1
8
6
14
7
4
2
15
9
13
3
5
10
4
12

Артикул

Название

Примечание

Количество

1

518842R1

CAP

bearing housing

1шт.

2

519250R1

SLOTTED NUT

1-1/4UNF

1шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, cone

2шт.

4

651817R1

BEARING CUP

BEARING, cup

2шт.

4

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

5

521779R1

HOUSING, bearing

1шт.

6

518820R91

OIL SEAL

bearing oil

1шт.

7

518654R1

SPACER

oil seal

1шт.

8

521780R1

SPINDLE

1шт.

.

1/8 x 1-3/4 cot pin

2шт.

9

519084R1

HUB

BEARING, spindle

1шт.

10

519093R1

DISC

DISK, 16 in.

1шт.

11

519086R2

SUPPORT

disk

1шт.

12

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8UNF

1шт.

13

523969R12

STANDARD

1шт.

.

1/2 NUT

2шт.

.

1/2 x 2-1/4 MACH BOLT

2шт.

.

1/2 LOCK WASHER

2шт.

14

523971R1

PLATE, clamp, 2 for 1 x 2-3/4 in. rail

1шт.

14

524584R1

PLATE, clamp, 2 for 1 x 3 in. rail

1шт.

.

1/2 NUT

4шт.

.

1/2 x 4-1/4 CAP SCREW

4шт.

15

524583R1

BLOCK, adjusting

1шт.

Выбрано товаров: 23
