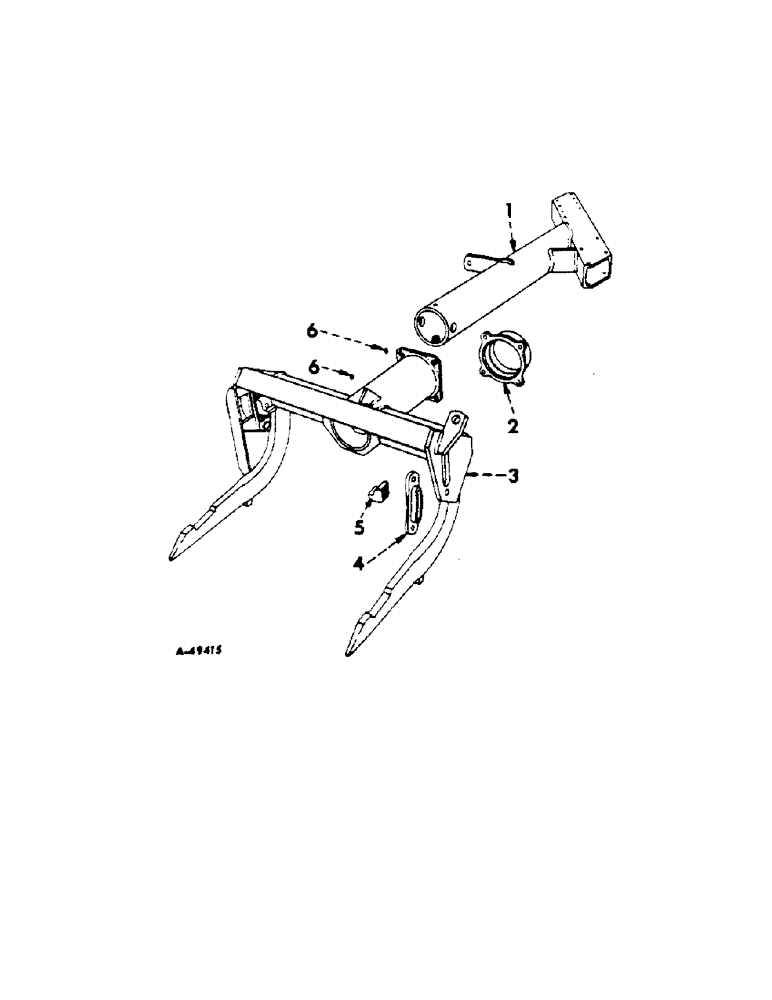

Запчасти Case IH 210 (N-02) - ROLL-OVER AND CARRIER FRAMES

1

524352R91

FRAME, roll-over

1шт.

5/8 NUT

8шт.

5/8 x 6 CAP SCREW

8шт.

5/8 LOCK WASHER

8шт.

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

21/32 x 1-1/4 SQ-HOLE x 3/16 WASHER

1шт.

2

524218R1

BEARING, roll-over rear

1шт.

5/8 NUT

4шт.

5/8 x 1-3/4 CAP SCREW

4шт.

5/8 LOCK WASHER

4шт.

3

524251R91

FRAME, carrier

1шт.

4

524215R1

BRACKET, stop bar adjusting block

1шт.

5/8 NUT

2шт.

5/8 x 1-3/4 CAP SCREW

2шт.

5/8 LOCK WASHER

2шт.

5

524216R1

BLOCK, stop bar adjusting

1шт.

5/8 x 2-3/4 CAP SCREW

1шт.

5/8 LOCK WASHER

1шт.

21/32 x 1-1/4 x 11 GA WASHER

1шт.

6

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive lub, in carrier frame tube & roll-over bearing rear

1шт.
