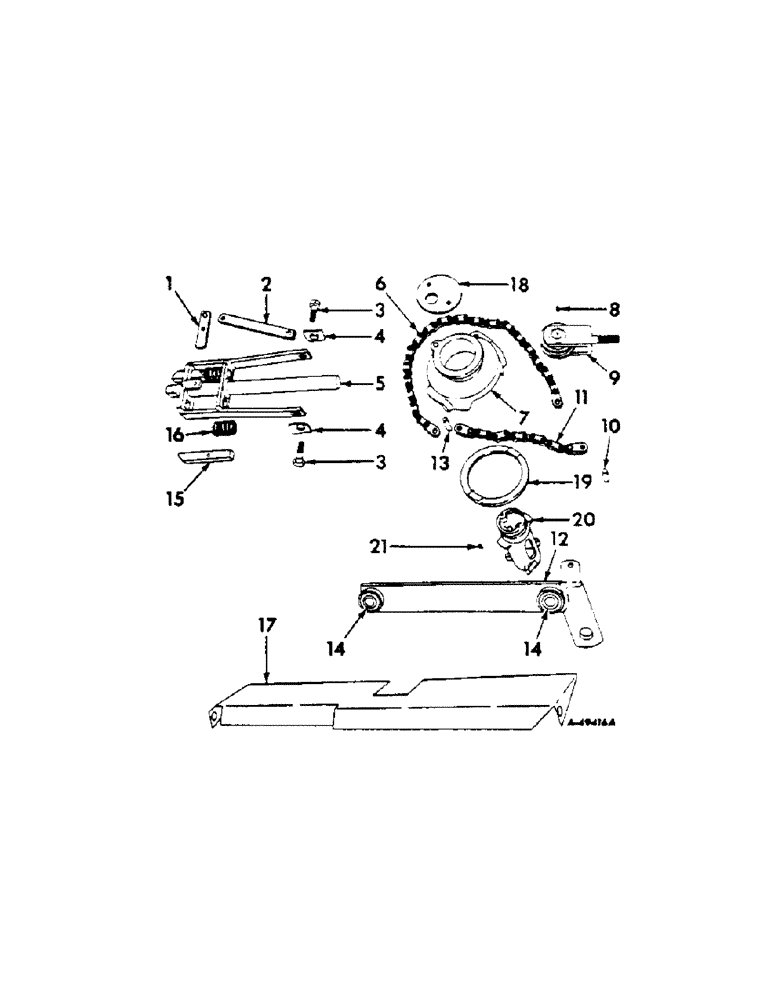

Запчасти Case IH 210 (N-02[A]) - ROLL-OVER BEARING, LATCH BRACKET AND CHAIN AND CHAIN GUIDE BAR

1

524235R11

ARM, latch drive

1шт.

1/8 x 3/4 SELF-OPENING COT PIN

1шт.

577247R1

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

1шт.

2

524234R11

LINK, latch drive

1шт.

1/8 x 3/4 SELF-OPENING COT PIN

1шт.

3

523911R1

SCREW, 5/8 x 1-3/4 conical-hd cap, roll-over latch bracket to roll-over frame

2шт.

4

524272R1

CLIP, latch bolt

2шт.

5

524224R91

BRACKET, roll-over latch

1шт.

6

524188R91

CHAIN, long roll-over

1шт.

7

461845R1

BEARING, roll-over front

1шт.

8

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 str drive lub, in chain roller pivot pin

1шт.

9

524228R91

BRACKET, chain roller mounting

1шт.

3/4 JAM NUT

2шт.

10

524191R1

PIN, chain connecting, two-hole

1шт.

1/8 x 3/4 SELF-OPENING COT PIN

2шт.

11

524189R91

CHAIN, short roll-over

1шт.

12

526754R91

BAR, chain guide

1шт.

12

524230R21

BAR, chain guide order bar assy 526754R91 and dirt shield, 525975R2

1шт.

13

524192R1

PIN, chain connecting

1шт.

17084R1

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, 1/8" x 1 1/4", Slotted

1шт.

14

524190R1

BEARING, chain guide bar ball

2шт.

15

524275R1

END PLATE

LATCH

2шт.

577247R1

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

2шт.

16

961016R1

SPRING, latch

2шт.

17

525976R2

SHIELD, dirt

1шт.

18

461847R1

WASHER, roll-over bearing support

1шт.

19

461846R1

RING, roll-over bearing

1шт.

20

461844R1

SUPPORT, roll-over bearing

1шт.

5/16 x 3/4 HEX-HD CAP SCREW

2шт.

5/16 LOCK WASHER

2шт.

21

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 str thd lub, in roll-over bearing support

1шт.
