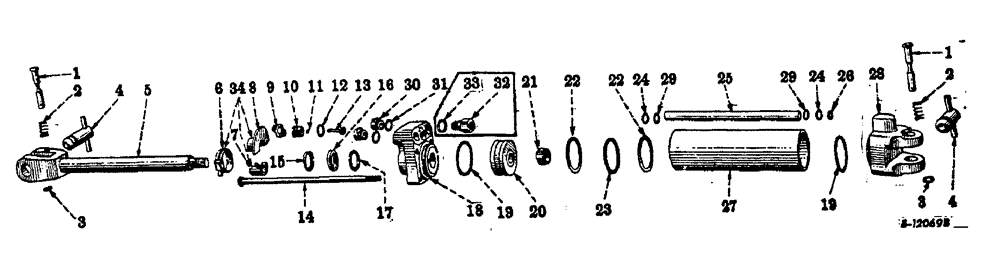

Запчасти Case IH 210 (N-14) - HYDRAULIC CYLINDER & FITTING, FOR TRACTORS WITH 7/8-14 STR THREAD HYDRAULIC OUTLETS

371291R97

CYLINDER

ASSY, hydraulic, 2-1/2 x 8

1шт.

1

352369R2

PIN

lock

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

2

352370R1

SPRING

lock pin

2шт.

3

354837R1

WASHER

lock pin

2шт.

4

352231R11

PIN

ASSY, pivot

2шт.

5

361005R11

PISTON ROD

ROD ASSY, piston

1шт.

Kit to repair the thread on clevis for this rod is 530708r91 JHW cam 6-03

1шт.

6

361085R91

CLAMP

stroke limit collar

1шт.

7

360372R1

COLLAR

stroke limit plain half

1шт.

8

361010R1

COLLAR

stroke limit flanged half

1шт.

9

361009R1

PLATE

limit stop valve retainer

1шт.

172792

SCREW, 1/4-20 x 9/16 hex-hd cap

2шт.

10

361007R11

RETAINER

ASSY

1шт.

11

360599R1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

3/16 x 5/16 x 1/16

1шт.

12

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

13

361006R11

VALVE

ASSY

1шт.

14

384750R1

BOLT,Hex, 7/16" - 14 x 12 1/8"

cylinder tie

4шт.

15

354049R1

RETAINER

dust seal

1шт.

16

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, dust piston rod

1шт.

17

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

O-RING, 1-1/8 x 1-9/16 x 7/32

1шт.

18

371295R21

HEAD, cylinder front, w/balls & two plugs, 365101R1

1шт.

19

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2-1/4 x 2-1/2 x 1/8

2шт.

20

361000R1

HEAD

piston

1шт.

21

385020R1

NUT

3/4-16 ESNA stop

1шт.

22

361013R1

BACK-UP RING,59.08mm ID x 63.75mm OD x 2.39mm Thk

piston head back-up

2шт.

23

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

2-1/8 x 2-1/2 x 3/16

1шт.

24

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32

2шт.

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

back-up

1шт.

25

372211R11

TUBE W/TWO WASHER, 354835R1, cylinder return

1шт.

36

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

356817R1

TUBE,2.505" ID, 2.812" OD, 10.26" Length

cylinder

1шт.

28

371296R3

HEAD

rear cylinder

1шт.

29

354835R1

WASHER

cylinder return tube

2шт.

30

9410359

PLUG

front cylinder head

2шт.

31

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

41/64 x 13/16 x 5/64

1шт.

32

372852R1

ADAPTER

cylinder hose, used w/head 371295R1 (NSS)

1шт.

33

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

used w/head 371295R1 (NSS)

1шт.

34

375426R91

COLLAR

ASSY, stroke limit

1шт.

363137R92

SEAL KIT

PACKAGE, o-ring service, consist of, (1) ring 350429R1, (1) ring 350657R1, (2) ring 377952R1, (1) ring 354047R1, (2) ring 293726R1 (1) ring 360599R1, (1) seal 354048R1, (2) washer 361013R1, (2) washer 371218R2

1шт.

Parts for 460 and 560 series tractors with remote control attachment consists of all parts marked unit A

1шт.

Parts for 460 and 560 series tractors without remote control attachment consists of all parts marked unit B

1шт.

395149R1

QUICK MALE COUPLING

COUPLING ASSY, self-sealing outer, will work for 388990R91, for units A & B

1шт.

526204R91

HOSE

ASSY, 1/2 ID x 36 in. long, 2 for unit A

1шт.

526223R91

HOSE ASSY, 1/2 id x 84 in. long, 2 for unit B

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 4 for units A & B

1шт.

526251R91

UNION

cyl hose restricting adapting, units A & B

1шт.

371477R91

COUPLING

self-sealing outer, tractor outlet

2шт.
