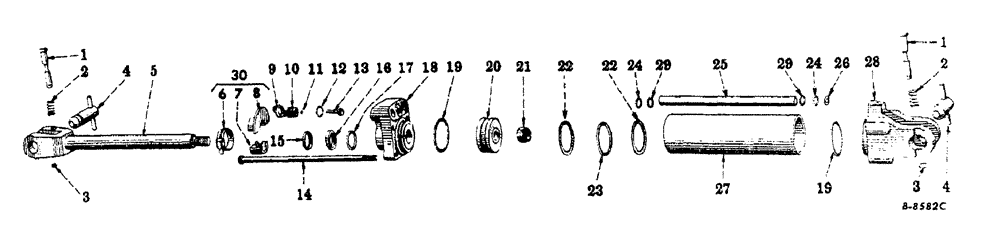

Запчасти Case IH 210 (N-12) - HYDRAULIC CYLINDER, FOR TRACTORS WITH 1/2 IN. PIPE THREAD HYDRAULIC OUTLETS

360994R91

CYLINDER

ASSY, hydraulic, 2-1/2 x 8

1шт.

1

352369R2

PIN

lock

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

2

352370R1

SPRING

lock pin

2шт.

3

354837R1

WASHER

lock pin

2шт.

4

352231R11

PIN

ASSY, cylinder pivot

2шт.

5

361005R12

NO LONGER SERVICED

ROD ASSY, piston

1шт.

6

361085R91

CLAMP

stroke limit collar

1шт.

7

360372R1

COLLAR

stroke limit plain half

1шт.

8

361010R1

COLLAR

stroke limit flanged half

1шт.

9

361009R1

PLATE

limit stop valve retainer

1шт.

172792

SCREW, 1/4-20 x 9/16 hex-hd cap

2шт.

10

361007R11

RETAINER

W/O-RING, limit stop valve

1шт.

11

360599R1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

3/16 x 5/16 x 1/16

1шт.

12

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

13

3610096R11

VALVE W/O-RING, limit stop

1шт.

14

384750R1

BOLT,Hex, 7/16" - 14 x 12 1/8"

tie

4шт.

15

354049R1

RETAINER

piston rod dust seal

1шт.

16

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, piston rod dust

1шт.

17

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

O-RING, 1-1/8 x 1-9/16 x 7/32

1шт.

18

367613R11

HEAD W/PLUGS, cylinder

1шт.

362355R3

PLUG

1-4/18 sq-soc-hd pipe

2шт.

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG, 1/2-14 sq-soc-hd pipe

2шт.

19

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2-1/4 x 2-1/2 x 1/8

2шт.

20

361000R1

HEAD

piston

1шт.

21

385020R1

NUT

3/4-16 piston rod lock

1шт.

22

361013R1

BACK-UP RING,59.08mm ID x 63.75mm OD x 2.39mm Thk

piston head back-up

2шт.

23

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

2-1/8 x 2-1/2 x 3/16

1шт.

24

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32

2шт.

25

354834R21

TUBE, cylinder return

1шт.

26

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

356817R1

TUBE,2.505" ID, 2.812" OD, 10.26" Length

cylinder

1шт.

28

360999R3

HEAD

cylinder

1шт.

29

354835R1

WASHER

return tube

2шт.

30

375426R91

COLLAR

ASSY, stroke limit

1шт.

392503R1

PIN

SCREW, thumb

1шт.

363137R92

SEAL KIT

PACKAGE, o-ring service, consists of ref nos. 11, 12, 16, 17, 19, 22, 23 & 24

1шт.

Parts for Farmall 300, 350, 400 and 450 tractors not equipped with remote cylinder breakaway attachment consists of all parts unit A

1шт.

Parts for International 350 and 460 tractors not equipped with remote cylinder breakaway attachment consists of all parts mared unit B

1шт.

Parts for Farmall 300, 350, 400 and 450 tractors with remote cylinder breakaway attachment consists of all parts marked unit C

1шт.

Parts for International 350 and 460 tractors with remote cylinder breakaway attachment consists of all parts marked unit D

1шт.

444363

COUPLING, automotive 1/4 to 1/2 reducing, 2 for units A & B

1шт.

444351

SUPPORT

COUPLING, automotive 1/2 x 1-1/2 pipe, unit C

1шт.

454093

ELBOW, 1/2 45 deg street, unit C

1шт.

454105

ELBOW, 1/2 90 deg stree, 2 for unit D

1шт.

362916R1

ELBOW, 1/2 90 deg male, 2 for unit B

1шт.

353110R91

HOSE

ASSY, 1/2 ID x 25 in. long, unit C

1шт.

363716R91

HOSE ASSY, 1/2 ID x 29-1/2 in. long, unit C

1шт.

366831R91

HOSE

ASSY, 1/2 ID x 33 in. long, 2 for unit D

1шт.

363133R91

HOSE ASSY, 1/2 ID x 66 in. long, 2 for unit B

1шт.

365638R91

HOSE ASSY, 1/2 ID x 90 in. long, 2 for unit A

1шт.

443982

FITTING,1/2"-14 NPTF, Brass

NIPPLE, 1/2 x 1-13/16 auto pipe, unit B

1шт.

444287

NIPPLE, 1/4 x 1-3/8 auto pipe, 2 for units A & B

1шт.

357965R2

NUT

union, 2 for units A & B

1шт.

524187R91

ADAPTER

UNION, cyl hose restricting adapting, units A, B, C & D

1шт.

353218R91

COUPLING

self-sealing outer, tractor outlet

1шт.

372413R91

CONNECTOR, ELEC

FITTING, adapting

1шт.

363462R1

NUT, coupling

1шт.
