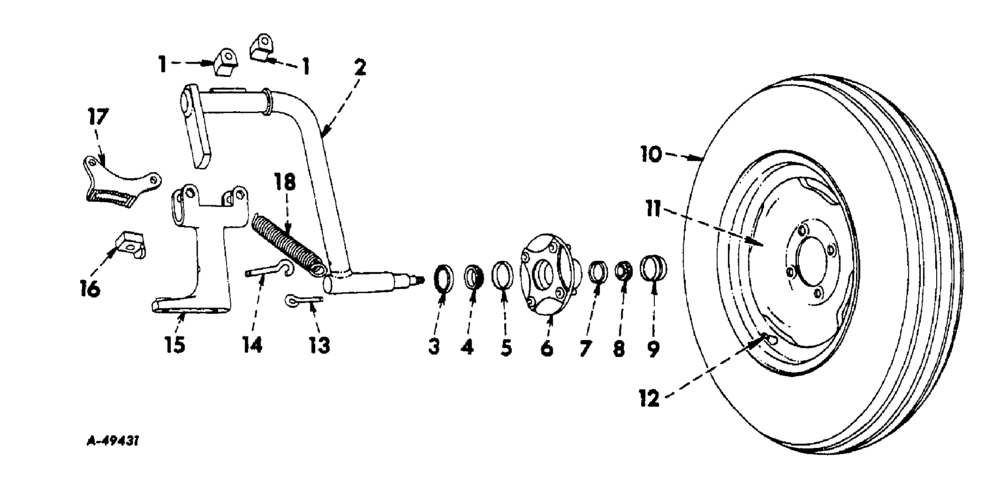

Запчасти Case IH 210 (N-09) - GAUGE WHEEL

1

524281R1

BLOCK, axle retaining

2шт.

2

524346R11

AXLE, gauge wheel

1шт.

.

5/8UNF SLT NUT

1шт.

.

3/16 x 1-1/4 COT PIN

1шт.

.

5/8 x 1-3/8 x .109 WASHER

1шт.

3

652769R91

OIL SEAL

wheel hub oil

1шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, inner cone

1шт.

5

651817R1

BEARING CUP

BEARING, inner cup

1шт.

5

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

6

652381R91

HUB

W/BOLTS, cups and nuts

1шт.

.

6601025R1

1/2UNF x 1-1/2 SPECIAL BOLT

4шт.

.

453770R1

WHEEL NUT

1/2UNF CONICAL NUT

4шт.

7

651814R1

BEARING CUP

BEARING, outer cup

1шт.

8

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, outer cone

1шт.

8

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

9

651194R1

CAP

wheel hub

1шт.

10

TIRE, pneumatic, 6.70 x 15

1шт.

11

455169R92

WHEEL

RIM, wheel

1шт.

12

TUBE, pneumatic, 6.70 x 15

1шт.

13

524286R1

SWIVEL, gauge wheel axle spring

1шт.

.

3/16 x 3/4 SELF-OPENING COT PIN

1шт.

14

524287R1

SWIVEL, gauge wheel attaching bracket spring

1шт.

.

3/16 x 1 SELF-OPENING COT PIN

1шт.

15

524285R1

BRACKET, axle mounting

1шт.

.

5/8 x 3 MACH BOLT

2шт.

.

3/4 x 2-1/4 CAP SCREW

3шт.

.

5/8 LOCK WASHER

2шт.

.

3/4 LOCK WASHER

3шт.

16

524282R1

BLOCK, depth adjusting

1шт.

.

3/4 x 2-1/4 CRG BOLT

1шт.

.

3/4 LOCK WASHER

1шт.

17

524283R1

BRACKET, left depth adjusting

1шт.

17

524284R1

BRACKET, right depth adjusting

1шт.

.

5/8 NUT

4шт.

.

5/8 x 2-1/2 CAP SCREW

4шт.

.

5/8 LOCK WASHER

4шт.

18

PO27

SPRING

axle stabilizing

1шт.
