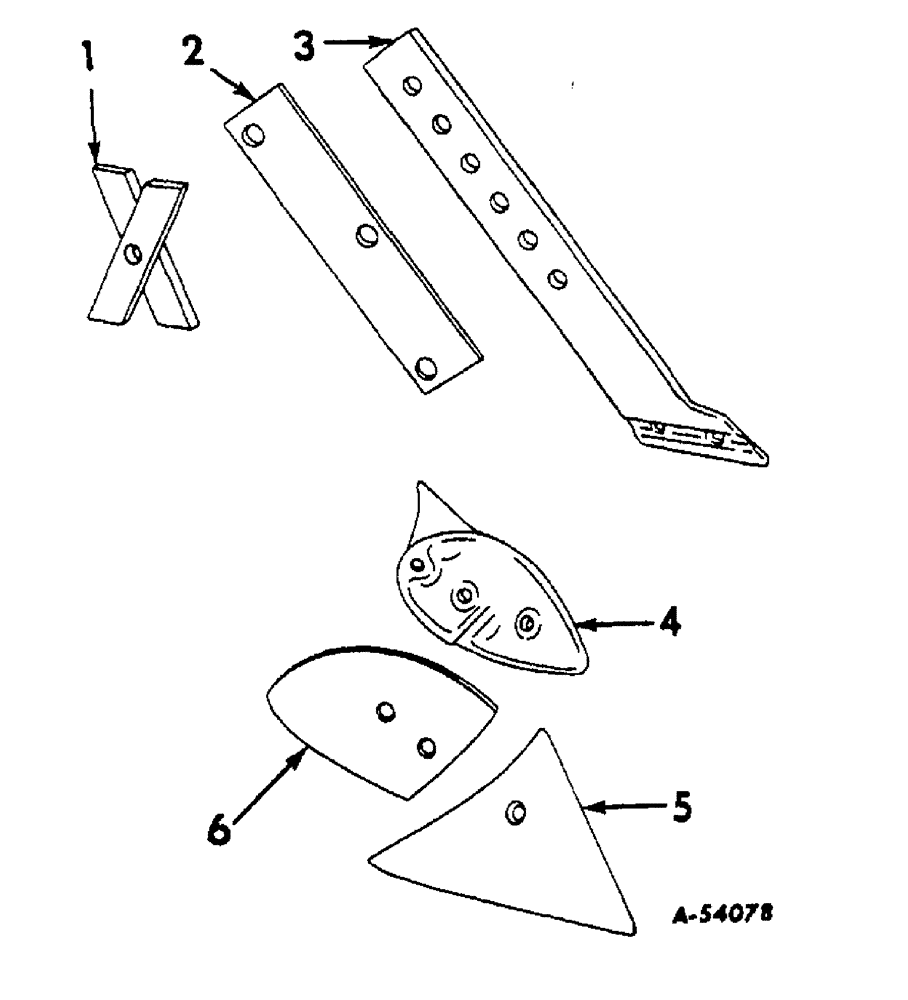

Запчасти Case IH 210 (N-06[A]) - STATIONARY JOINTER RIGHT

1

524719R91

SPACER

1шт.

2

524717R1

PLATE, attaching

1шт.

3

524716R1

SPARE PART SHANK, right

1шт.

3/8 x 1-1/4 CRG BOLT

2шт.

5/8 NUT

2шт.

5/8 x 3-1/2 CAP SCREW

1шт.

5/8 x 4-1/4 CAP SCREW

1шт.

5/8 LOCK WASHER

2шт.

4

PO1564

SPARE PART FROG

1шт.

5

PO2226

SPARE PART SHARE, right chilled

1шт.

5

PO20092X

BLADE

SHARE W/BOLT, right steel

1шт.

3/8 x 1-3/8 NO. 7 PLOW BOLT

1шт.

6

PO1186

SPARE PART MOLDBOARD, right chilled

1шт.

6

S7408X

SPARE PART MOLDBOARD W/BOLTS, right steel

1шт.

3/8 x 1-1/8 NO. 7 PLOW BOLT

1шт.
