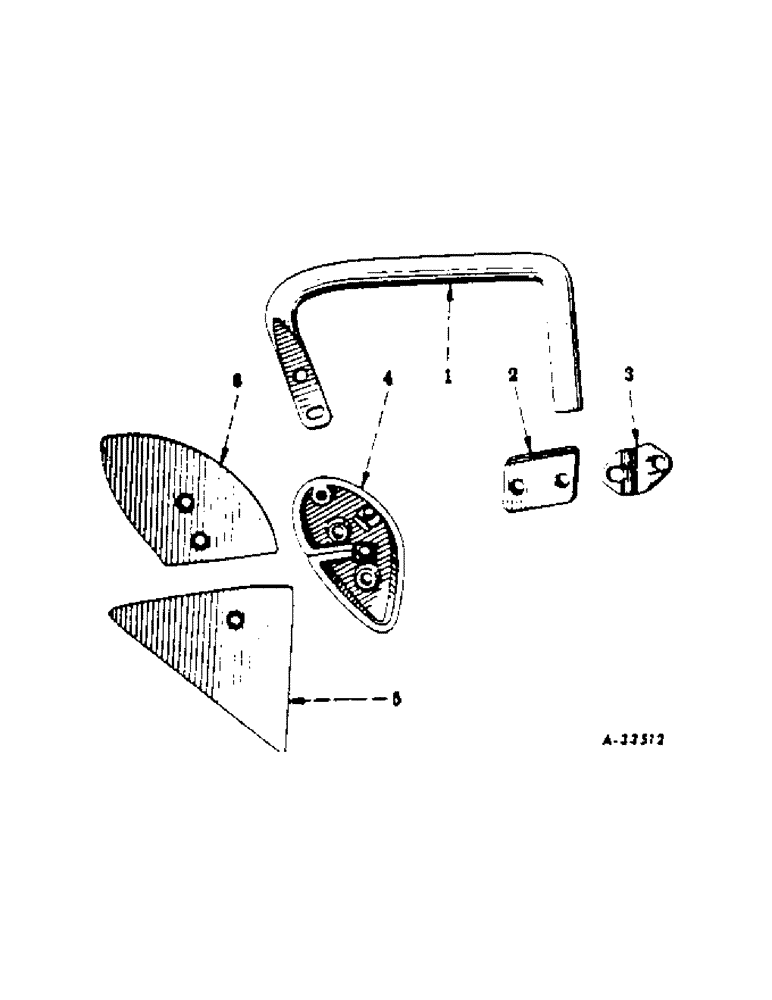

Запчасти Case IH 210 (N-05[A]) - JOINTER, TWO PIECE BLADE, ONE PER FURROW

1

524720R1

SHANK, left

1шт.

1

519344R1

SHANK, right

1шт.

3/8 x 1-1/4 SQ-HD MACH BOLT

1шт.

3/8 x 1-1/2 SQ-HD MACH BOLT

1шт.

Q1505

WASHER

13/32 x 1 x 16 GA WASHER

1шт.

3/8 NUT

2шт.

2

519343R1

BLOCK, jointer

1шт.

3

519342R1

CAP, jointer adjusting

1шт.

1/2 x 2-3/4 CRG BOLT

2шт.

1/2 NUT

2шт.

4

PO2427

FROG, left

1шт.

4

PO2426

FROG, right

1шт.

5

PO2475

SHARE, left chilled

1шт.

5

PO2226

SHARE, right chilled

1шт.

5

PO21805X

SHARE

W/BOLTS, left steel

1шт.

5

PO20092X

BLADE

SHARE W/BOLTS, right steel

1шт.

3/8 x 1-3/8 NO. 7 PLOW BOLT

2шт.

3/8 NUT

2шт.

6

PO1187

MOLDBOARD, left chilled

1шт.

6

PO1186

MOLDBOARD, right chilled

1шт.

6

S7409X

MOLDBOARD W/BOLTS, left steel

1шт.

6

S7408X

MOLDBOARD W/BOLTS, right steel

1шт.

3/8 x 1-1/8 NO. 7 PLOW BOLT

4шт.

3/8 NUT

4шт.
