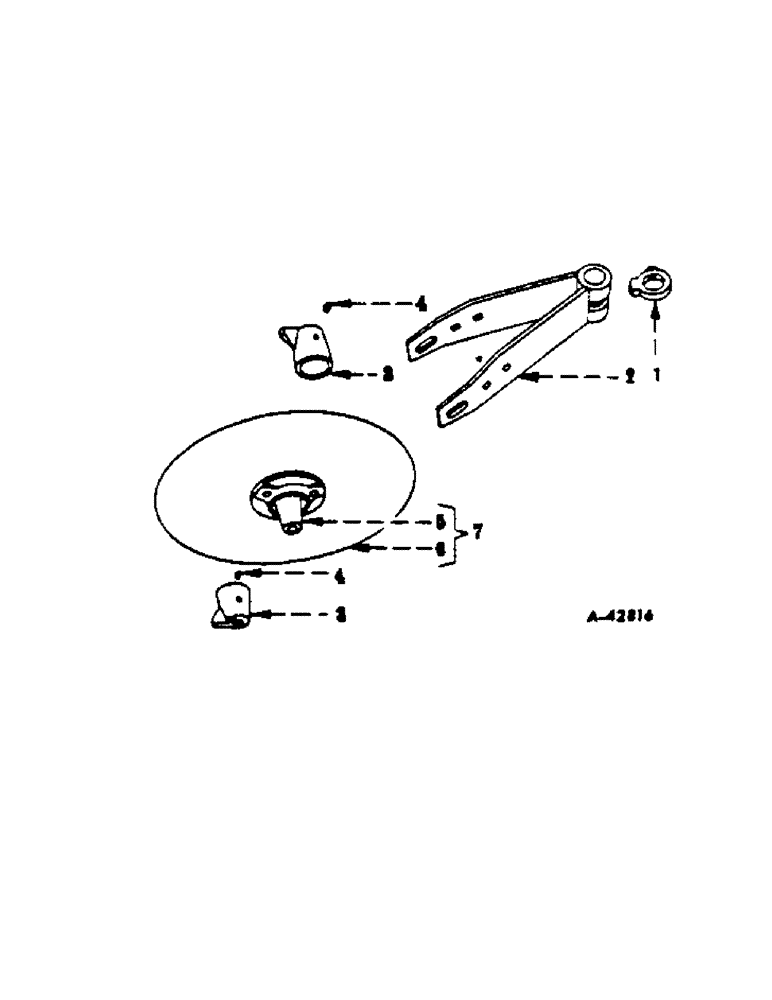

Запчасти Case IH 210 (N-04[B]) - ROLLING COLTERS, ONE PER FURROW

1

519345R21

COLLAR

W/SET SCREW, stop

1шт.

102907

SET SCREW,Sq Hd, 7/16"-14 x 1"

7/16 x 1 CUP-PT SQ-HD SET SCREW

1шт.

2

522252R93

YOKE

colter

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

1/2 NUT

1шт.

1/2 x 7-3/4 CAP SCREW

1шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 GA WASHER

2шт.

3

521157R1

BUSHING,13.49mm ID x 52.39mm OD x 69.85mm L

left

1шт.

3

521158R1

BUSHING

right

1шт.

4

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 str drive lub

2шт.

5

468727R1

HUB

2шт.

5/16 x 1-1/2 RH-HD RIVET

6шт.

6

PO19619

BLADE, notched, 16 in. dia

1шт.

6

PO15788

BLADE, notched, 18 in. dia

1шт.

6

PO11601

BLADE

plain, 16 in. dia

1шт.

6

523025R2

HALF BLADE

BLADE, plain, 18 in. dia

1шт.

7

PO20280

BLADE W/HUBS, notched, 16 in. dia

1шт.

7

PO15789

BLADE W/HUBS, notched, 18 in. dia

1шт.

7

PO20274

BLADE W/HUBS, plain, 16 in. dia

1шт.

7

PO14912

BLADE

W/HUBS, plain, 18 in. dia

1шт.
