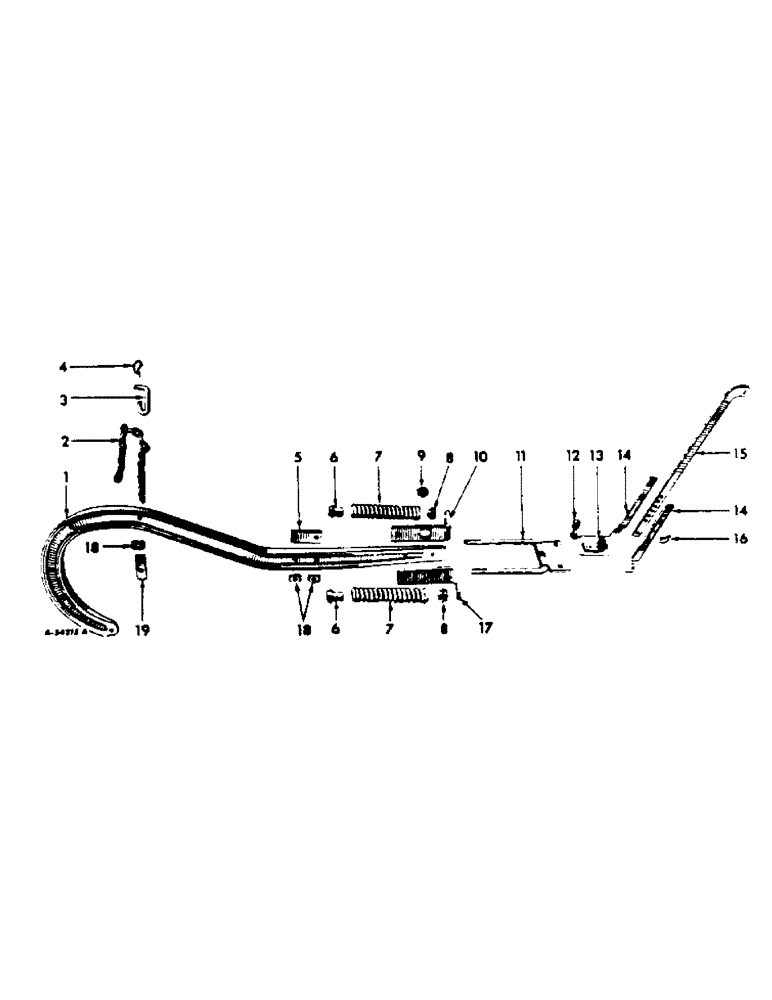

Запчасти Case IH 193 (K-2) - BEAM AND ADJUSTING LINK

1

512504R1

BEAM

1шт.

2

PO19536

CHAIN, lifting, 20 links, 5/16 American proof coil, not used on Farmall hi-clear tractors

1шт.

2

517037R91

CHAIN, lifting, 25 links, 5/16 American proof coil, for Farmall hi-clear tractors

1шт.

3

512467R1

ROD

HOOK, lifting chain

1шт.

4

PO18499

COTTER PIN

QUICK-ATTACHABLE COT PIN

1шт.

11/16 x 1-1/2 x 11 GA WASHER

2шт.

5

512486R1

PLATE, colter bracket

1шт.

5/8 x 3-1/4 CRG BOLT

1шт.

5/8 x 3-1/2 CRG BOLT, 1947 TO 1949

1шт.

5/8 LOCK WASHER

1шт.

6

512466R1

NUT, cushion spring

2шт.

7

512505R1

SPRING

cushion

2шт.

8

512134R1

COLLAR, eccentric

2шт.

5/8 x 3-1/4 HEX-HD MACH BOLT

1шт.

5/8 LOCK WASHER

1шт.

9

512465R1

BEARING, spring guide

1шт.

10

512490R1

EXTENSION, beam inner

1шт.

5/8 x 3 HEX-HD MACH BOLT

1шт.

5/8 LOCK WASHER

1шт.

11

512474R91

U-BOLT W/BRACKET, right

1шт.

3/4 x 2-1/4 CRG BOLT

3шт.

3/4 LOCK WASHER

1шт.

12

515789R11

EYEBOLT W/NUT, hitch link extension, 1949 & up

1шт.

3/4 NUT

1шт.

3/4 LOCK WASHER

1шт.

13

512487R2

CONNECTOR, ELEC

CONNECTION, hitch link extension, 1947 to 1948, order eyebolt 515789R11

1шт.

14

514611R2

SUPPORT

LINK, hitch, not used on Farmall hi-clear tractors

2шт.

14

512506R2

LINK, hitch, for Farmall hi-clear tractors

2шт.

15

514612R2

EXTENSION, hitch link

1шт.

3/16 x 1 SELF-OPENING COT PIN

1шт.

3/16 x 1-1/4 SELF-OPENING COT PIN

1шт.

J547M

PIN

1/2 x 1-7/16 DLD-STD-HD PIN

1шт.

Q1396

AXLE PIN,1/2" x 1 5/8"

1/2 x 1-5/8 DLD-STD-HD PIN

1шт.

Q3567

5/8 x 1-5/8 DLD-STD-HD PIN

1шт.

17/32 x 1-1/4 x 16 GA WASHER

2шт.

16

460309R1

COTTER PIN

QUICK-ATTACHABLE COT PIN

1шт.

17

512492R1

EXTENSION, beam outer

1шт.

18

7466

WASHER

beam

3шт.

19

512488R1

CLIP, lifting chain

1шт.

1/2 x 1-1/4 HEX-HD MACH BOLT

1шт.

5/8 x 2-1/4 HEX-HD MACH BOLT

1шт.

1/2 LOCK WASHER

1шт.

5/8 LOCK WASHER

1шт.
