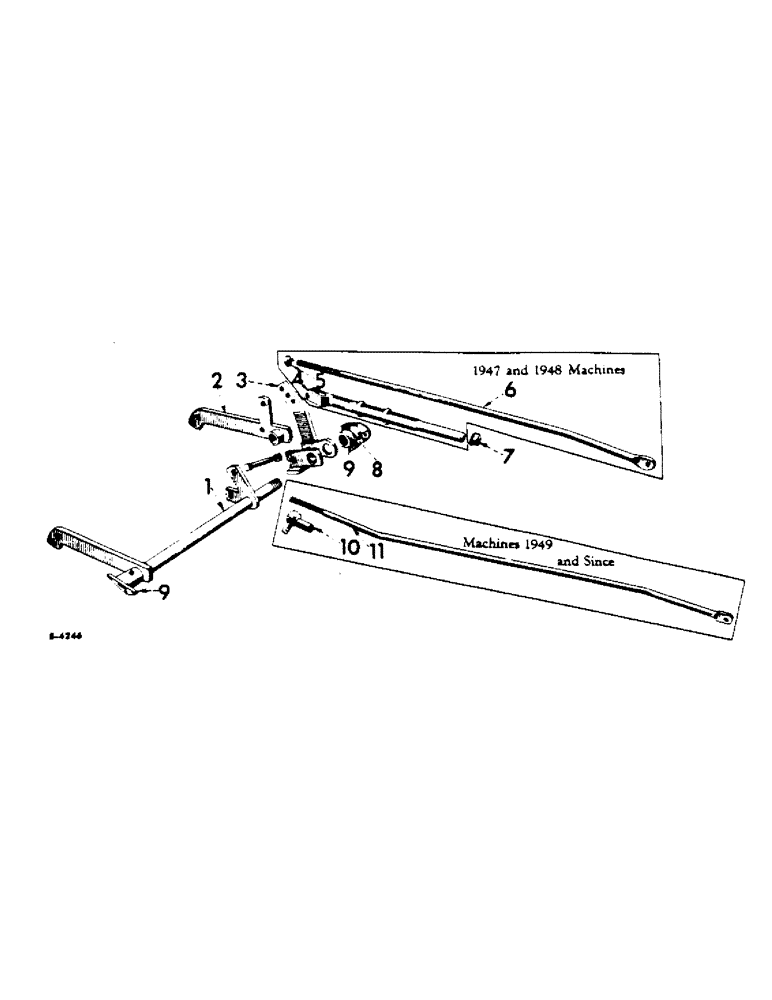

Запчасти Case IH 189 (H-5) - REAR SPLIT ROCKSHAFT

1

512464R91

ROCKSHAFT

1шт.

5/8 x 5-1/4 MACH BOLT

1шт.

1-17/32 x 2-1/4 x 11 GA WASHER

1шт.

2

512458R91

BELLCRANK

1шт.

3

512462R91

ARM, rockshaft lifting

1шт.

4

512448R1

EXTENSION, lifting link, 1947 to 1948, order link 515226R91

1шт.

PO18500A

PIN

QUICK-ATTACHABLE COT PIN

1шт.

5530S

PIN

5/8 x 1-5/8 HD PIN

1шт.

5

PO27537

COLLAR, lifting link adjing, Serial Range: 1947-1948

1шт.

6

512450R1

LINK, lifting, Serial Range: 1947-1948

1шт.

7

1431BX

COLLAR CLAMP

COLLAR W/SET SCREW, lifting link

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

1/2 x 3/4 CUP-PT SQ-HD SET SCREW

1шт.

8

109455

LUBE NIPPLE,5/16" x .56 lg, Drive

FITTING, 5/16 str drive lub

2шт.

9

512447R21

BEARING ASSY

W/FITTING, rockshaft

1шт.

3/8 x 1 CRG BOLT

3шт.

3/8 NUT

3шт.

3/8 LOCK WASHER

3шт.

7/16 x 1 x 16 GA WASHER

3шт.

10

515060R91

END

SWIVEL, lifting link

1шт.

PO18499

COTTER PIN

QUICK-ATTACHABLE COT PIN

1шт.

21/32 x 1-1/4 x 16 GA WASHER

1шт.

11

515226R91

ROCKSHAFT

LINK ASSY, lifting, consists of, (1) link 515059R1, (2) nut 218443, (1) pin po18499, (1) swivel 515060R91, (1) washer 551177R1

1шт.

11

515059R11

LINK

W/NUTS, lifting

1шт.

218443

NUT

3/4 JAM NUT

2шт.
