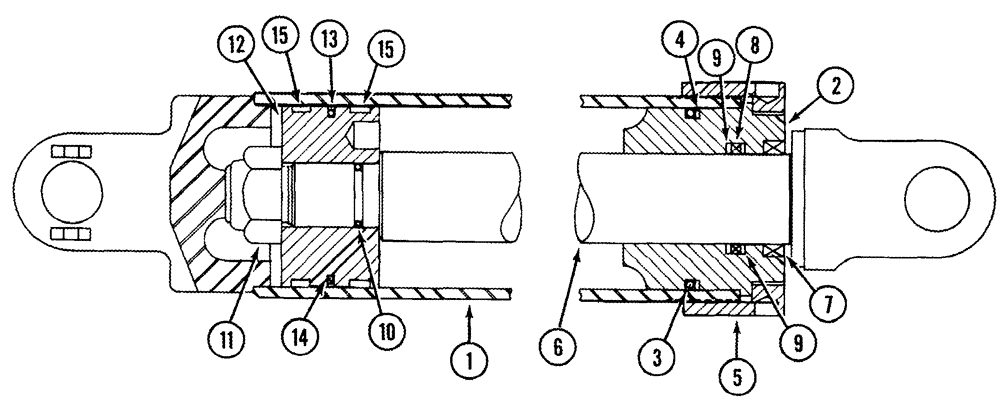

Запчасти Case IH 165 (08-04) - CYLINDER ASSY ROLLOVER, 403900R93 CYLINDER ASSEMBLY (08) - HYDRAULICS

403900R93

CYLINDER ASSY.

No Longer Available, Order 339840A1, See Figure 08-06

1шт.

87427115R

REMAN-HYD CYLINDER

165, Reman for New P/N 403900R93

1шт.

87427115C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Tube

1шт.

2

403270R1

FITTING

1шт.

3

238-5338

O-RING,0.21" Thk x 3.1" ID, -338, Cl 5, 75 Duro

1шт.

4

381088R1

BACK-UP RING

1шт.

5

381089R1

RING

1шт.

6

403993R3

STEM

1шт.

7

403845R1

WIPER SEAL

1шт.

8

403995R1

RING

1шт.

9

387362R2

BACK-UP RING

2шт.

10

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

11

230-46318

LOCK NUT,1 1/8"-12, GA

1-1/8 NF GR 8

1шт.

12

403271R1

PISTON

1шт.

13

381086R1

RING

1шт.

14

238-5151

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

1шт.

15

383005R1

RING

2шт.

387881R92

SEAL KIT

Inc. REF 3, 4, 7 - 10, 13 - 15

1шт.
