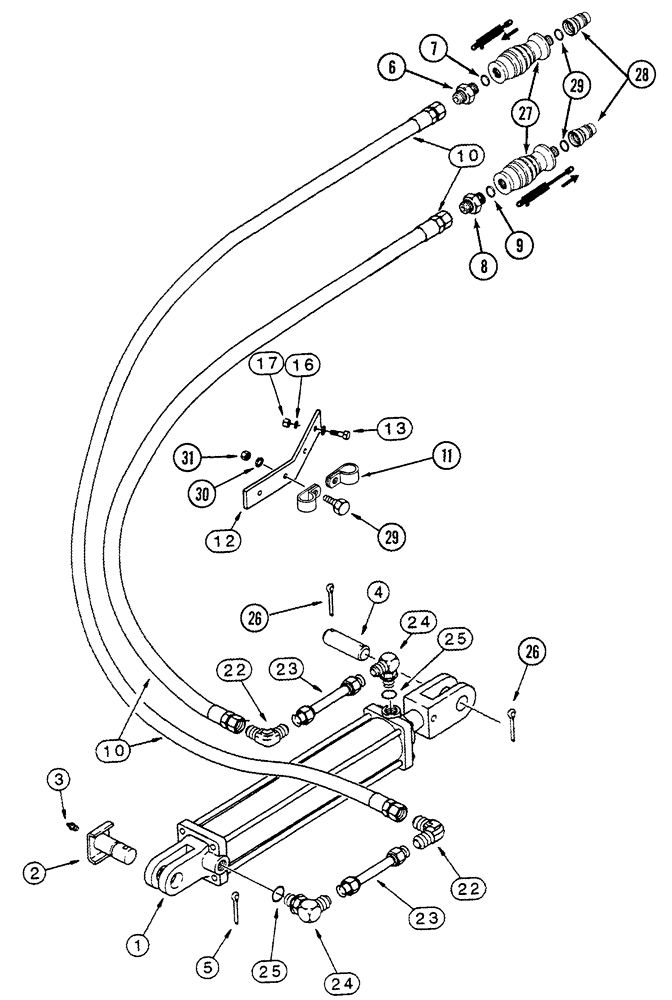

Запчасти Case IH 165 (08-03) - HYDRAULIC CIRCUIT, MODELS WITH 339840A1 ROLLOVER CYLINDER (08) - HYDRAULICS

1

339840A1

CYLINDER ASSY.

Rollover, See Figure 8-06

1шт.

87427115R

REMAN-HYD CYLINDER

165, Reman for New P/N 339840A1

1шт.

87427115C

CORE-HYD CYLINDER

Return Number

1шт.

2

97750C1

PIN

1шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

4

1960707C2

PIN

1шт.

5

432-2032

COTTER PIN,5/16" x 2"

5/16" x 2"

1шт.

6

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

9/16 fl x 3/4 Or, Inc; REF 7

1шт.

8

1337105C1

FITTING

0,125 in orifice, Inc; REF 9, Restrictor, For 4 and 5 Furrow Plows

1шт.

8

1337104C1

FITTING

0,097 in orifice, Inc; REF 9, Restrictor, For 6 Furrow Plows

1шт.

10

195504C2

HYDRAULIC HOSE

2030 mm (80 in)

2шт.

11

86598598

CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type

2шт.

12

112849C1

SUPPORT

1шт.

13

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

17

280431

NUT,1/2"-13, G5

1шт.

22

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

9/16 fl x fl, Degree 90

2шт.

23

97762C1

TUBE

2шт.

218-343

TUBE NUT,37 Degree, 9/16"-18, Type B

Tubing, 3/8 37FL Style B

2шт.

218-363

SLEEVE,37 Degree, 3/8" Tube

Tubing Ferrule, 3/8

2шт.

24

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Incl. 25

2шт.

26

438-32440

PIN,3/8" x 2 1/2", Coiled

3/8" x 2 1/2", Coiled

2шт.

27

236878A1

GRIP

Coupling, Push-Pull, Red

1шт.

28

1285718C2

QUICK MALE COUPLING

3/4 NF

2шт.

29

70-1108

SCREW,Pan HD, #10 - 24 x 1/2"

No. 10 x 1/2

1шт.

30

495-81099

WASHER,0.2" ID x 0.5" OD x 0.06" Thk

13/64 x 1/2 x 1/16

1шт.

31

87304

NUT,#10-24

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
