(08-02) - HYDRAULIC CIRCUIT, MODELS WITH 85153C91 ROLLOVER CYLINDER

Запчасти Case IH 165 (08-02) - HYDRAULIC CIRCUIT, MODELS WITH 85153C91 ROLLOVER CYLINDER (08) - HYDRAULICS

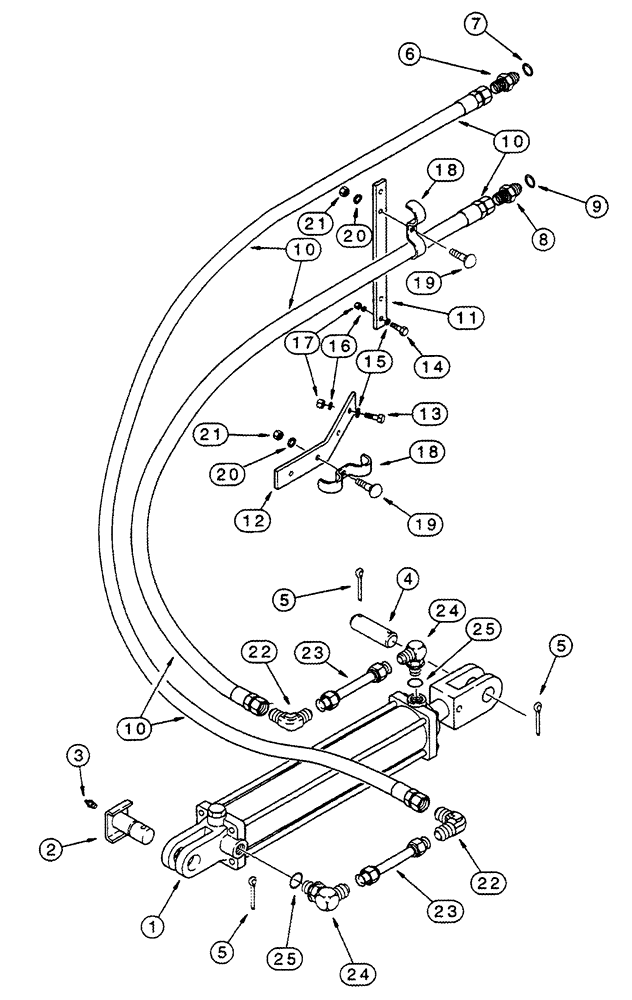

Схема запчастей Case IH 165 - (08-02) - HYDRAULIC CIRCUIT, MODELS WITH 85153C91 ROLLOVER CYLINDER (08) - HYDRAULICS
8
25
10
7
14
10
3
6
17
19
22
20
2
11
1
24
18
15
5
23
16
21
5
24
10
22
9
12
21
4
23
20
19
25
13
5
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

85153C91

CYLINDER ASSY.

Rollover, No Longer Available, Order 399840A1. See Footnote

1шт.

For cylinder replacement, order cylinder (339840A1), new pins, hoses and fittings, see Figures 8-03 and 8-06 for new cylinder and hydraulic circuit. See Figure 8-05 for 85153C91 service components

1шт.

87427115R

REMAN-HYD CYLINDER

165, Reman for New P/N 85153C91

1шт.

87427115C

CORE-HYD CYLINDER

Return Number

1шт.

2

97750C1

PIN

1шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

4

1960707C2

PIN

1шт.

5

432-2028

COTTER PIN,5/16" x 1 3/4"

5/16" x 1 3/4"

3шт.

6

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

9/16 fl x 3/4 Or, Includes 7

1шт.

8

1337105C1

FITTING

0,125 in orifice, Includes 9, Restrictor, For 4 and 5 Furrow Plows

1шт.

8

1337104C1

FITTING

0,097 in orifice, Includes 9, Restrictor, For 6 Furrow Plows

1шт.

10

195504C2

HYDRAULIC HOSE

2030 mm (80 in)

2шт.

11

86598598

CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type

1шт.

12

542892R1

SUPPORT

For 4 and 5 Furrow Plows

1шт.

12

112849C1

SUPPORT

For 6 Furrow Plows

1шт.

13

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

14

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

15

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

4шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

17

280431

NUT,1/2"-13, G5

4шт.

18

515030R1

CLAMP

2шт.

19

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

2шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

9628503

NUT,3/8"-16, G5

2шт.

22

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

9/16 fl x fl, Degree 90

2шт.

23

97762C1

TUBE

2шт.

24

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Incl. 25

2шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
