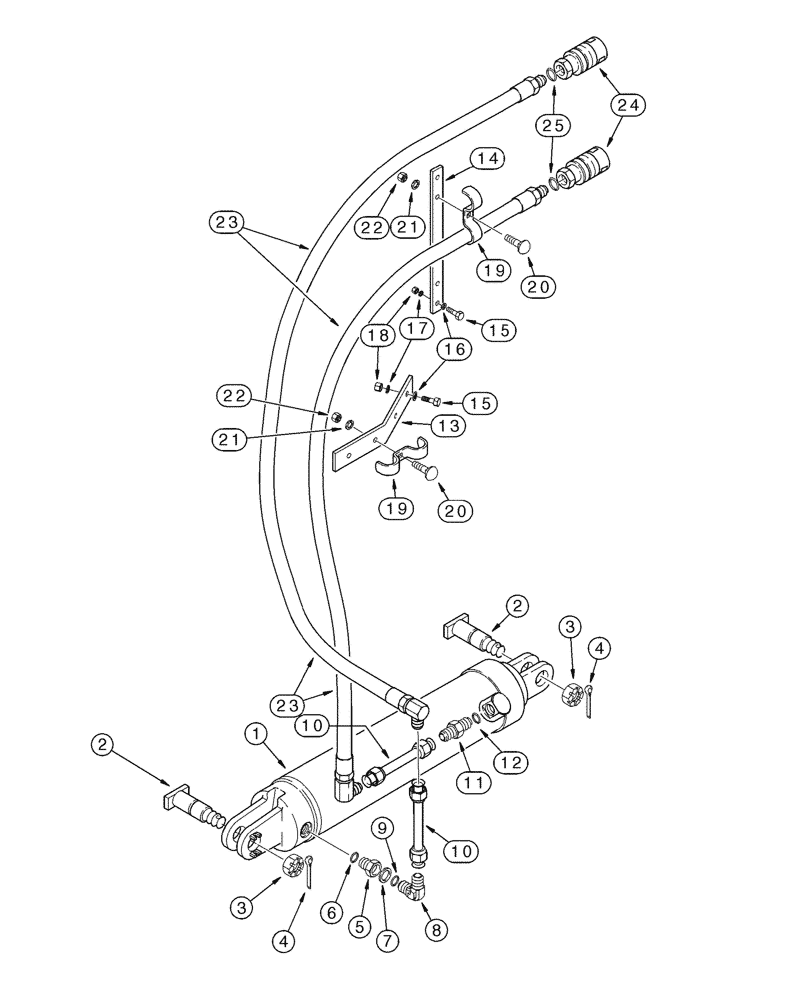

Запчасти Case IH 165 (08-01) - HYDRAULIC CIRCUIT, MODELS WITH 403900R93 ROLLOVER CYLINDER (08) - HYDRAULICS

1

339840A1

CYLINDER ASSY.

Rollover

1шт.

For cylinder replacement, order cylinder (339840A1), new pins, hoses and fittings, see Figures 8-03 and 8-06 for new cylinder and hydraulic circuit. See Figure 8-04 for 403900R93 service components

1шт.

87427115R

REMAN-HYD CYLINDER

165, Reman for New P/N 339840A1

1шт.

87427115C

CORE-HYD CYLINDER

Return Number

1шт.

2

490865R1

PIVOT PIN

2шт.

3

425-1316

NUT,1"-14, G5

1 NS

2шт.

4

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

5

542889R91

FITTING

Restrictor, For 4 Furrow 18 Inch, For 5 Furrow 16 and 18 Inch

1шт.

5

112850C1

FITTING

Restrictor, For 6 Furrow 18 inch

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

542890R1

PORT

1шт.

8

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or, Degree 90, Incl. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

542891R1

TUBE

2шт.

11

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

542892R1

SUPPORT

For 4 Furrow 18 Inch, For 5 Furrow 16 and 18 Inch

1шт.

13

112849C1

SUPPORT

For 6 Furrow 18 inch

1шт.

14

86598598

CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type

1шт.

15

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

15

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

16

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

4шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

18

280431

NUT,1/2"-13, G5

4шт.

19

515030R1

CLAMP

2шт.

20

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

2шт.

21

492-11038

LOCK WASHER,3/8"

2шт.

22

9628503

NUT,3/8"-16, G5

2шт.

23

542893R91

HOSE

82" Length

2шт.

24

1272399C2

QUICK MALE COUPLING

7/8 NF, Male, Stamped With Part Number, Internal Parts Not Serviced

1шт.

24

1341843C1

QUICK MALE COUPLING

7/8 NF, Male, Stamped With Part Number, Internal Parts Not Serviced

1шт.

24

1285718C2

QUICK MALE COUPLING

3/4 NF, Male, Stamped With Part Number, Internal Parts Not Serviced

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

27

218-5261

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

7/8 Or x 3/4 fem, Includes 27A, Not Illustrated

1шт.

27a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

28

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

3/4 Or x 7/8 fem, Includes 28A, Not Illustrated

1шт.

28a

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

236878A1

GRIP

PKG Red Grips with 3/4 inch O-ring Boss Threads

1шт.

236879A1

GRIP

PKG Black Grips with 3/4 inch O-ring Boss Threads

1шт.

236880A1

GRIP

PKG Gray Grips with 3/4 inch O-ring Boss Threads

1шт.

236881A1

GRIP

PKG Red Grips with 1/2 inch NPT Threads

1шт.

236882A1

GRIP

PKG Black Grips with 1/2 inch NPT Threads

1шт.

236883A1

GRIP

PKG Gray Grips with 1/2 inch NPT Threads

1шт.
