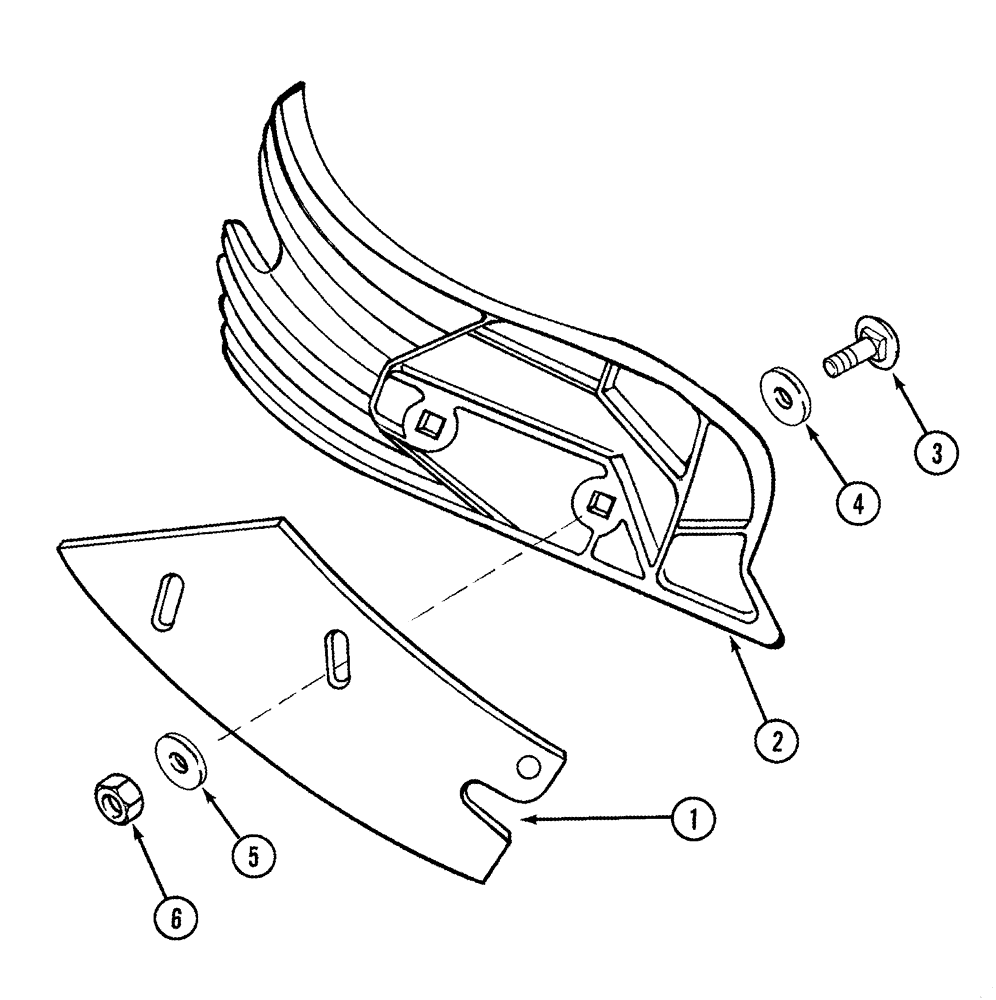

Запчасти Case IH 165 (09-12) - TRASH PLATES AND BRACKETS (09) - CHASSIS/ATTACHMENTS

1

484687R2

SUPPORT ASSY.

Trash Plate, Left-Hand, Shown

1шт.

1

484688R2

BRACKET

Trash Plate, Right-Hand

1шт.

2

483682R1

PLATE

Trash, Left-Hand, Shown

1шт.

2

476811R1

PLATE

Trash, Right-Hand

1шт.

3

419-3624

PLOW BOLT,#3, 3/8" - 16 x 1 1/2", Gr 5

Plow Bolt, 3/8 NC x 1-1/2 GR5

2шт.

4

495-81009

WASHER,.469" x 1" x .120"

15/32 x 1 x 1/8

2шт.

5

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

2шт.

6

9628503

NUT,3/8"-16, G5

2шт.
