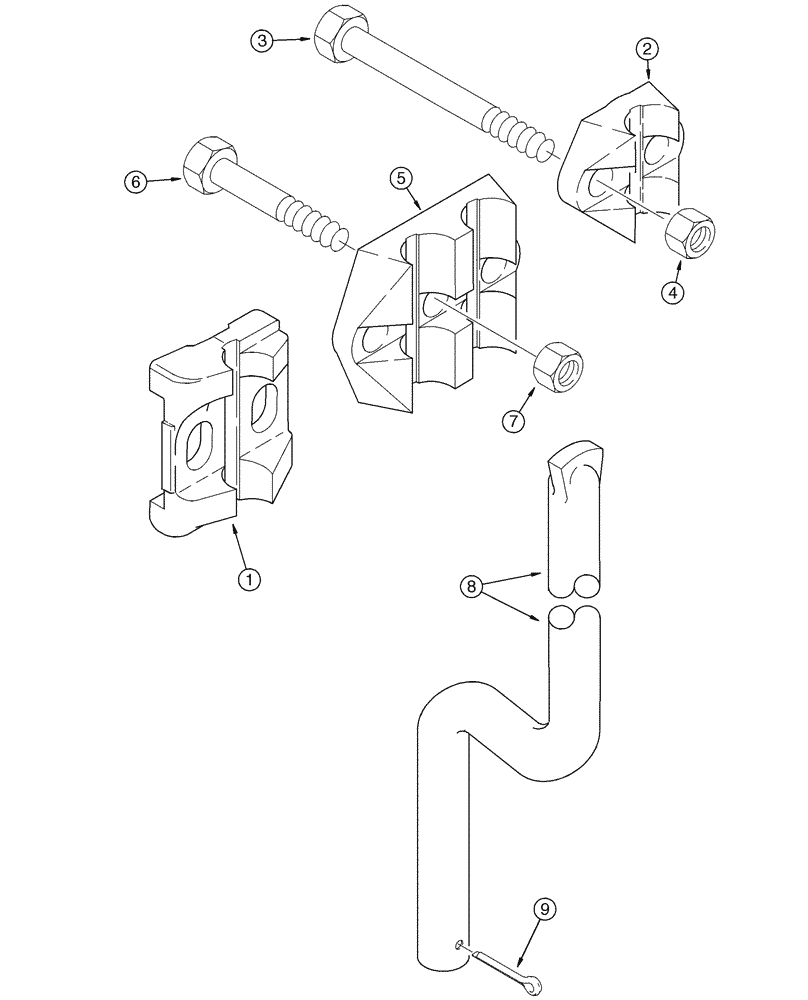

Запчасти Case IH 165 (09-11) - SHANKS AND CLAMPS, COULTER (09) - CHASSIS/ATTACHMENTS

1

524457R3

STAPLE

2шт.

2

524492R1

CLAMP

One Shank

2шт.

3

414-10112

BOLT,Hex, 5/8" - 18 x 7", Gr 5

5/8 NF x 7 GR5

2шт.

4

425-1110

NUT,5/8"-18, G5

2шт.

5

462687R1

STAPLE

Two Shank

2шт.

6

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

3шт.

7

425-1010

NUT,5/8"-11, G5

3шт.

8

522434R1

STEM

Coulter

2шт.

9

432-2040

COTTER PIN,5/16" x 2 1/2"

5/16" x 2 1/2"

2шт.
