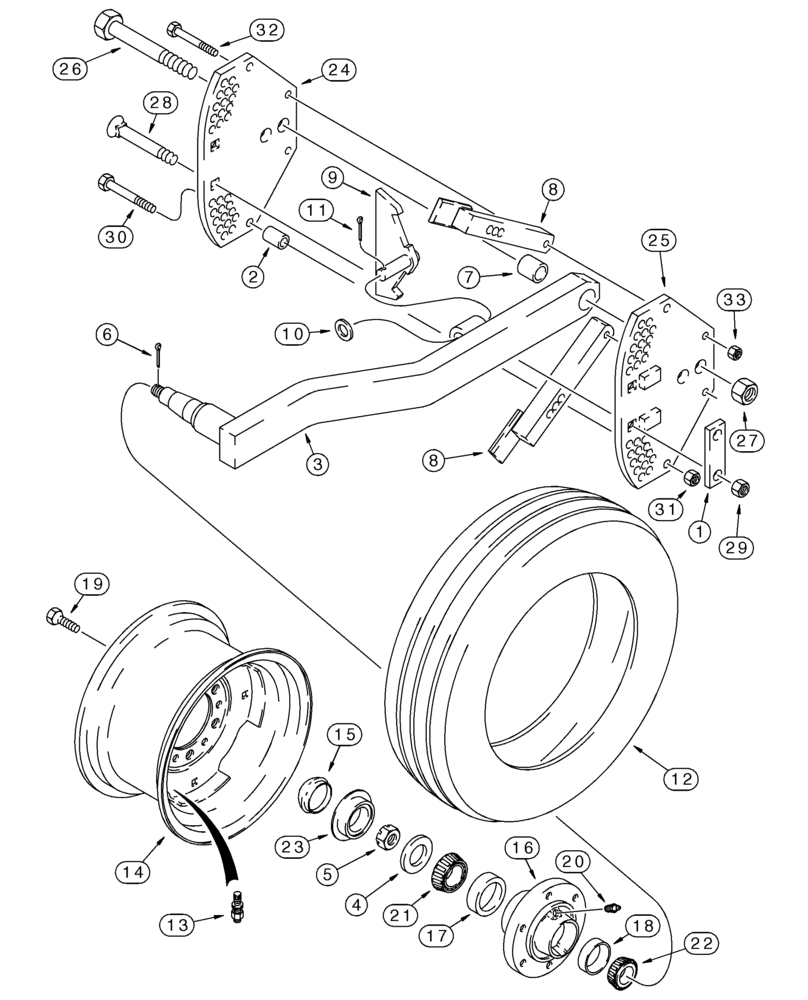

Запчасти Case IH 165 (09-10) - WHEEL, GAUGE, FOR 4 AND 5 FURROW PLOWS, BUILT 1980 AND AFTER, FOR 6 FURROW PLOWS (09) - CHASSIS/ATTACHMENTS

1

490855R1

LARGE PLATE

PLATE, LARGE

1шт.

2

490862R1

SPACER

2шт.

3

1337969C1

SUPPORT

1шт.

4

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

1шт.

5

70120D

SLOTTED NUT,7/8"-14

7/8

1шт.

6

432-832

COTTER PIN,1/8" x 2"

1/8" x 2"

1шт.

7

490858R1

SPACER

1шт.

8

131718C1

BAR

2шт.

9

463072R12

LATCH ASSY.

1шт.

10

495-81056

WASHER,29/32" x 1 1/2" x 3/64

29/32 x 1-1/2 x 3/64, Replaces 495-81057

1шт.

11

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

12

REF

INSTRUCTION

Tire, 9.5L x 14 High Flotation Tubeless

1шт.

12

REF

INSTRUCTION

Tire, 9.5L x 15 High Flotation Tubeless

1шт.

13

810768C1

VALVE

1шт.

14

481344R91

WHEEL

14 x 8

1шт.

14

A57879

RIM

15 x 8

1шт.

15

224066C1

HUB CAP

1шт.

16

606468R21

HUB

Six Bolt Mount Assy., Inc. REF 17, 18

1шт.

17

651817R1

BEARING CUP

1шт.

17

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

18

663558R1

BEARING CUP

2-57/64 OD

1шт.

19

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2 NF x 1-5/32

6шт.

20

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

123096A2

WHEEL BEARING KIT

Heavy Duty Wheel Bearing, Inc. REF 17, 18, 21 - 23

1шт.

21

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1шт.

22

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1-5/8 ID

1шт.

23

594702R91

SEAL

Oil

1шт.

23

594703R1

SLEEVE

Wear

1шт.

24

131763C1

LARGE PLATE

PLATE, LARGE Gauge Wheel Attaching, Without Stops

1шт.

25

131762C1

LARGE PLATE

PLATE, LARGE Gauge Wheel Attaching, With Stops

1шт.

26

413-1680

BOLT,Hex, 1" - 8 x 5", Gr 5

1 x 5

1шт.

27

231-41116

NUT,1"-8, GB

1 in

1шт.

28

419-31256

CARRIAGE BOLT,#3, 3/4" - 10 x 3 1/2", Gr 5

3/4 NC x 3-1/2 GR5

2шт.

29

231-42112

NUT,3/4"-10, GB

3/4 NC GR5

2шт.

30

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

4шт.

31

231-41110

LOCK NUT,5/8"-11, GB

4шт.

32

9818286

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8

1/2 NC x 3-1/2 GR8

2шт.

33

231-4218

LOCK NUT,1/2"-13, GB

1/2 NC GR8

2шт.
