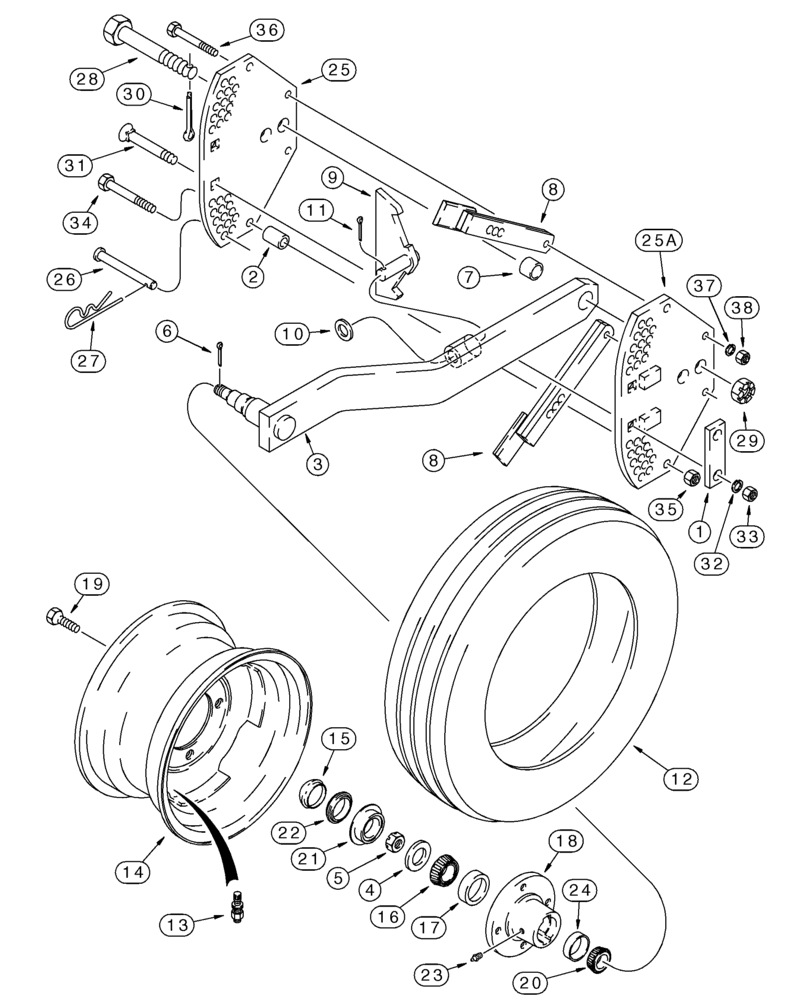

Запчасти Case IH 165 (09-09) - WHEEL, GAUGE, FOR 4 AND 5 FURROW PLOWS, BUILT PRIOR TO 1980 (09) - CHASSIS/ATTACHMENTS

1

463070R1

LARGE PLATE

PLATE, LARGE

1шт.

2

463069R1

SPACER

2шт.

3

467497R93

STEERING KNUCKLE

1шт.

4

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1/4 x 1/8

1шт.

5

425-1312

SLOTTED NUT,3/4"-16, G5

3/4 NF

1шт.

6

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

7

463063R1

BUSHING

Gauge Wheel Arm, For 4 Furrow 18 Inch, For 5 Furrow 16 and 18 Inch

1шт.

8

477908R92

BAR

2шт.

9

463072R12

LATCH ASSY.

1шт.

10

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

29/32 x 1-1/2 x 7/64

1шт.

11

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

12

REF

INSTRUCTION

Tire, 9.5L x 14 High Flotation Tubeless

1шт.

13

810768C1

VALVE

1шт.

14

1030857

WHEEL

15 x 4-1/2, If Used

1шт.

14

T25852

RIM

WHEEL 14 x 5, If Used

1шт.

15

651194R1

CAP

1шт.

16

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

1шт.

16

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

17

651814R1

BEARING CUP

1шт.

18

472220R2

HUB

Four Bolt Mount

1шт.

19

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2 NF x 15/16

4шт.

20

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1шт.

21

472222R1

SLEEVE

1шт.

22

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

1шт.

23

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

24

651817R1

BEARING CUP

1шт.

24

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

25

477910R1

LARGE PLATE

PLATE, LARGE Gauge Wheel Attaching, Without Stops

1шт.

25b

131762C1

LARGE PLATE

PLATE, LARGE Gauge Wheel Attaching, With Stops

1шт.

26

543124R1

HEADED PIN

1/2 x 2-3/4

2шт.

27

1970957C1

SPRING

3/16

2шт.

28

463154R2

BOLT

1шт.

29

425-1316

NUT,1"-14, G5

Slotted, 1- 14UNS

1шт.

30

432-1228

COTTER PIN,3/16" x 1 3/4"

1шт.

31

633661R1

CARRIAGE BOLT,#3, 5/8" - 11 x 3"

5/8 NC x 3 GR5

2шт.

32

492-11062

BEARING WASHER,5/8"

2шт.

33

425-1010

NUT,5/8"-11, G5

2шт.

34

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

5/8 NC x 2-3/4 GR5

2шт.

35

232-41110

NUT,5/8"-11, GC

2шт.

36

24-844

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 NC x 2-3/4 GR5

2шт.

37

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

38

280431

NUT,1/2"-13, G5

2шт.
