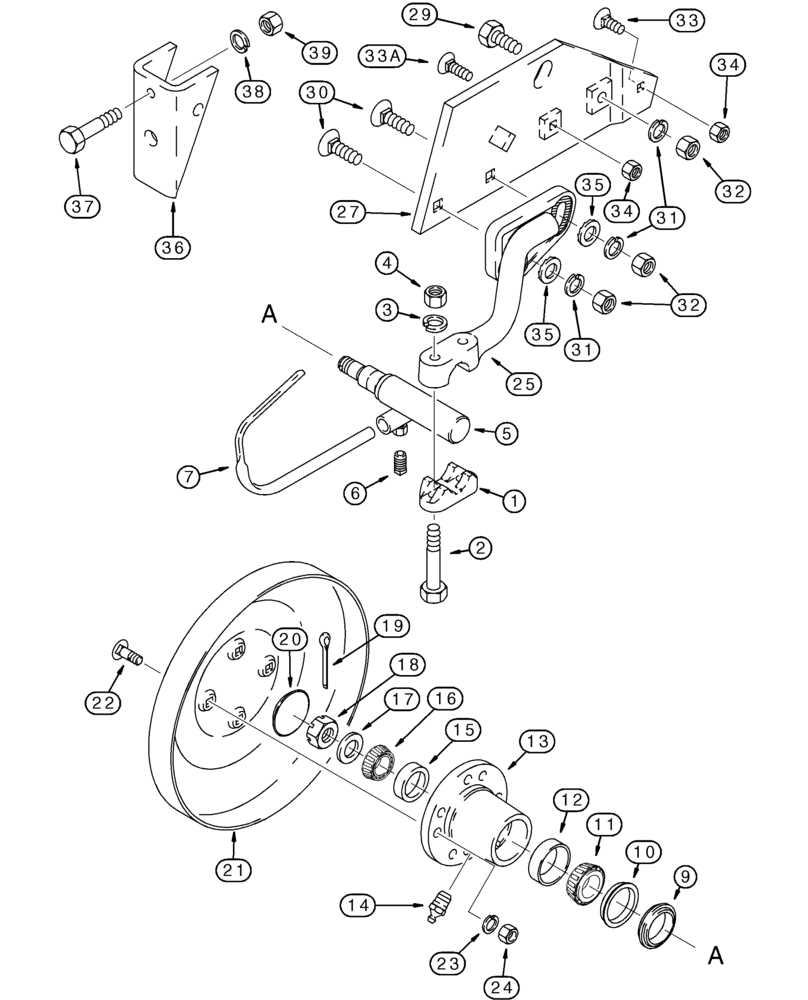

Запчасти Case IH 165 (09-08) - WHEEL, REAR FURROW (09) - CHASSIS/ATTACHMENTS

1

542737R1

SUPPORT

2шт.

2

9818286

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8

1/2 NC x 3-1/2 GR8

4шт.

3

492-21050

LOCK WASHER,1/2"

4шт.

4

9803187

NUT,1/2"-13, G8

4шт.

5

478216R91

SPINDLE

2шт.

6

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

1/2 NC x 3/4

2шт.

7

478223R1

KNIFE

Right Hand

1шт.

8

478222R1

KNIFE

Left Hand, Not Illustrated

1шт.

9

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

2шт.

10

472222R1

SLEEVE

2шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

2шт.

12

651817R1

BEARING CUP

2шт.

12

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

13

122711C1

HUB

2шт.

14

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

15

651814R1

BEARING CUP

2шт.

16

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

2шт.

16

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

17

495-81042

WASHER,25/32" x 1 1/2" x .120"

25/32 x 1-1/2 x 7/64

2шт.

18

69442D

NUT

3/4 NF

2шт.

19

88350

COTTER PIN,5/32" x 1-1/2"

5/32" x 1 1/2"

2шт.

20

86637927

PLUG,Exp, 2 3/4"

70 mm

2шт.

21

542488R1

WHEEL

Rear Furrow

2шт.

22

420-3720

BOLT,#3, 7/16" - 14 x 1 1/4", Gr 8

7/16 NC x 1-1/4 GR8

8шт.

23

492-11044

LOCK WASHER,7/16"

8шт.

24

429-107

NUT,7/16"-14, G8

8шт.

25

488423R1

SUPPORT

Axle, Right Hand

1шт.

26

542895R1

SUPPORT

Axle, Left Hand, Not Illustrated

1шт.

27

542489R1

SUPPORT

Right Hand

1шт.

28

542490R1

SPACER

Left Hand, Not Illustrated

1шт.

29

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

30

419-21048

PLOW BOLT,#3, 5/8" - 11 x 3", Gr 5

5/8 NC x 3

4шт.

31

492-11062

BEARING WASHER,5/8"

6шт.

32

425-1010

NUT,5/8"-11, G5

6шт.

33

420-3728

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/4", Gr 8

7/16 NC x 1-3/4 GR8

2шт.

33b

62179C1

PLOW BOLT

7/16 NC x 2-1/8, GR8

2шт.

34

231-1407

NUT,7/16"-14, GB

Hex, 7/16 NC

4шт.

35

523011R1

WASHER

4шт.

542499R91

PACKAGE, Beam Stop Inc. REF 36 - 39

1шт.

36

542495R1

SUPPORT

2шт.

37

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

38

492-11062

BEARING WASHER,5/8"

2шт.

39

425-1010

NUT,5/8"-11, G5

2шт.
