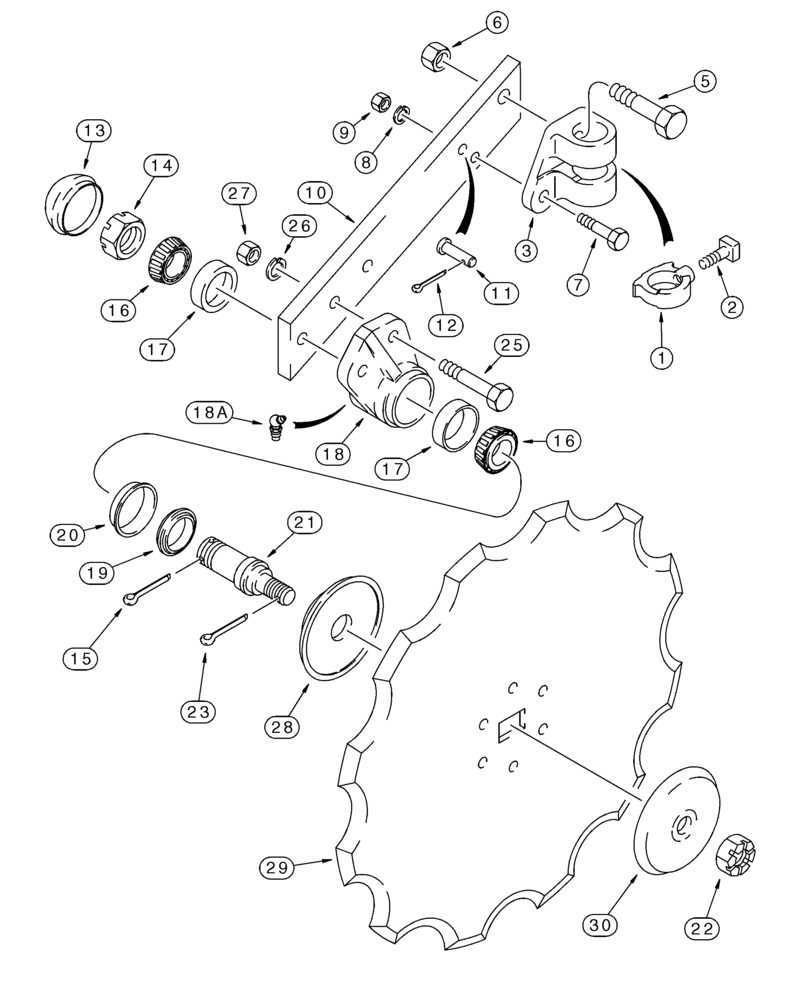

Запчасти Case IH 165 (09-07) - COULTERS, SIDE ARM ROLLING (09) - CHASSIS/ATTACHMENTS

1

523345R21

COLLAR CLAMP

Stop, Includes 2

2шт.

2

708081

SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"

1/2NC x 1-1/4

1шт.

3

462273R3

SUPPORT ASSY.

Coulter Arm, Right Hand

1шт.

4

462272R3

SUPPORT ASSY.

Coulter Arm, Left Hand, Not Illustrated

1шт.

5

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

5/8 NC x 1-3/4

2шт.

6

231-41110

LOCK NUT,5/8"-11, GB

2шт.

7

414-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

7/16 NF x 1-3/4

2шт.

8

492-11044

LOCK WASHER,7/16"

2шт.

9

425-117

NUT,7/16"-20, G5

2шт.

10

131517C92

LEVER

Includes 11, 12

2шт.

11

439-1718

HEADED PIN,7/16" x 1 1/8"

7/16 x 1-1/8; 2

1шт.

12

432-1216

COTTER PIN,3/16" x 1"

1шт.

NSS

NOT SOLD SEPARAT

Spindle Assy, Left Hand

1шт.

21

541480R1

SPINDLE

1шт.

549827R92

HUB CAP

SPINDLE ASSEMBLY - coulter, right-hand

1шт.

22

429-1314

NUT,7/8"-14, G8

7/8 NF; 8

1шт.

13

518842R1

CAP

CAP - hub

1шт.

23

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

14

519250R1

SLOTTED NUT

NUT - hex, slotted, 1-1/4 inch NF

1шт.

24

541481R1

SUPPORT

Left Hand, Not Illustrated

1шт.

15

432-832

COTTER PIN,1/8" x 2"

1/8" x 2"

1шт.

25

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

4шт.

16

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - tapered roller bearing, spindle housing

2шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

17

651817R1

BEARING CUP

CUP - tapered roller bearing, spindle housing

2шт.

17

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

27

280431

NUT,1/2"-13, G5

4шт.

18

541482R1

BEARING HOUSING,2.3275" ID x 3" OD x 2.44"

HOUSING - bearing, right-hand

1шт.

28

523020R3

SUPPORT ASSY.

Inner, Used With 17 inch Blade

2шт.

18a

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

FITTING - grease, 45 degree, 1/4-28 special taper x 13/16 inch

1шт.

28

59158C1

SUPPORT ASSY.

Inner, Used With 20 inch Blade

2шт.

19

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

SEAL - oil

1шт.

29

469191R3

BLADE

Rippled Edge, 17 Inch

2шт.

20

472222R1

SLEEVE

SLEEVE - oil seal

1шт.

29

474252R2

COULTER

COULTER RIPPLED 20"

2шт.

30

523021R2

SUPPORT ASSY.

Outer, Used With 17 inch Blade

2шт.

30

59159C1

SUPPORT ASSY.

Outer, Used With 20 inch Blade

2шт.
