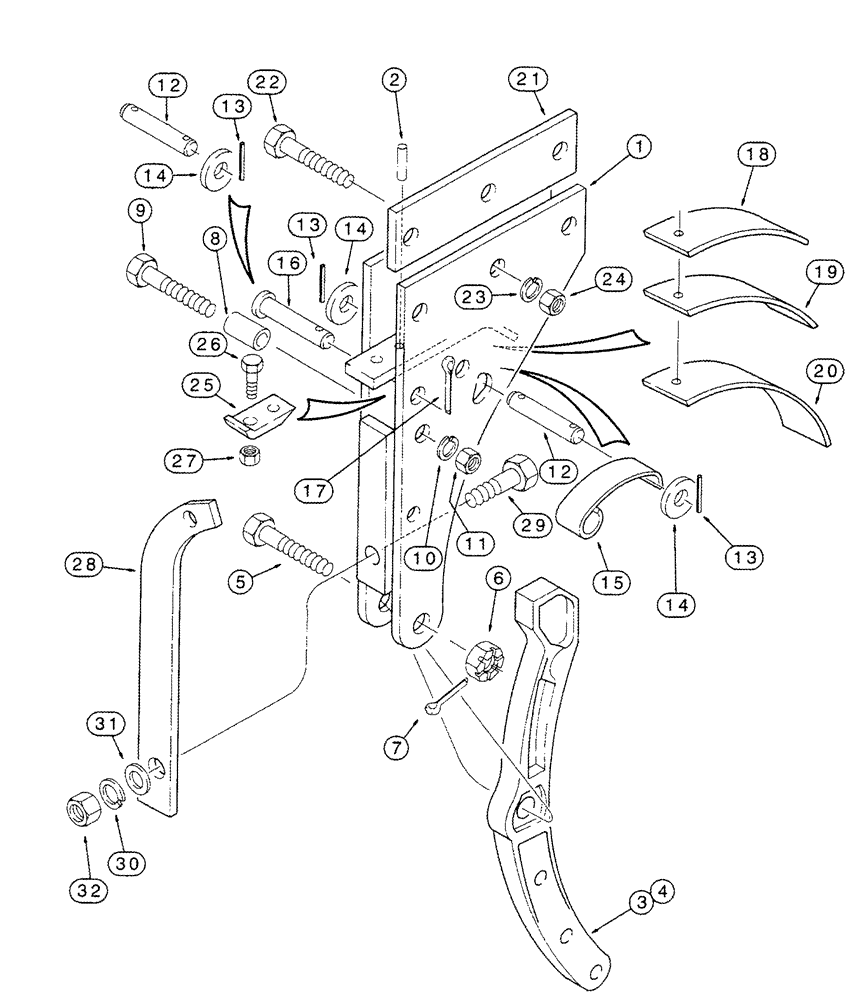

Запчасти Case IH 165 (09-06) - BEAM, TRIP (09) - CHASSIS/ATTACHMENTS

1

541417R2

LARGE PLATE

PLATE, LARGE

2шт.

2

438-33224

PIN,1/2" x 1 1/2", Coiled

1/2" x 1 1/2", Coiled

2шт.

3

465800R2

BEAM

Trip, Right Hand

1шт.

Quantity listed is per furrow.

1шт.

4

541422R1

SUPPORT

Trip, Left Hand, Not Illustrated

1шт.

5

465799R2

BOLT

2шт.

6

425-1316

NUT,1"-14, G5

1 UNS GR5

2шт.

7

432-1232

COTTER PIN,3/16" OD x 2" L

2шт.

8

522432R2

SPACER

2шт.

9

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8NC x 3-1/4 GR5

2шт.

10

492-11062

BEARING WASHER,5/8"

2шт.

11

425-1010

NUT,5/8"-11, G5

2шт.

12

465801R1

ROLLER

1шт.

13

438-31624

PIN,6.35mm OD x 38.1mm L, Coiled

1/4" x 1 1/2", Coiled

1шт.

14

522473R1

WASHER

1шт.

15

465868R1

SPRING

2шт.

16

439-11247

HEADED PIN,3/4" x 2 15/16"

3/4 x 2-15/16; 2

2шт.

17

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

18

524452R1

VALVE SPRING

2шт.

19

524453R1

VALVE SPRING

2шт.

20

524454R1

VALVE SPRING

2шт.

21

1337611C1

BAR

4шт.

22

413-1456

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 5

7/8NC x 3-1/2 GR5

6шт.

23

492-11088

LOCK WASHER,7/8"

7/8"

6шт.

24

425-1014

NUT,7/8"-9, G5

6шт.

25

468847R1

CLIP,ELECTRICAL

2шт.

26

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

27

131-208

SPECIAL NUT,1/2"-13

1/2NC GR5

2шт.

28

541384R2

SUPPORT

Trip Unit, 5/8 inch Thick, If Used

1шт.

28

122916C1

SUPPORT

Trip Unit, 3/4 inch Thick, If Used

1шт.

29

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

7/8NC x 3 GR5

4шт.

30

492-11088

LOCK WASHER,7/8"

7/8"

4шт.

31

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

4шт.

32

425-1014

NUT,7/8"-9, G5

4шт.
