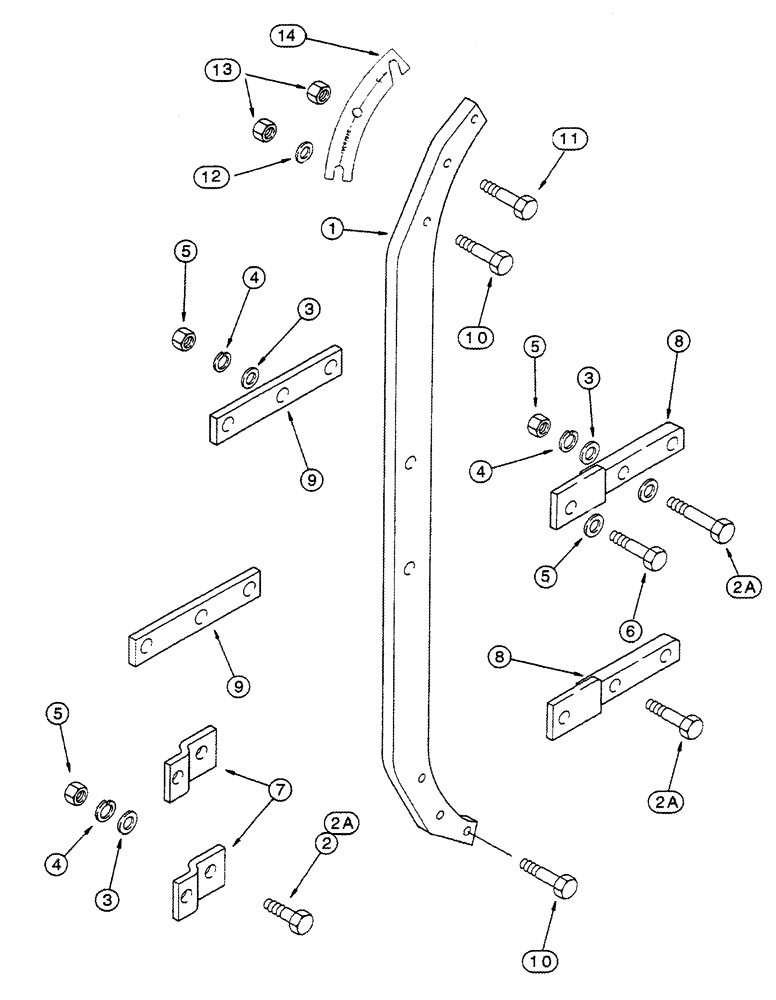

Запчасти Case IH 165 (09-05) - BEAM, RIGID (09) - CHASSIS/ATTACHMENTS

1

490848R1

SUPPORT

Rigid

1шт.

Quantity listed is per furrow.

1шт.

2

413-1436

BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 5

7/8 x 2-1/4, If Used

1шт.

2b

426-1456

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 8

7/8NC x 3-1/2 GR8

1шт.

3

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

1шт.

4

492-11088

LOCK WASHER,7/8"

if used 7/8"

1шт.

5

232-53414

NUT,Flg, 7/8"-9

Replaces 231-53114

1шт.

6

426-1464

BOLT,Hex, 7/8" - 9 x 4", Gr 8

7/8NC x 4 GR8

1шт.

7

490849R1

SUPPORT

Hammer, If Used

2шт.

8

224101C1

BAR

Beam Mounting, With Block

2шт.

9

224104C1

BAR

Beam Mounting, Without Block

2шт.

10

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

5/8NC x 3-1/2 GR8

4шт.

11

426-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 8

5/8NC x 3-3/4 GR8

2шт.

12

1256864C2

WASHER

2шт.

13

1256884C1

NUT

Hex, 5/8NC GR8

1шт.

58994C1

PLATE,SMALL SQUARE

Block, Stop, Landslide

1шт.

14

248163A1

SHIM

Adjusting

1шт.
