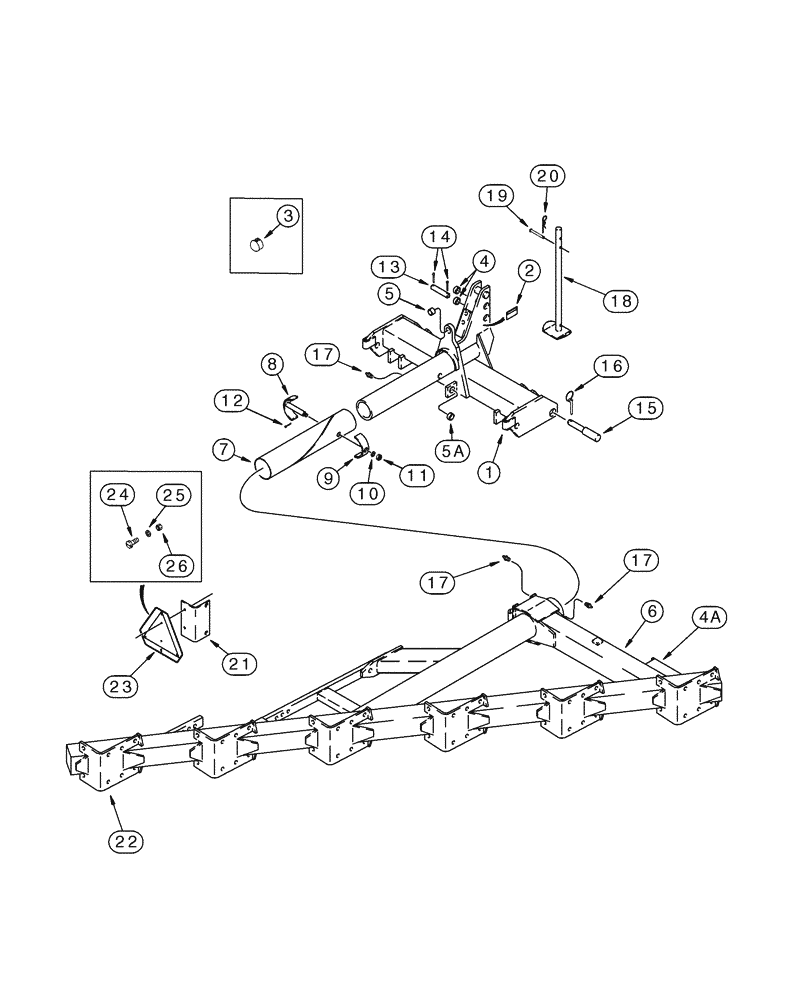

Запчасти Case IH 165 (09-04) - FRAME, FOR 6 FURROW PLOWS, ASN CCD0025001 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
314148A1
HEAD
Main, Front, Inc. 2
1шт.
2
543301R1
CAUTION DECAL
Lift Links
1шт.
439-11488
HEADED PIN,22.23mm OD x 139.7mm L
7/8 x 5-1/2; 2, Not Illustrated
2шт.
651239R1
SPRING WASHER,23.02mm ID x 38.1mm OD x 6.35mm Thk
29/32 x 1-1/2 x 1/4, Not Illustrated
14шт.
496-21094
WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk
Not Illustrated
2шт.
432-1624
COTTER PIN,1/4" x 1 1/2"
Not Illustrated
2шт.
3
1017987R1
CLAMP
1шт.
4
307401A1
BUSHING
1-1/4 x 1-5/8 x 3/4
4шт.
4a
337722A1
BUSHING
1-1/2 x 1-3/4 x 1, Cylinder Anchor, Frame Mounted
1шт.
5
112761C1
BUSHING,31.83mm ID x 39.115mm OD x 26.92mm L
Cylinder Anchor, Head Mounted
1шт.
5a
112886C1
BUSHING
1шт.
6
310502A2
FRAME
Main, Rear, For 6 Furrow 18 inch With Rigid and Spring Trip Beam
1шт.
7
311213A1
TUBE,152.4 mm ID, 762 mm Length
Bearing
1шт.
8
542459R3
PIN
1шт.
9
112675C2
LARGE PLATE
PLATE, LARGE
1шт.
10
495-81255
WASHER,0.78" ID x 1.5" OD x 0.18" Thk
25/32 x 1-1/2 x 11/64
1шт.
12
432-820
COTTER PIN,1/8" x 1 1/4"
1шт.
13
316396A2
PIN
1/1/4 x 6-7/64
1шт.
15
101137C1
HITCH PIN,50.8mm OD x 274.32mm L
2шт.
16
392181R1
SPLIT PIN/SAFETY PIN,11.13mm OD
3шт.
17
219-87
LUBE NIPPLE,1/4" - 28 NPTF
3шт.
18
541399R1
STAND
Parking
1шт.
19
439-5844
HEADED PIN,1/2" x 2 3/4", G5
1/2 x 2-3/4
1шт.
20
1980543C1
HAIR PIN COTTER
5/32
1шт.
21
543924R1
SUPPORT
SMV Emblem and Reflector
1шт.
22
112675C2
LARGE PLATE
PLATE, LARGE Beam Mounting, Welded to Rear Main Frame
1шт.
23
311860A1
EMBLEM
Slow Moving Vehicle, Inc. Decal
1шт.
24
413-416
BOLT,Hex, 1/4" - 20 x 1", Gr 5
2шт.
25
495-81105
WASHER,.281" x 3/4" x .120"
Flat, 9/32 x 3/4 x 1/8
2шт.
492-11025
LOCK WASHER,1/4"
2шт.
26
425-104
NUT,1/4"-20, Cl 5
2шт.
27
337715A1
PLATE
End Cover, Not Illustrated
1шт.
28
280-1478
SELF-TAP SCREW,HWH, 1/4-14 x 1/2"
1/4 x 1/2
4шт.
Выбрано товаров: 34
