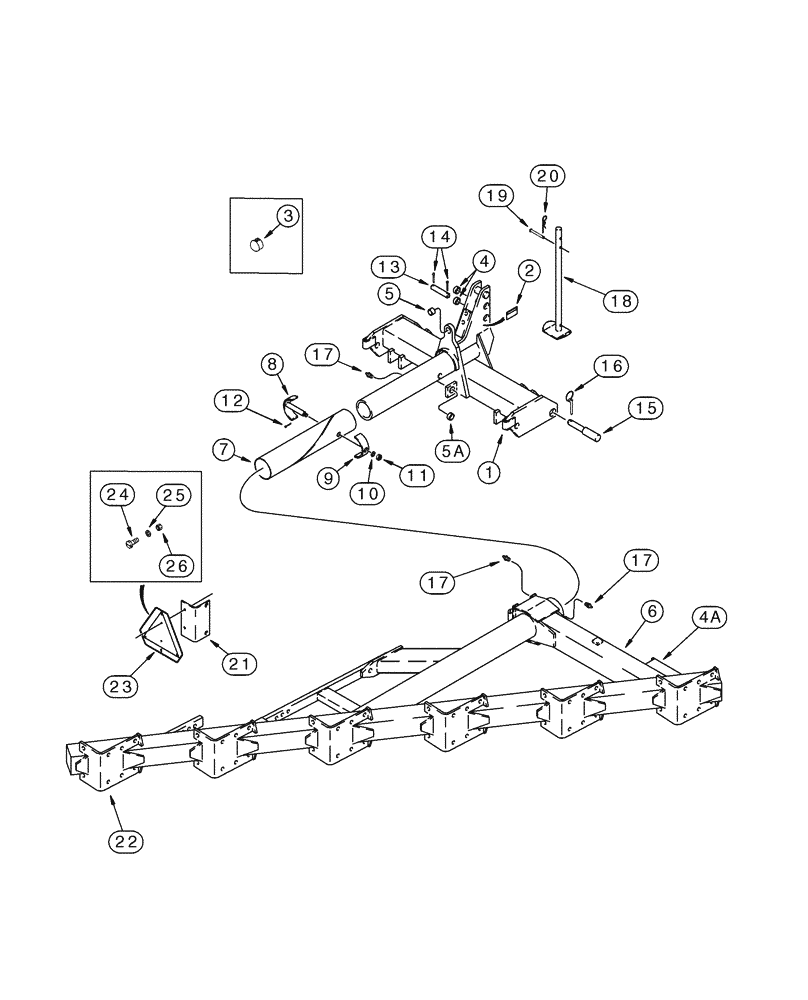

Запчасти Case IH 165 (09-03) - FRAME, FOR 6 FURROW PLOWS, BSN CCD0025001 (09) - CHASSIS/ATTACHMENTS

1

313366A1

HEAD

Main, Front, Inc. 2

1шт.

2

543301R1

CAUTION DECAL

Lift Links

1шт.

439-11488

HEADED PIN,22.23mm OD x 139.7mm L

7/8 x 5-1/2; 2, Not Illustrated

2шт.

651239R1

SPRING WASHER,23.02mm ID x 38.1mm OD x 6.35mm Thk

29/32 x 1-1/2 x 1/4, Not Illustrated

14шт.

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

Not Illustrated

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Not Illustrated

2шт.

3

1017987R1

CLAMP

1шт.

4

112718C1

BUSHING

4шт.

4a

337722A1

BUSHING

Cylinder Anchor, Frame Mounted

1шт.

5

112761C1

BUSHING,31.83mm ID x 39.115mm OD x 26.92mm L

Cylinder Anchor, Head Mounted

1шт.

5a

112886C1

BUSHING

1шт.

6

112751C5

SUPPORT

Main, Rear, For 6 Furrow 18 inch With Rigid and Spring Trip Beam

1шт.

7

542457R1

TUBE

Bearing

1шт.

8

542459R3

PIN

1шт.

9

542458R1

CLIP,ELECTRICAL

1шт.

10

495-81255

WASHER,0.78" ID x 1.5" OD x 0.18" Thk

25/32 x 1-1/2 x 11/64

1шт.

11

425-1212

SLOTTED NUT,3/4"-10, G5

3/4

1шт.

12

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

13

112680C2

PIN

1-1/4 x 5-5/8

1шт.

14

88182

COTTER PIN,1/4" OD x 2" L

1/4" x 2"

2шт.

15

101137C1

HITCH PIN,50.8mm OD x 274.32mm L

2шт.

16

372907R91

LINCH PIN

2шт.

17

219-87

LUBE NIPPLE,1/4" - 28 NPTF

3шт.

18

541399R1

STAND

Parking

1шт.

19

439-5844

HEADED PIN,1/2" x 2 3/4", G5

1/2 x 2-3/4

1шт.

20

1980543C1

HAIR PIN COTTER

5/32

1шт.

21

543924R1

SUPPORT

SMV Emblem and Reflector

1шт.

22

112675C2

LARGE PLATE

PLATE, LARGE Beam Mounting, Welded to Rear Main Frame

1шт.

23

311860A1

EMBLEM

Slow Moving Vehicle, Inc. Decal

1шт.

24

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

25

495-81105

WASHER,.281" x 3/4" x .120"

Flat, 9/32 x 3/4 x 1/8

2шт.

492-11025

LOCK WASHER,1/4"

2шт.

26

425-104

NUT,1/4"-20, Cl 5

2шт.
