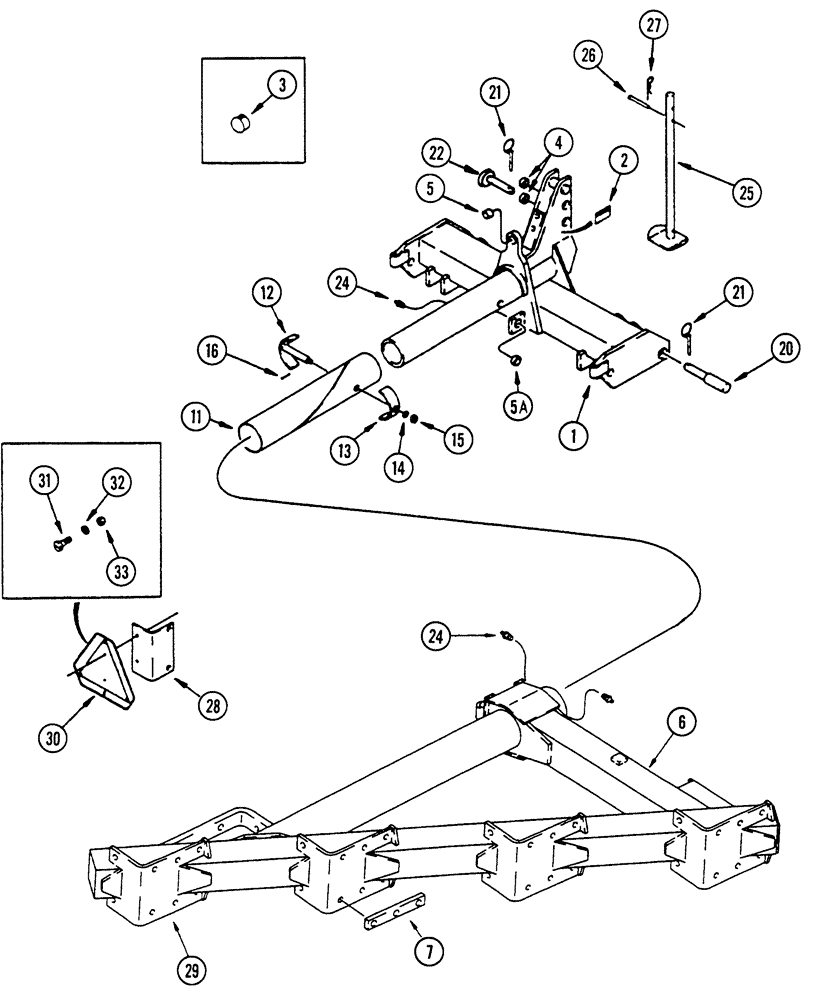

Запчасти Case IH 165 (09-02) - FRAME, FOR 4 AND 5 FURROW PLOWS, ASN CCD0025001 (09) - CHASSIS/ATTACHMENTS

1

314148A2

HEAD

Main, Front, Inc. 2

1шт.

2

543301R1

CAUTION DECAL

Lift Links

1шт.

439-11488

HEADED PIN,22.23mm OD x 139.7mm L

Not Illustrated

2шт.

651239R1

SPRING WASHER,23.02mm ID x 38.1mm OD x 6.35mm Thk

29/32 x 1-1/2 x 1/4, Not Illustrated

14шт.

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

Not Illustrated

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Not Illustrated

2шт.

3

1017987R1

CLAMP

1шт.

4

307401A1

BUSHING

1-1/4 x 1-5/8 x 3/4

4шт.

4a

337722A1

BUSHING

1-1/2 x 1-3/4 x 1, Cylinder Anchor, Frame Mounted

1шт.

5

112761C1

BUSHING,31.83mm ID x 39.115mm OD x 26.92mm L

Cylinder Anchor, Head Mounted

1шт.

5a

112886C1

BUSHING

1шт.

6

310505A2

FRAME

Main, Rear, For 4 Furrow 18 Inch With Rigid Beam, See REF 8, 10

1шт.

7

1337611C1

BAR

Spring Trip Beam, If Used

8шт.

8

310504A2

CHASSIS

Main, Rear, For 5 Furrow 16 Inch With Rigid Beam, Not Illustrated

1шт.

9

1337611C1

BAR

Spring Trip Beam, If Used, Not Illustrated

10шт.

10

310503A2

FRAME

Main, Rear, For 5 Furrow 18 inch With Rigid and Spring Trip Beam, Not Illustrated

1шт.

11

311213A1

TUBE,152.4 mm ID, 762 mm Length

Bearing

1шт.

12

542459R3

PIN

1шт.

13

542458R1

CLIP,ELECTRICAL

1шт.

14

495-81255

WASHER,0.78" ID x 1.5" OD x 0.18" Thk

1шт.

15

425-1212

SLOTTED NUT,3/4"-10, G5

1шт.

16

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

20

101137C1

HITCH PIN,50.8mm OD x 274.32mm L

2шт.

21

392181R1

SPLIT PIN/SAFETY PIN,11.13mm OD

1шт.

22

316396A2

PIN

1/1/4 x 6-7/64

1шт.

24

219-87

LUBE NIPPLE,1/4" - 28 NPTF

3шт.

25

541399R1

STAND

Parking

1шт.

26

439-5844

HEADED PIN,1/2" x 2 3/4", G5

1шт.

27

1980543C1

HAIR PIN COTTER

5/32

1шт.

28

543924R1

SUPPORT

SMV Emblem and Reflector

1шт.

29

112675C2

LARGE PLATE

PLATE, LARGE Beam Mounting, Welded to Rear Main Frame

1шт.

30

311860A1

EMBLEM

Slow Moving Vehicle, Inc. Decal

1шт.

31

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

32

495-81105

WASHER,.281" x 3/4" x .120"

2шт.

492-11025

LOCK WASHER,1/4"

2шт.

33

425-104

NUT,1/4"-20, Cl 5

2шт.

34

337715A1

PLATE

End Cover, Not Illustrated

1шт.

35

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

Not Illustrated

4шт.
