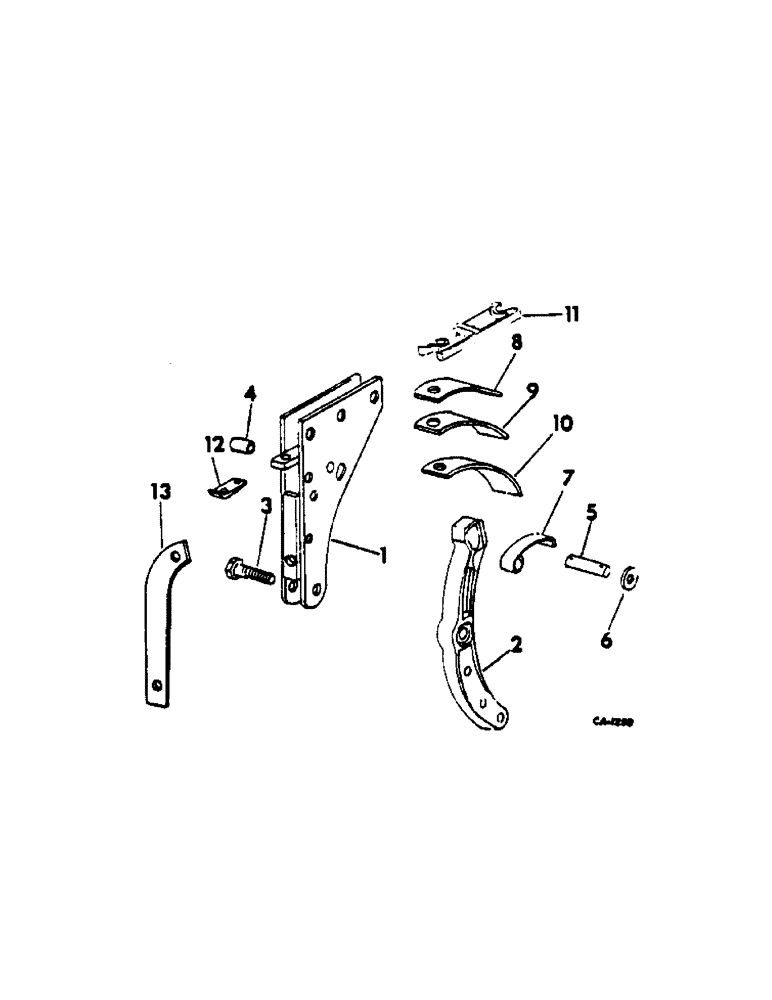

Запчасти Case IH 155 (AQ-3[A]) - TRIP BEAM ONE PER FURROW

1

541417R2

LARGE PLATE

PLATE ASSY, side

2шт.

17073R1

PIN

1/2 x 1-1/2 slt-spring

2шт.

2

465800R2

BEAM

RH trip

1шт.

2

541422R1

SUPPORT

BEAM, LH trip

1шт.

3

465799R1

BOLT (SPREADER),Hex, 1" x 3 1/2", Drilled

BOLT, 1 x 3-1/2 hex-hd drld

2шт.

427651

SLOTTED NUT,1"-14, G5

NUT, 1-14 slt hex.

2шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4", extended prong

2шт.

4

522432R2

SPACER

STOP AND SPACER, beam

2шт.

17651R1

BOLT,Hex, 5/8" - 11 x 3 1/4"

5/8-11 x 3-1/4 hex-hd mach

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

102639

NUT,5/8"-11, G5

2шт.

5

465801R1

ROLLER

trip spring

2шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

4шт.

6

522473R1

WASHER

29/64 x 1-3/4 x 11 ga

4шт.

7

485868R1

SPRING, trip

2шт.

21666R1

HEADED PIN,3/4" x 2 15/16"

PIN, 3/4 x 2.938 hd type 1

2шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"

2шт.

8

524452R1

VALVE SPRING

SPRING, upper helper

2шт.

9

524453R1

VALVE SPRING

SPRING, middle helper

2шт.

10

524454R1

VALVE SPRING

SPRING, lower helper

2шт.

11

542487R1

SPACER

trip beam

4шт.

271821

BOLT,Hex, 7/8" - 9 x 3 1/2", Gr 5

SCREW, 7/8-9 x 3-1/2 znd hex-hd cap

6шт.

NLS

NO LONGER SERVICED

7/8"

6шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

6шт.

12

468847R1

CLIP,ELECTRICAL

CLIP, helper spring adj

2шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 x 2-1/4 type 5

2шт.

19696R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 znp nylon insert

2шт.

13

541384R1

BRACE

trip unit

1шт.

413-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 5

SCREW, 7/8-9 x 2-1/2 znd hex-hd cap , Course threads

4шт.

131047

WASHER,7/8"

7/8"

4шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.
