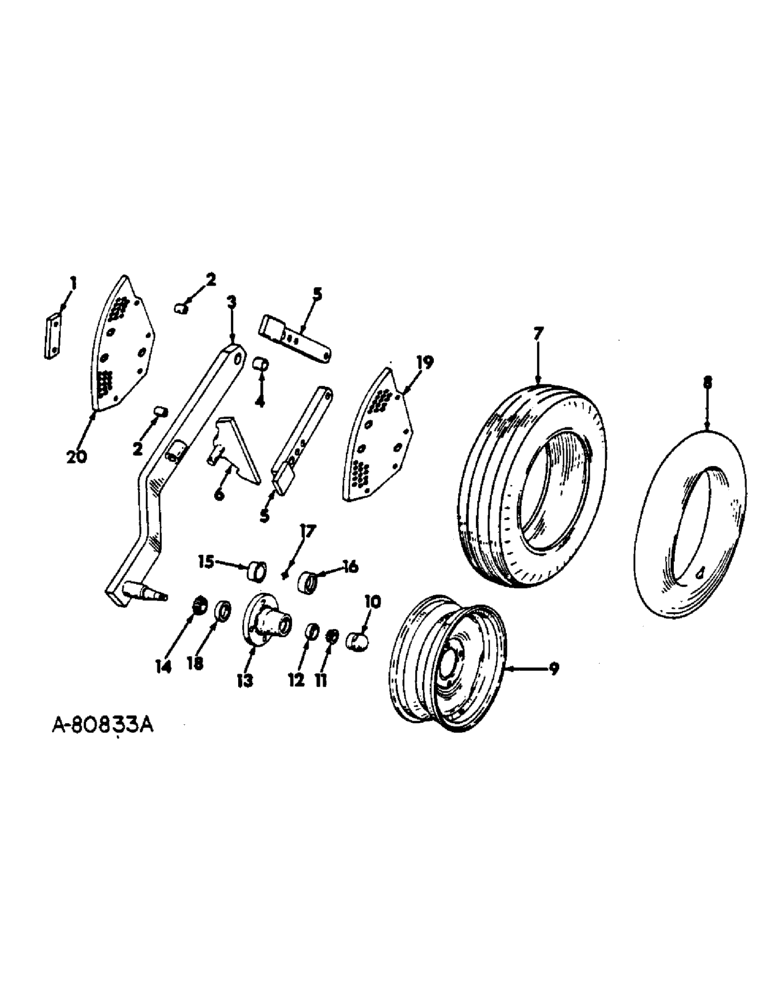

Запчасти Case IH 155 (AQ-6) - GAUGE WHEEL
№
Артикул
Название
Примечание
Количество
1
463070R1
LARGE PLATE
CLIP, attaching plate #1
1шт.
1
490855R1
LARGE PLATE
CLIP, attaching plate #2
1шт.
2
463069R1
SPACER
attaching plate #1
2шт.
2
490862R1
SPACER
attaching plate #2
2шт.
3
467497R93
STEERING KNUCKLE
STANDARD ASSY, wheel #1
1шт.
472634R1
WASHER
special #1
1шт.
69442D
NUT
3/4-16 slt hex. #1
1шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), , #1 1/8" x 1 1/4"
1шт.
3
490859R2
SUPPORT ASSY.
STANDARD ASSY, wheel #2
1шт.
469873R1
WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk
29/32 x 1-3/4 x 11 ga
1шт.
70120D
SLOTTED NUT,7/8"-14
NUT, 7/8-14 slt hex.
1шт.
4
463063R1
BUSHING
std #1, for 4 furrow 18, 5 furrow 16 & 18 in.
1шт.
4
490858R1
SPACER
BUSHING, standard #2
1шт.
5
477908R92
BAR
ASSY, latch #1
2шт.
5
490863R2
BAR
ASSY, latch #2, machines built thru 1978
2шт.
5
131718C1
BAR
ASSY, latch, machines built 1979 & since
2шт.
6
463072R12
LATCH ASSY.
LATCH ASSY
1шт.
21714R1
WASHER
.906 x 1.500 x .105
1шт.
13121R1
Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"
1шт.
7
TIRE, pneumatic
1шт.
8
TUBE, pneumatic
1шт.
9
455169R92
WHEEL
ASSY, 15 in. #1
1шт.
9
463036R1
WHEEL (STEERING)
WHEEL ASSY, 14 in. #1
1шт.
463036r1 has four bolt holes as shown in picture - 481344r91 has 6 bolt holes kl 5/12/97
1шт.
9
481344R91
WHEEL
ASSY, 14 in. #2
1шт.
10
651194R1
CAP
wheel #1
1шт.
10
663906R1
CAP
wheel #2
1шт.
11
651815R91
BEARING ASSY,7.508" ID x 17.82" OD x 6"
BEARING ASSY, outer cone #1
1шт.
11
651815R91GV
BEARING CONE
Value, Cone Bearing
1шт.
12
651814R1
BEARING CUP
BEARING, outer cup #1
1шт.
13
472220R21
HUB
W/SET SCREW, wheel
1шт.
443804
SCREW, 1/4-28 x 1/4 C-Z slt-ov-pt hdls set
1шт.
13
465496R11
HUB
ASSY, wheel #2
1шт.
14
663557R91
BEARING ASSY,1.625" ID x 2.892" OD x 0.77"
BEARING ASSY, inner cone #2
1шт.
15
472222R1
SLEEVE
oil seal wear #1
1шт.
15
654675R1
RING
SLEEVE, oil seal wear #2
1шт.
16
472221R91
SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk
wheel hub oil #1
1шт.
16
654674R91
OIL SEAL
wheel hub oil #2
1шт.
17
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
FITTING, 1/4-28 NF str lub for wheel hub
1шт.
18
651817R1GV
BEARING CUP
Value, Bearing Cup
1шт.
351079R1
BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"
1/2-20 x 15/16 conical hd #1 hub
4шт.
18
663558R1
BEARING CUP
BEARING, inner cup #2
1шт.
549962R1
BOLT,1 1/2" - 20 x 1 1/2", Class 3
1/2-20 wheel hub #2
1шт.
19
477910R1
LARGE PLATE
PLATE, wheel attaching #1
2шт.
543124R1
HEADED PIN
PIN, 1/2 x 2-3/4 std-hd
2шт.
520175R1
CLIP
PIN, quick attachable cot.
2шт.
463154R2
BOLT
BOLT, 1-14 x 4-1/4 dld hex-hd
1шт.
427651
SLOTTED NUT,1"-14, G5
NUT, 1-14 slt hex.
1шт.
432-1232
COTTER PIN,3/16" OD x 2" L
Pin, Split (Cotter), 3/16" x 1 3/4"
1шт.
15672R1
PLOW BOLT,#3, 5/8" - 11 x 3", Gr 2
BOLT, 5/8-11 x 3 no. 3 plow hd
2шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
102639
NUT,5/8"-11, G5
2шт.
271565
SHIELD,Hex, 5/8" - 11 x 2 3/4", Gr 5
SCREW, 5/8-11 x 2-3/4 hex-hd cap
2шт.
9413944
NUT
5/8-11 x 2-3/4 hex-hd cap
2шт.
9413944
NUT
5/8-11 hex. lock
2шт.
17603R1
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2
1/2-13 x 2-3/4 hex-hd mach
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
102637
NUT,1/2"-13, G5
2шт.
19
490856R1
PLATE, wheel attaching #2, machines built thru 1978
1шт.
19
131763C1
LARGE PLATE
PLATE, gauge wheel, machines built 1979 & since
1шт.
490857R1
BOLT
BOLT, 1-14 x 5 dld hex-hd
1шт.
427652
SLOTTED NUT,1"-14, G5
NUT, 1-NF slt type 5
1шт.
137258
COTTER PIN
3/16" x 1 3/4"
1шт.
296849R1
BOLT (SPREADER),3/4"-10 x 3 1/2", G5
BOLT, 3/4 x 3-1/2 pln plow type 5
2шт.
473244R1
LOCK NUT,3/4"-10, GB
NUT, 3/4-10 two way hex lock
2шт.
271729
BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5
5/8 x 3-1/2 type 5
2шт.
9413948
NUT,5/8"-11, GA
5/8 cad p/t lock type 1
2шт.
22448R1
BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8
1/2 x 3-1/2 type 8
4шт.
474848R1
LOCK NUT,1/2"-13, GB
NUT, 1/2-13 hex lock
4шт.
20
490856R1
PLATE, wheel attaching, machines built thru 1978
1шт.
20
131762R1
PLATE ASSY, gauge wheel, machines built 1979 & since
1шт.
Выбрано товаров: 76
