Запчасти Case IH 155 (AQ-5) - REAR FURROW WHEEL

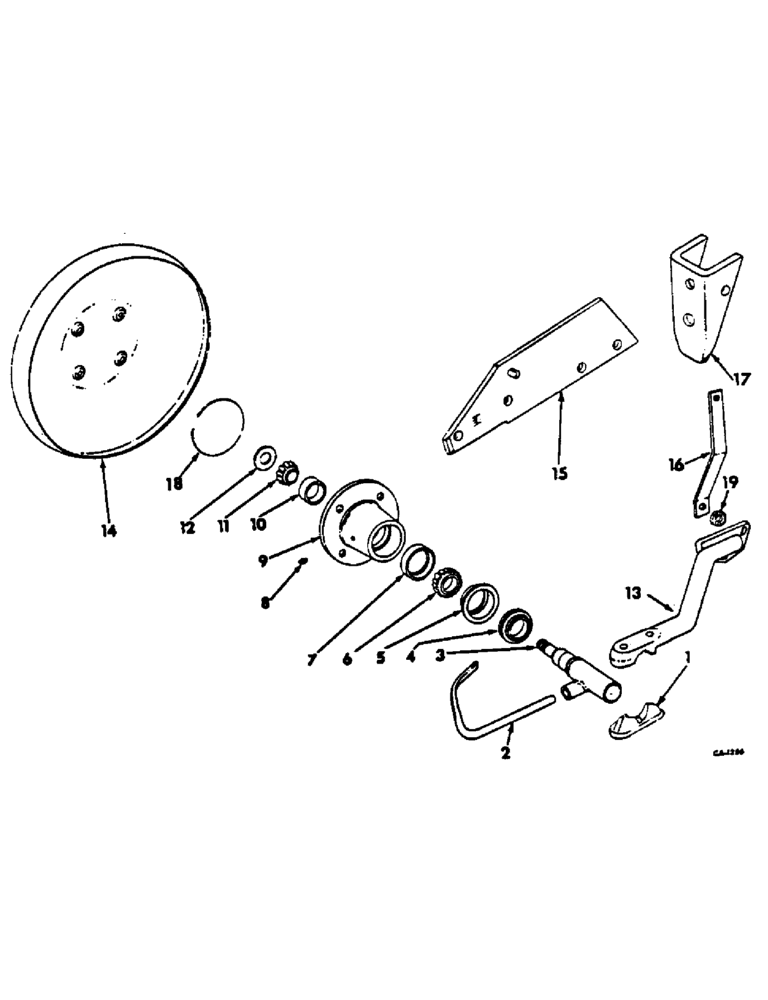

Схема запчастей Case IH 155 - (AQ-5) - REAR FURROW WHEEL
16
17
6
4
12
14
2
5
18
15
19
1
8
7
9
3
13
11
10

Артикул

Название

Примечание

Количество

1

542737R1

SUPPORT

CAP, rear axle support

2шт.

22448R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8

1/2 x 3-1/2 type 8

4шт.

131101

LOCK WASHER

1/2"

4шт.

21330R1

NUT,1/2"-13, G8

1/2 type 8

4шт.

2

478222R1

KNIFE

BLADE, LH scraper

1шт.

2

478223R1

KNIFE

BLADE, RH scraper

1шт.

3

478216R91

SPINDLE

ASSY

2шт.

102637

NUT,1/2"-13, G5

2шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2-13 x 3/4 sq-hd cup-pt set

2шт.

69442D

NUT

3/4-16 slt hex. jam

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

4

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil

2шт.

5

472222R1

SLEEVE

oil seal

2шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, inner cone

2шт.

7

651817R1

BEARING CUP

BEARING, inner cup

2шт.

7

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

8

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF str lub

2шт.

9

478218R2

HUB

furrow wheel

2шт.

62177C1

PLOW BOLT

BOLT, 7/16 x 1-1/4 znp special plow

8шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

9418646

NUT,7/16"-14, G8

7/16-14 type 8 znp hex.

8шт.

10

651814R1

BEARING CUP

BEARING, outer cup

2шт.

11

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, outer cone

2шт.

11

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

12

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

2шт.

13

488423R1

SUPPORT

ASSY, axle RH

1шт.

13

542895R1

SUPPORT

ASSY, axle LH

1шт.

14

542488R1

WHEEL

rear furrow

2шт.

15

542489R1

SUPPORT

LANDSIDE ASSY, RH

1шт.

15

542490R1

SPACER

LANDSIDE ASSY, LH

1шт.

541351R1

BOLT,5/8" - 18 x 3"

5/8 x 3 sq-hd mach

2шт.

62178C1

PLOW BOLT

BOLT, 7/16 x 1-3/4 znp

2шт.

62179C1

PLOW BOLT

BOLT, 7/16 x 2-1/8 type 8 znp

2шт.

CP15226

PLOW BOLT,5/8" - 11 x 3", Gr 5

BOLT, 5/8 x 3 no. 3 plow

4шт.

18526R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 nylon insert

4шт.

225861

NUT,5/8"-18, G8

2шт.

102639

NUT,5/8"-11, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

16

488338R1

SUPPORT

reinforcing strap

2шт.

17

542495R1

SUPPORT

STOP, beam

2шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

SCREW, 5/8-11 x 4-1/2 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

NLS

NO LONGER SERVICED

7/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex.

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

18

41-3044

PLUG,Exp, 2 3/4"

2-3/4 expansion

2шт.

19

523011R1

WASHER

support adj

4шт.

Выбрано товаров: 47
