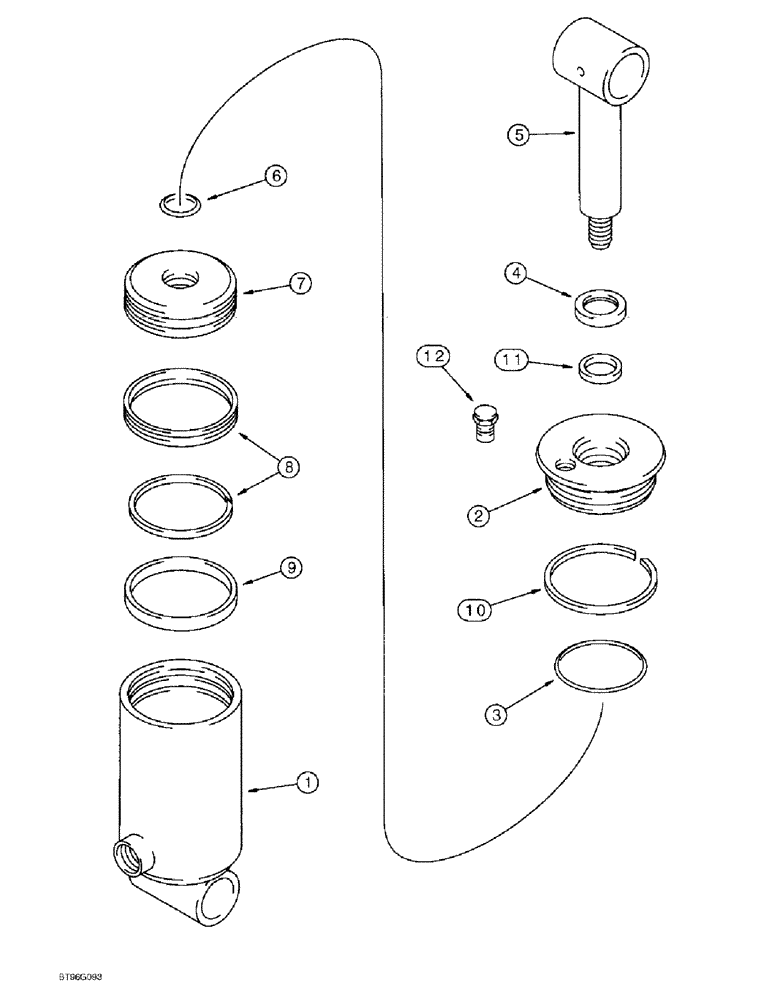

Запчасти Case IH 145 (08-07) - AUTOMATIC TRIP BEAM HYDRAULIC CYLINDER, 4 ID X 4-1/2 INCH STROKE (08) - HYDRAULICS

1272225C91

CYLINDER ASSY.,38.1mm Rod, 105mm Stroke

CYLINDER ASSEMBLY - 102 (4) ID x 114 mm (4-1/2 inch) stroke, automatic trip beam

1шт.

1272225C91R

REMAN-HYD CYLINDER

145 CASE IH MOLDBOARD PLOW

1шт.

1272225C91C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order 1272225C91 complete cylinder)

1шт.

2

133389C2

CYLINDER

GLAND - cylinder, front

1шт.

3

238-5240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

Gland seal -240, 70 Duro, 3.734" ID x .139" Thk

1шт.

4

403460R1

WIPER SEAL,38mm ID x 50.9mm OD x 7.94mm Thk

WIPER - seal, piston rod

1шт.

5

133381C1

ROD

- piston

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Piston rod to piston

1шт.

7

1272224C1

PISTON

- cylinder

1шт.

8

1272226C1

SEALING RING

- piston, with extrusion ring

1шт.

9

383006R1

RING

- wear, piston

1шт.

10

140600C1

RETAINING WIRE

WIRE - retaining, bulk, 12-1/2 inch (319 mm) long, cut to length as required

1шт.

11

119203C1

SEAL

SEAL - piston rod

1шт.

12

106671

LUBE NIPPLE,1/8"-27 NPT x .50" lg, Press Relief

VALVE - pressure relief

1шт.

1272507C91

SEAL KIT

- seal, cylinder repair, no longer available, order REF. 3, 4, 6 and 8 - 12

1шт.
