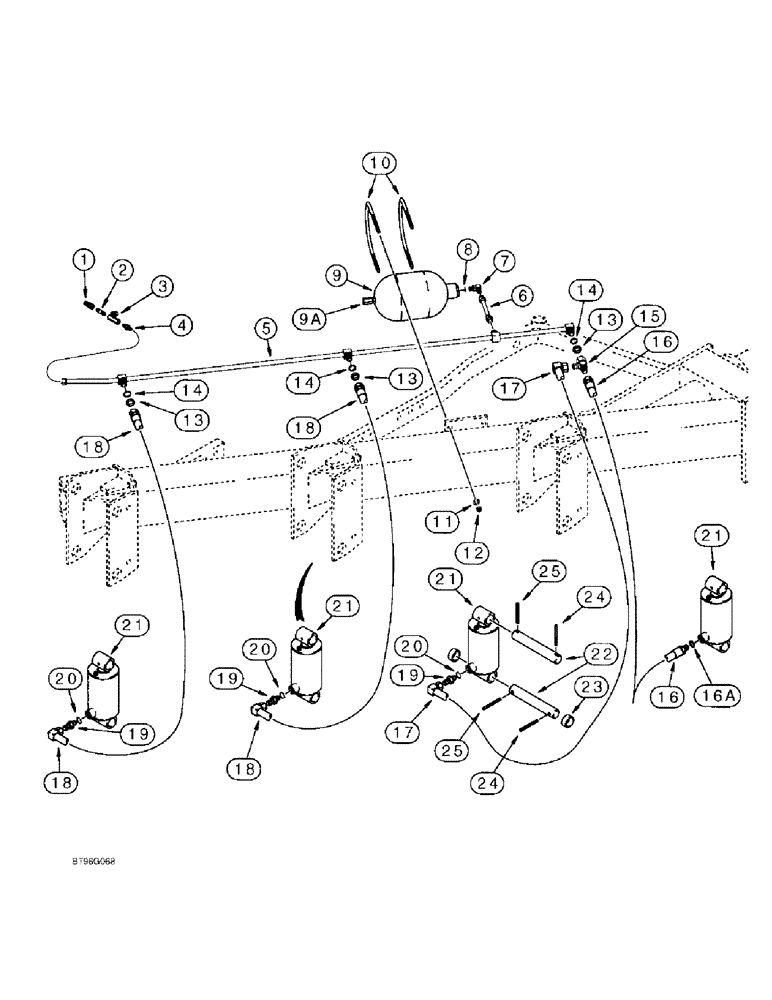

Запчасти Case IH 145 (08-06) - AUTOMATIC TRIP BEAM HYDRAULICS (08) - HYDRAULICS

1

1272770C2

COUPLING, BREAK AWAY

COUPLING - quick disconnect, male

1шт.

2

1256878C1

NIPPLE, LUBE

NIPPLE - special, Serial Range: coupler-valve

1шт.

3

122825C1

VALVE

- flow control

1шт.

4

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 7/8-14 flare x 1/2 inch PT

1шт.

5

131684C1

TUBE

- manifold (used with 4 furrow plows)

1шт.

5a

131790C1

TUBE

- manifold (used with 3 furrow plows)

1шт.

6

122813C1

HYD TUBE,0.625" OD, 147 mm Length

TUBE - manifold to accumulator

1шт.

7

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 7/8-14 flare x 3/4-16 inch adj O-ring boss

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

195418A1

ACCUMULATOR

TANK - accumulator, used on plows 1995 and after, Inc.: 9A, 10, 11, and 12

1шт.

When replacing accumulator tank on plows built prior to 1995, order Accumulator Service Kit, P/N 195963A1. It includes one 122826C2 mounting plate which is not available except as a component of 195963A1 kit.

1шт.

9a

122825C1

VALVE

- filler, accumulator tank

1шт.

When replacing accumulator tank on plows built prior to 1995, order Accumulator Service Kit, P/N 195963A1. It includes one 122826C2 mounting plate which is not available except as a component of 195963A1 kit.

1шт.

10

194968A1

U-BOLT,5/16" - 18 x 7.88", Grade 5

- accumulator mounting (used on plows 1995 and after)

2шт.

When replacing accumulator tank on plows built prior to 1995, order Accumulator Service Kit, P/N 195963A1. It includes one 122826C2 mounting plate which is not available except as a component of 195963A1 kit.

1шт.

11

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

4шт.

When replacing accumulator tank on plows built prior to 1995, order Accumulator Service Kit, P/N 195963A1. It includes one 122826C2 mounting plate which is not available except as a component of 195963A1 kit.

1шт.

12

231-4215

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

When replacing accumulator tank on plows built prior to 1995, order Accumulator Service Kit, P/N 195963A1. It includes one 122826C2 mounting plate which is not available except as a component of 195963A1 kit.

1шт.

13

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

2-3шт.

14

495-81051

WASHER,29/32" x 1 1/4" x .060"

- flat, 29/32 x 1-1/4 x 1/16 inch

2-3шт.

15

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- swivel, 7/8-14 inch flare branch x flare x swivel

1шт.

16

122808C1

HYDRAULIC HOSE

HOSE - 762 mm (30 inch) long

1шт.

16a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

17

122902C1

HYDRAULIC HOSE

HOSE - 686 mm (27 inch) long

1шт.

18

131685C2

HOSE

- 737 mm (29 inch) long

1-2шт.

19

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss

2-3шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

21

1272225C91

CYLINDER ASSY.,38.1mm Rod, 105mm Stroke

CYLINDER ASSEMBLY - 102 (4) ID x 114 mm (4-1/2 inch) stroke (See Figure 08-07)

3-4шт.

1272225C91R

REMAN-HYD CYLINDER

145 CASE IH MOLDBOARD PLOW

3-4шт.

1272225C91C

CORE-HYD CYLINDER

Return Number

1шт.

22

122625C1

PIN,34.92mm OD x 230mm L

- cylinder mounting

6-8шт.

23

1263418C1

SPACER

- mounting pin

6-8шт.

24

438-31432

PIN,5.54mm OD x 50.8mm L, Coiled

12-16шт.

25

438-12432

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

12-16шт.

195963A1

ACCUMULATOR

KIT, Accumulator Service

1шт.
