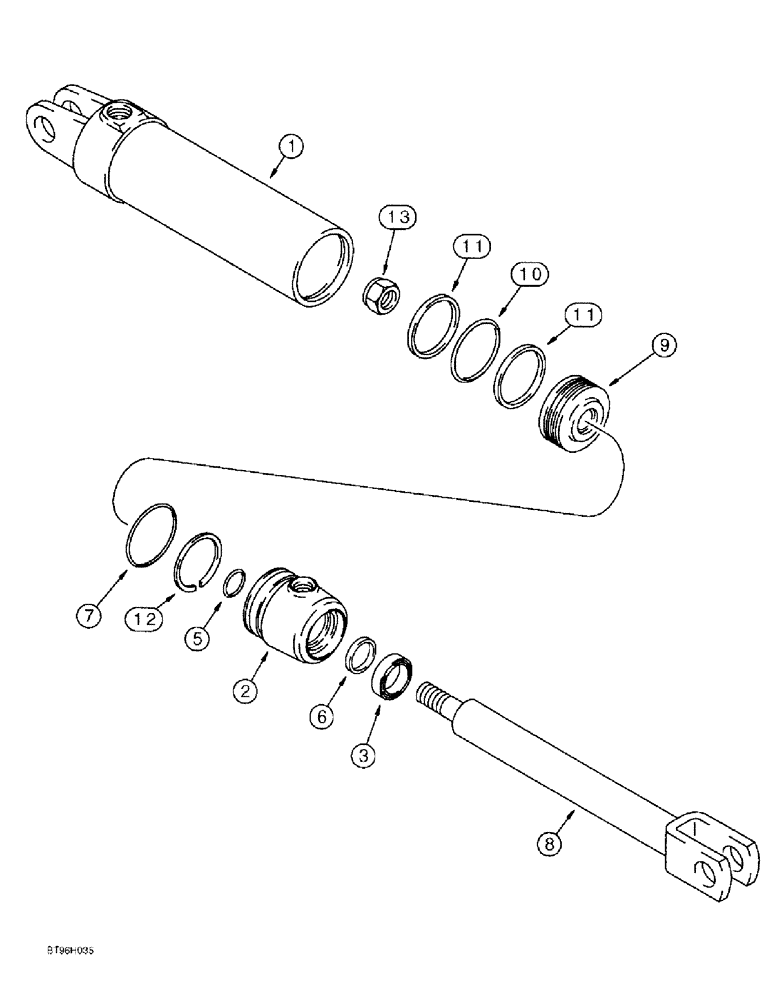

Запчасти Case IH 145 (08-05) - ROLL OVER HYDRAULIC CYLINDER, WITH WELDED BODY (08) - HYDRAULICS

145493C93

CYLINDER

ASSEMBLY - 76 (3) ID x 203 mm (8 inch) stroke, roll over

1шт.

Order cylinder assembly (113528A1), elbow (113639A1), pin (128723C5), and pin (810751C1)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.

2

145494C3

HEAD

- cylinder, front

1шт.

3

403460R1

WIPER SEAL,38mm ID x 50.9mm OD x 7.94mm Thk

WIPER - seal, piston rod (Replaces seal and seal retainer)

1шт.

5

238-6325

O-RING,0.21" Thk x 1.475" ID, -325, Cl 6, 90 Duro

- 1-1/2 ID x 3/16 inch wide, small, rod to piston

1шт.

6

403622R1

BACK-UP RING

RING - backup

1шт.

7

238-6232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

Cylinder head -232, 90 Duro, 2.734" ID x .139" Thk

1шт.

8

145495C1

ROD

- piston

1шт.

9

145497C1

PISTON

- cylinder

1шт.

10

238-6334

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

- 2-5/8 ID x 3/16 inch wide, piston

1шт.

11

381872R1

WASHER

RING - backup, piston

2шт.

12

381873R1

RETAINER

RING - retaining, head to cylinder, order 140600C1 retainer and cut to 9-1/4 inch length

1шт.

13

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

145656C2

KIT

- seal, cylinder repair, no longer available, order components, Includes: REF 3 - 7 and 10 - 12

1шт.
