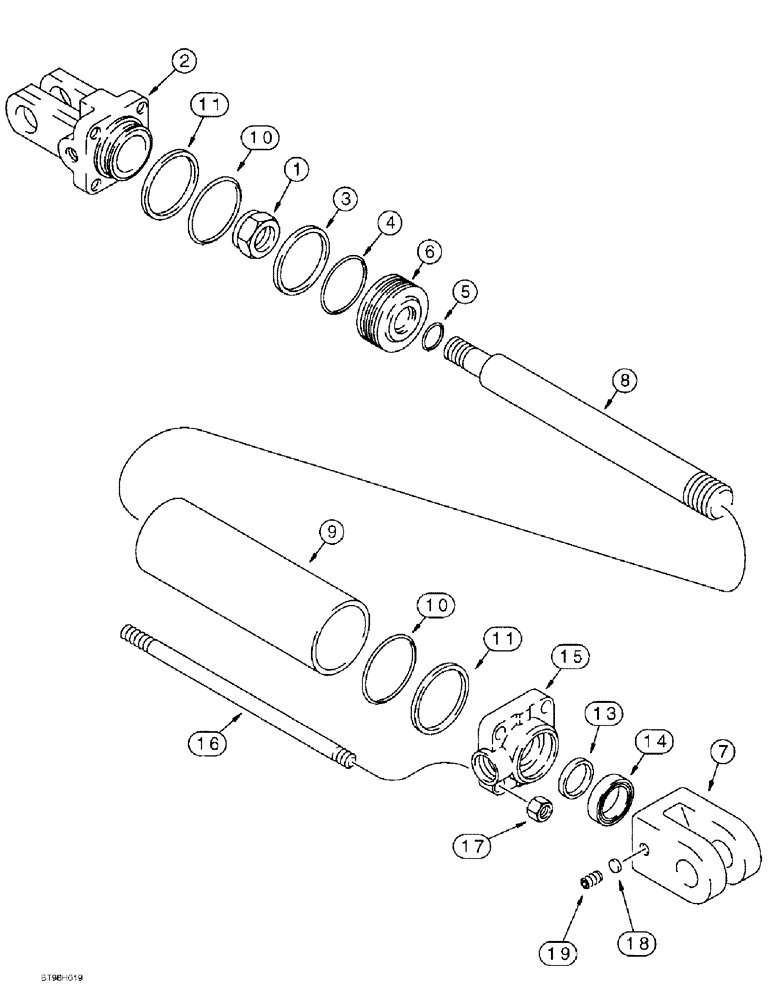

Запчасти Case IH 145 (08-03) - ROLL OVER HYDRAULIC CYLINDER, WITH TIE BOLTS (08) - HYDRAULICS

92889C91

CYLINDER

ASSEMBLY - 76 (3) ID x 203 mm (8 inch) stroke, roll over

1шт.

Order cylinder assembly (113528A1), elbow (113639A1), pin (128723C5), and pin (810751C1)

1шт.

1

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

2

93222C1

HEAD

- cylinder, rear

1шт.

3

387373R1

RING

SEAL - piston

1шт.

4

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

1шт.

5

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

6

145225C2

PISTON

- cylinder

1шт.

7

1282366C1

RAM FORK

CLEVIS - piston rod

1шт.

8

1272813C1

ROD

- piston

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.

Order cylinder assembly (113528A1), elbow (113639A1), pin (128723C5), and pin (810751C1)

1шт.

10

238-6232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

2шт.

11

1272763C1

RING

- backup

2шт.

13

119203C1

SEAL

SEAL - piston rod

1шт.

14

403460R1

WIPER SEAL,38mm ID x 50.9mm OD x 7.94mm Thk

WIPER - seal, piston rod

1шт.

15

93223C1

HEAD

- cylinder, front

1шт.

Order cylinder assembly (113528A1), elbow (113639A1), pin (128723C5), and pin (810751C1)

1шт.

16

93225C1

BOLT

- cylinder retaining

4шт.

17

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

4шт.

18

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

19

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

1шт.
