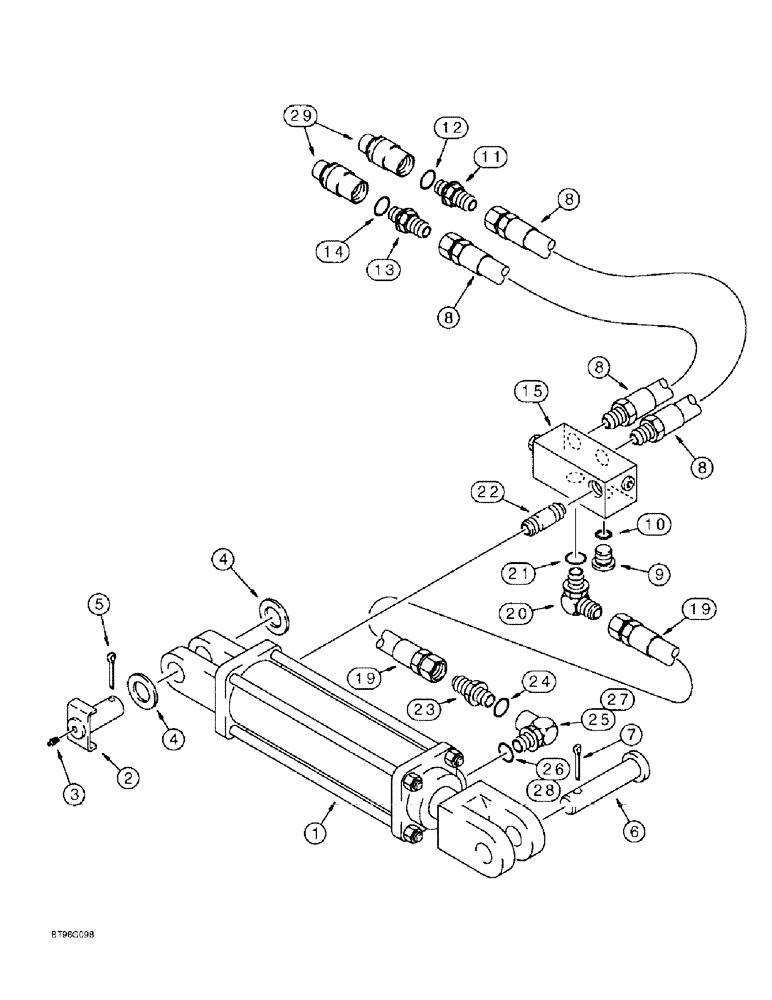

Запчасти Case IH 145 (08-01) - ROLL OVER CYLINDER HYDRAULICS AND CONNECTIONS, PLOWS WITH TIE BOLT HYDRAULIC CYLINDER (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - 76 (3) ID x 203 mm (8 inch) stroke (See Figures 08-03 and 08-04 for correct cylinder)

1шт.

2

128723C5

CLEVIS PIN

PIN - cylinder, locking

1шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

4

495-81068

WASHER,1 1/32" x 1 1/2" x .030"

- flat, 1-1/32 x 1-1/2 x 1/32 inch

2шт.

5

432-2032

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), 5/16" x 2"

1шт.

6

810751C1

PIN

- headed, 1 x 3-1/2 inch

1шт.

7

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

8

1333872C1

HYDRAULIC HOSE,0.50" ID x 50.00"

2шт.

9

9410360

PLUG

- hex, 7/8-14 inch O-ring boss

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

1333873C1

ADAPTER

- restrictor, special

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

1256876C93

KIT

- cylinder check valve

1шт.

15

1285956C91

VALVE

ASSEMBLY - cylinder check

1шт.

16

1286325C91

VALVE

SPOOL - check valve, not shown

1шт.

1286445C1

SEAL KIT

- seal, check valve

1шт.

17

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Not shown

1шт.

18

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

19

1978873C1

HOSE

- 350 mm (13-3/4 inch) long, check valve to cylinder port

1шт.

20

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - straight, 1/2 PT x 1-1/8 inch

1шт.

23

55565C1

UNION

ADAPTER - restrictor, special

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

25

371357R91

ELBOW

- 90 degree, special (use with cylinder 92889C91)

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Use with elbow 371357R91

1шт.

27

113639A1

ELBOW

- 90 degree, special (use with cylinder 113828A1)

1шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Use with elbow 113639A1

1шт.

29

1272399C2

QUICK MALE COUPLING

COUPLER - self sealing, male, 7/8 inch NF

1шт.

29

1341843C1

QUICK MALE COUPLING

COUPLER - self-sealing male, 7/8-14 inch thread

1шт.

29

1285718C2

QUICK MALE COUPLING

COUPLER - self-sealing male, 3/4-16 inch thread

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Not shown

1шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Not shown

1шт.

32

218-5261

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

- straight, 7/8-14 male O-ring boss x 3/4 inch female, not shown

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Not shown

1шт.

34

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER - straight, 3/4-16 male O-ring boss x 7/8-14 inch female, not shown

1шт.

35

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Not shown

1шт.

36

1282459C1

PACKAGE

KIT - coupler tag, not shown

1шт.
