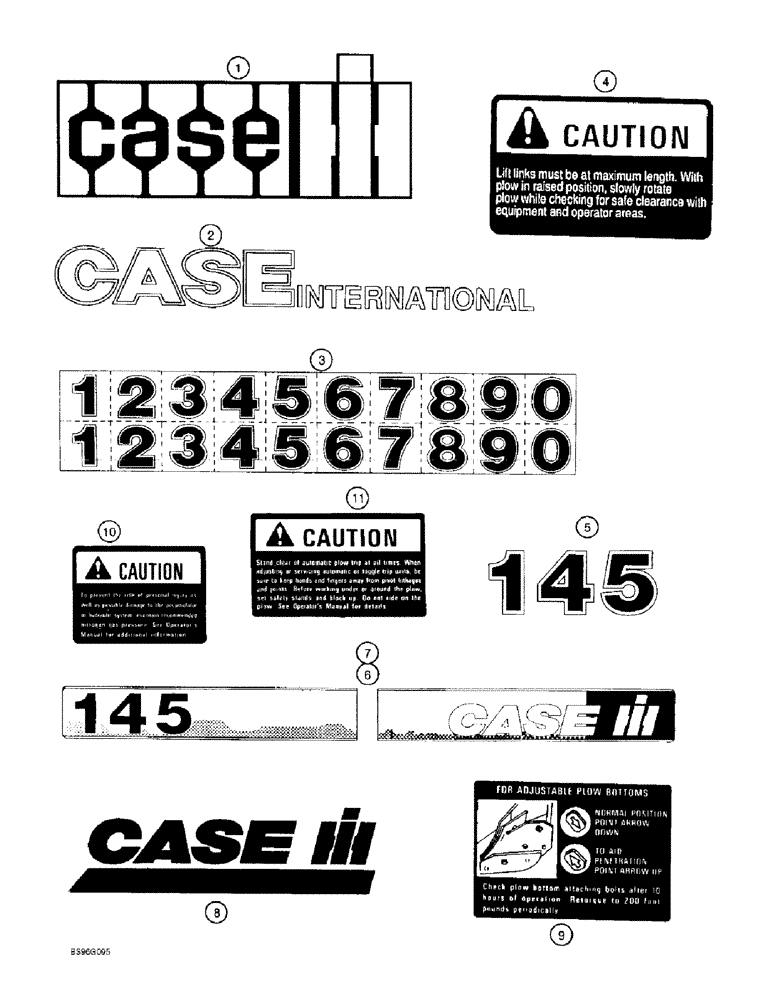

Запчасти Case IH 145 (09-14) - DECALS, CASE IH (09) - CHASSIS/ATTACHMENTS

95995C91

PACKAGE

KIT - decal, CaseIH trademark and model designation

1шт.

1

95730C1

DECAL

- CaseIH trademark, 42 x 104 mm

2шт.

1

95731C1

DECAL

- Case IH trademark, 64 x 156 mm

2шт.

1

91401C1

DECAL

- Case IH trademark, 84 x 208 mm

2шт.

1

95732C1

DECAL,Case IH Logo

- Case IH trademark, 106 x 260 mm

2шт.

2

1973422C1

DECAL

- Case International

2шт.

3

96009C1

DECAL

- model designation, 25 mm

2шт.

3

96010C1

DECAL

- model designation, 40 mm

2шт.

3

96011C1

DECAL

- model designation, 55 mm

2шт.

3

96012C1

DECAL

- model designation, 70 mm

2шт.

95997C91

KIT

- decal, model number

1шт.

3

96013C1

DECAL

- model designation, 84 mm

2шт.

3

96014C1

DECAL

- model designation, 86 mm

2шт.

3

96015C1

DECAL

- model designation, 114 mm

2шт.

4

543301R1

CAUTION DECAL

DECAL - Caution, lift links must be at maximum length

1шт.

5

96117C1

DECAL

- 145 model designation, if used

1шт.

6

199560A1

DECAL

- 145 Case IH, right-hand

1шт.

7

199559A1

DECAL

- 145 Case IH, left-hand, not shown

1шт.

8

192848A2

DECAL

- Case IH, 70 x 255 mm

1шт.

9

2753186R2

DECAL

- for adjustable plow bottoms (operating instructions) English

1шт.

9

141613A1

DECAL

- for adjustable plow bottoms (operating instructions) French, not shown

1шт.

10

131702C1

PRODUCT GRAPHIC

DECAL - Caution, to prevent the risk of personal injury

1шт.

11

122878C1

DECAL

- Caution, stand clear of automatic plow trip at all times

1шт.
