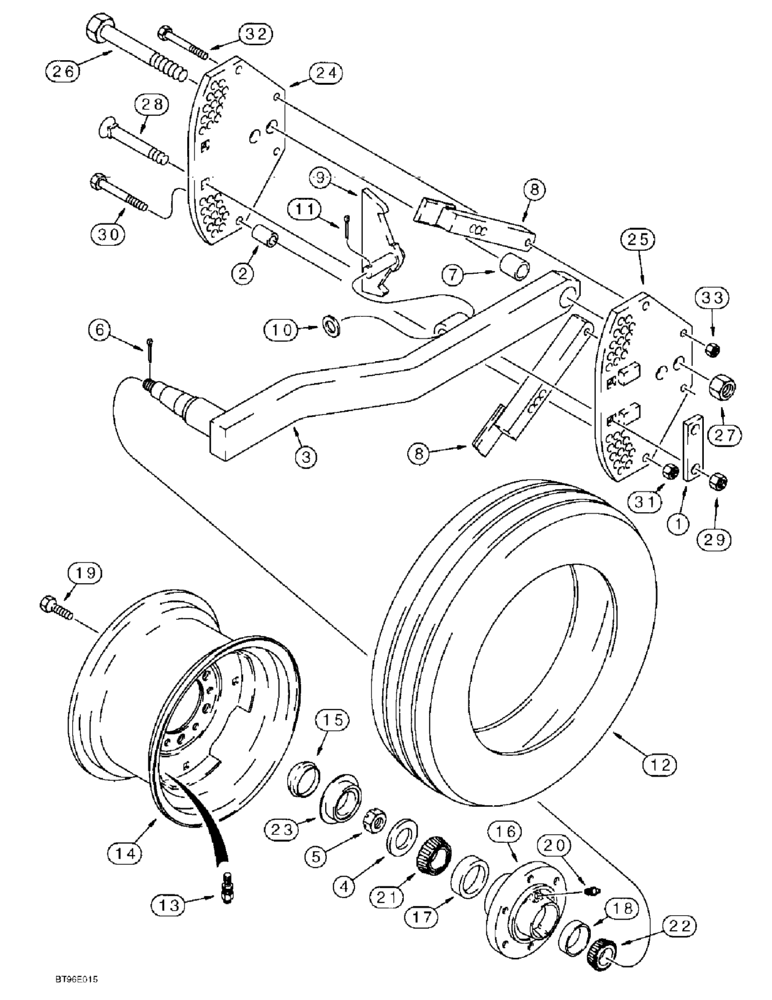

Запчасти Case IH 145 (09-12) - GAUGE WHEEL, 5 FURROW RIGID PLOWS, AUTOMATIC TRIP PLOWS BUILT 1979 AND AFTER, W/ 6 BOLT WHEEL HUBS (09) - CHASSIS/ATTACHMENTS

1

490855R1

LARGE PLATE

RETAINER - mounting plate

1шт.

2

490862R1

SPACER

- mounting plate

2шт.

3

1337969C1

SUPPORT

ARM - gauge wheel

1шт.

4

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

- flat, special, hardened

1шт.

5

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted, special, 7/8 inch NC

1шт.

6

432-832

COTTER PIN,1/8" x 2"

1/8" x 2"

1шт.

7

490858R1

SPACER

BUSHING - gauge wheel arm

1шт.

8

131718C1

BAR

- latch

2шт.

9

463072R12

LATCH ASSY.

LATCH - gauge wheel arm

1шт.

10

495-81056

WASHER,29/32" x 1 1/2" x 3/64

- flat, 29/32 x 1-1/2 x 7/64 inch

1шт.

11

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

12

REF

INSTRUCTION

TIRE - 9.5L x 14 High Flotation tubeless

1шт.

13

810768C1

VALVE

- inflation

1шт.

14

481344R91

WHEEL

- 14 (356) x 8 inch (203 mm)

1шт.

15

224066C1

HUB CAP

CAP - wheel hub

1шт.

16

606468R21

HUB

ASSEMBLY - wheel, 6 bolt

1шт.

17

651817R1

BEARING CUP

CUP - tapered roller bearing, outer

1шт.

17

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

Part of Heavy Duty Wheel Bearing Kit P/N 123096A2.

1шт.

18

663558R1

BEARING CUP

CUP - tapered roller bearing, 2-57/64 inch OD, inner

1шт.

Part of Heavy Duty Wheel Bearing Kit P/N 123096A2.

1шт.

19

277538A1

BOLT,1/2" - 20 x 1.42"

- hex conical, 1/2 NF x 1-5/32 inch, Replaces: 549962R1

6шт.

20

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

21

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - tapered roller bearing, outer

1шт.

Part of Heavy Duty Wheel Bearing Kit P/N 123096A2.

1шт.

22

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - tapered roller bearing, 1-5/8 inch ID, inner

1шт.

Part of Heavy Duty Wheel Bearing Kit P/N 123096A2.

1шт.

23

606556R91

OIL SEAL

SEAL - oil, with sleeve

1шт.

Part of Heavy Duty Wheel Bearing Kit P/N 123096A2.

1шт.

24

131763C1

LARGE PLATE

PLATE - gauge wheel attaching, without stops

1шт.

25

131762C1

LARGE PLATE

PLATE - gauge wheel attaching, with stops

1шт.

26

413-1680

BOLT,Hex, 1" - 8 x 5", Gr 5

- hex, 1 NC x 5 inch

1шт.

27

231-41116

NUT,1"-8, GB

NUT - hex, self-locking, 1 inch NC

1шт.

28

419-31256

CARRIAGE BOLT,#3, 3/4" - 10 x 3 1/2", Gr 5

BOLT - plow, 3/4 NC x 3-1/2 inch

2шт.

29

231-42112

NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

2шт.

30

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

4шт.

31

231-41110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

4шт.

32

426-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

2шт.

33

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

123096A2

WHEEL BEARING KIT

KIT, Heavy Duty Wheel Bearing Replacement

1шт.
