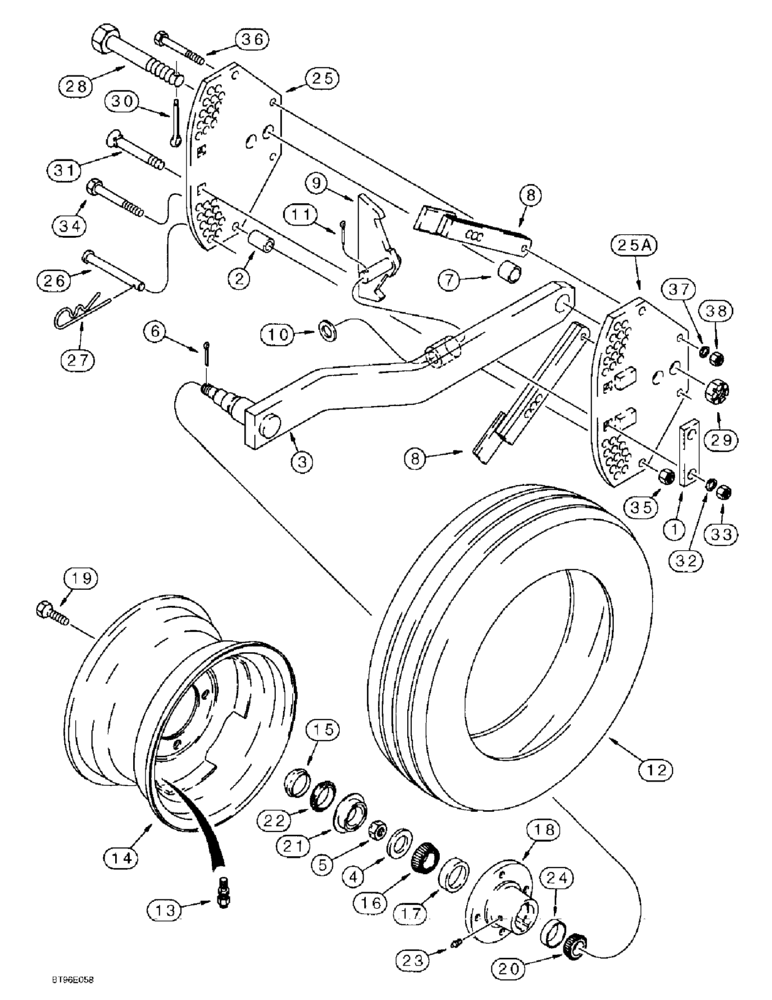

Запчасти Case IH 145 (09-11) - GAUGE WHEEL, 3 AND 4 FURROW RIGID AND SPRING TRIP PLOWS (09) - CHASSIS/ATTACHMENTS

1

463070R1

LARGE PLATE

RETAINER - mounting plate

1шт.

2

463069R1

SPACER

- mounting plate

2шт.

3

467497R93

STEERING KNUCKLE

ARM - gauge wheel

1шт.

If looking for a 6 bolt hub arm/standard see Fig 09-12

1шт.

4

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, special, 25/32 x 1/4 x 1/8 inch

1шт.

5

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

1шт.

6

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

7

463063R1

BUSHING

- gauge wheel arm

1шт.

8

477908R92

BAR

- latch

2шт.

9

463072R12

LATCH ASSY.

LATCH - gauge wheel arm

1шт.

10

495-81056

WASHER,29/32" x 1 1/2" x 3/64

- flat, 29/32 x 1-1/2 x 7/64 inch

1шт.

11

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

12

REF

INSTRUCTION

TIRE - 9.5L x 14 High Flotation tubeless

1шт.

13

810768C1

VALVE

- inflation

1шт.

14

455169R92

WHEEL

- 15 x 4-1/2 inch, if used

1шт.

14

T25852

RIM

WHEEL - 14 x 5 inch, if used

1шт.

15

651194R1

CAP

- wheel hub

1шт.

16

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - tapered roller bearing, outer

1шт.

16

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

17

651814R1

BEARING CUP

CUP - tapered roller bearing, outer

1шт.

18

472220R2

HUB

- wheel, four bolt mount

1шт.

19

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

- hex conical, 1/2 NF x 15/16 inch

4шт.

20

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - tapered roller bearing, inner

1шт.

21

472222R1

SLEEVE

- oil seal

1шт.

22

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil

1шт.

23

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

24

651817R1

BEARING CUP

CUP - tapered roller bearing, inner

1шт.

24

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

25

477910R2

LARGE PLATE

PLATE - gauge wheel attaching, without stops

1шт.

25a

131762C1

LARGE PLATE

PLATE - gauge wheel attaching, with stops

1шт.

26

543124R1

HEADED PIN

PIN - 1/2 x 2-3/4 inch

2шт.

27

1970957C1

SPRING

PIN - cotter, hair, 3/16 inch

2шт.

28

463154R2

BOLT

BOLT - special

1шт.

29

425-1316

NUT,1"-14, G5

NUT - hex, slotted, 1 inch NS

1шт.

30

432-1228

COTTER PIN,3/16" x 1 3/4"

3/16" x 1 3/4"

1шт.

31

633661R1

CARRIAGE BOLT,#3, 5/8" - 11 x 3"

BOLT - flat head square neck, 5/8 NC x 3 inch

2шт.

32

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

33

425-1010

NUT,5/8"-11, G5

2шт.

34

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch

2шт.

35

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

36

24-844

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

2шт.

37

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

38

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.
