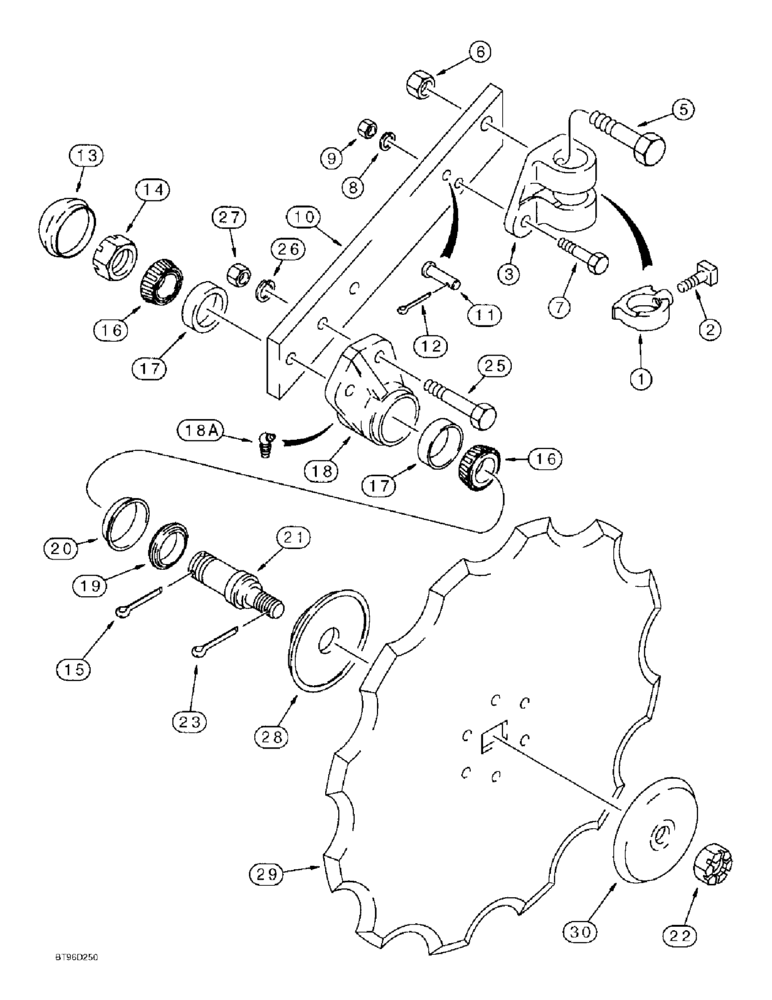

Запчасти Case IH 145 (09-10) - SIDE ARM ROLLING COULTERS, SHEAR BOLT TYPE WITH 17 INCH DISK (09) - CHASSIS/ATTACHMENTS

1

523345R21

COLLAR CLAMP

COLLAR ASSEMBLY - stop

2шт.

2

485-15020

SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"

SCREW - set, square head, 1/2 NC x 1-1/4 inch, cup point

1шт.

3

462273R3

SUPPORT ASSY.

BEARING - coulter arm, right-hand

1шт.

See Fig 09-06 and 09-07 for coulter shanks and clamps for mounting to main frame.

1шт.

4

462272R3

SUPPORT ASSY.

BEARING - coulter arm, left-hand, not shown

1шт.

5

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

2шт.

6

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

7

414-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

- hex, 7/16 NF x 1-3/4 inch

2шт.

8

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

9

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

2шт.

10

131517C92

LEVER

ARM ASSEMBLY - coulter

2шт.

11

439-1718

HEADED PIN,7/16" x 1 1/8"

PIN - headed, 7/16 x 1-1/8 inch, GR2

1шт.

12

432-1216

COTTER PIN,3/16" x 1"

1шт.

NSS

NOT SOLD SEPARAT

SPINDLE ASSEMBLY - coulter, left-hand, not serviced as an assembly, order items 13 through 17, item 18A, items 19 through 23 and item 24

1шт.

549827R92

HUB CAP

SPINDLE ASSEMBLY - coulter, right-hand

1шт.

13

518842R1

CAP

- hub

1шт.

14

519250R1

SLOTTED NUT

- hex, slotted, 1-1/4 inch NF

1шт.

15

432-832

COTTER PIN,1/8" x 2"

1/8" x 2"

1шт.

16

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - tapered roller bearing, spindle housing

2шт.

17

651817R1

BEARING CUP

CUP - tapered roller bearing, spindle housing

2шт.

17

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

18

541482R1

BEARING HOUSING,2.3275" ID x 3" OD x 2.44"

HOUSING - bearing, right-hand

1шт.

18a

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

FITTING - grease, 45 degree, 1/4-28 special taper x 13/16 inch

1шт.

19

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil

1шт.

20

472222R1

SLEEVE

- oil seal

1шт.

21

541480R1

SPINDLE

- coulter

1шт.

22

429-1314

NUT,7/8"-14, G8

NUT - hex, slotted, 7/8 inch NF, GR8

1шт.

23

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

24

541481R1

SUPPORT

HOUSING - bearing, left-hand, not shown

1шт.

25

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

4шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

27

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

28

523020R3

SUPPORT ASSY.

SUPPORT - disk, inside

2шт.

29

469191R3

BLADE

DISK - coulter, rippled edge, 17 inch

2шт.

30

523021R2

SUPPORT ASSY.

SUPPORT - disk, outside

2шт.
