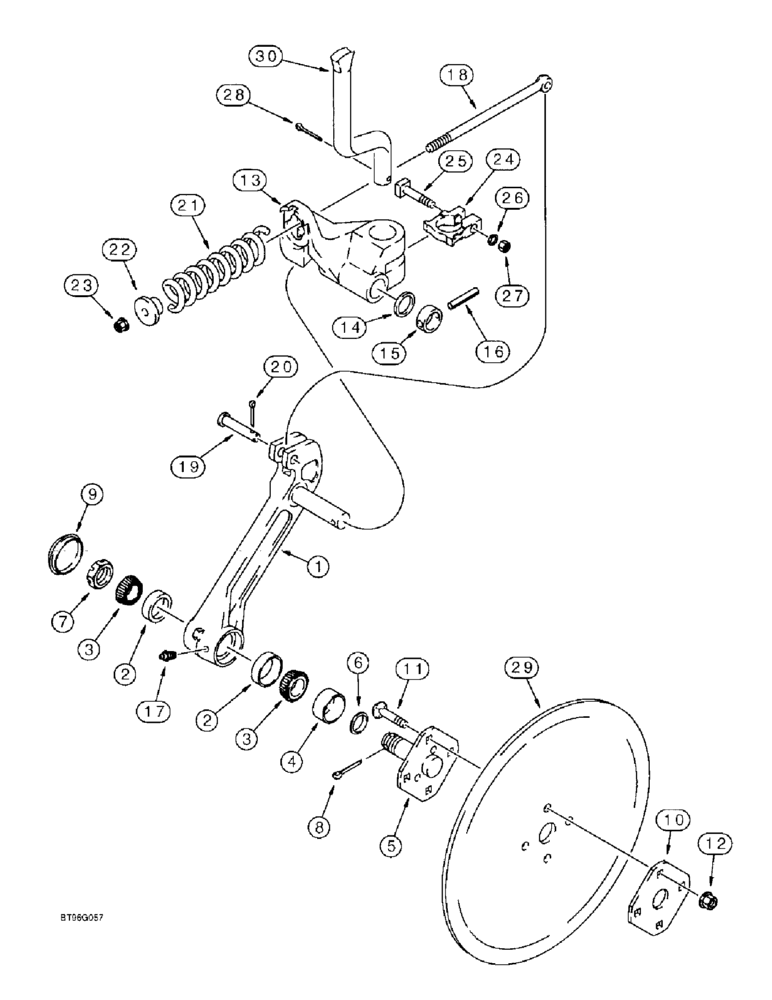

Запчасти Case IH 145 (09-09) - ROLLING COULTER, HEAVY DUTY SPRING CUSHION TYPE, WITH CAST MOUNTING ARM (09) - CHASSIS/ATTACHMENTS

1

224274C1

LEVER

ARM - coulter mounting, right-hand, cast

1шт.

1a

224293C1

ARM

- coulter mounting, left-hand, cast (not shown)

1шт.

2

651817R1

BEARING CUP

CUP - tapered roller bearing

2шт.

2

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - tapered roller bearing

2шт.

4

472633R1

BUSHING

SLEEVE - wear

1шт.

5

224063C1

HUB

SPINDLE - coulter

1шт.

6

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil

1шт.

7

519250R1

SLOTTED NUT

- hex, slotted, 1-1/4 inch NF

1шт.

8

432-832

COTTER PIN,1/8" x 2"

1/8" x 2"

1шт.

9

224066C1

HUB CAP

CAP - wheel hub

1шт.

10

224067C1

LARGE PLATE

SUPPORT - disk, outer

1шт.

11

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

4шт.

12

231-5348

FLANGE NUT,Flg, 1/2"-13

NUT - hex flange, self-locking, 1/2 inch NC

4шт.

13

224068C1

SUPPORT

- coulter, right-hand

1шт.

13a

224299C1

SUPPORT

- coulter, left-hand (not shown)

1шт.

14

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

- flat, 1-9/32 x 1-3/4 x 1/16 inch

1шт.

15

61570C1

FERRULE

COLLAR - coulter arm

1шт.

16

438-32032

PIN,5/16" x 2", Coiled

1шт.

17

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

18

480344R1

EYEBOLT,Spring, 5/8" - 11 x 299.70mm

- 5/8 inch NC

1шт.

19

439-1834

HEADED PIN,1/2" x 2 1/8"

PIN - headed, 1/2 x 2-1/8 inch, GR2

1шт.

20

432-1216

COTTER PIN,3/16" x 1"

1шт.

21

487698R1

SPRING

- cushion, 13-1/2 coils

1шт.

22

487697R1

CENTERING RING

RETAINER - spring

1шт.

23

231-41110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

1шт.

24

112844C1

COLLAR CLAMP

CLAMP - stop collar

1шт.

25

18929R1

BOLT,7/16" - 14 x 2 1/2", Gr 2

- square head, 7/16 NC x 2-1/2 inch

1шт.

26

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

27

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

1шт.

28

432-2036

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), 5/16" x 2 1/4"

1шт.

29

28341R1

PLOW DISC

DISK - coulter, rippled edge, 20 inch

1шт.

29

122567C1

DISC

DISK - coulter, 22 inch rippled edge

1шт.

30

REF

INSTRUCTION

SHANK -coulter

1шт.

See Fig 09-06 and 09-07 for coulter shanks and clamps for mounting to main frame.

1шт.
