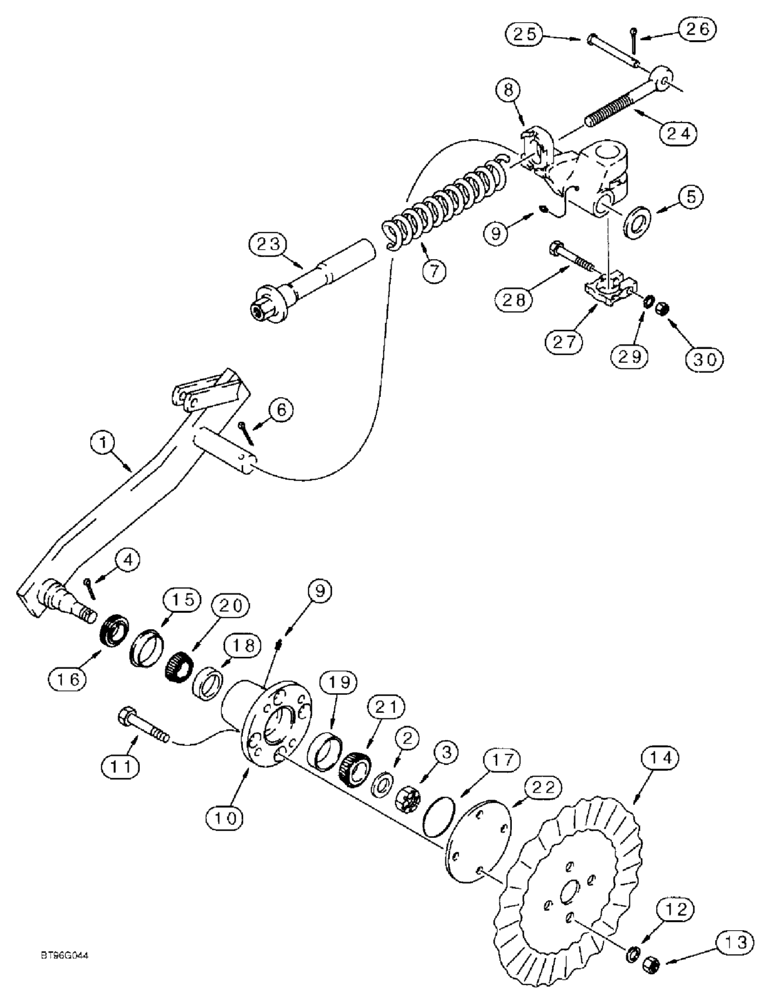

Запчасти Case IH 145 (09-08) - ROLLING COULTER, HIGH LIFT SPRING CUSHION TYPE, WITH WELDED MOUNTING ARM (09) - CHASSIS/ATTACHMENTS

1

112535C1

ARM

- coulter mounting, right-hand, welded

1шт.

1a

122640C1

ARM

- coulter mounting, left-hand, welded (not shown)

1шт.

2

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, special, 25/32 x 1/4 x 1/8 inch

2шт.

3

69442D

NUT

- hex, slotted, 3/4 inch NF

2шт.

4

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

2шт.

5

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 1/8 inch

2шт.

6

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

7

112536C1

SPRING

- cushion

2шт.

8

122520C1

SUPPORT

- coulter mounting, right-hand, see pages 9-13 and 9-15 for coulter shanks and clamps for mounting to main frame

1шт.

8a

122583C1

SUPPORT

- coulter mounting, left-hand (not shown)

1шт.

9

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4-28 special threads x 1/2 inch

4шт.

10

122711C1

HUB

- wheel

2шт.

11

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

14

28341R1

PLOW DISC

DISK - coulter, rippled edge, 20 inch

1шт.

14

122567C1

DISC

DISK - coulter, 22 inch rippled edge

1шт.

15

472222R1

SLEEVE

- oil seal

2шт.

16

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil

2шт.

17

41-3044

PLUG,Exp, 2 3/4"

2шт.

18

651817R1

BEARING CUP

CUP - tapered roller bearing, inner

2шт.

18

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

19

651814R1

BEARING CUP

CUP - tapered roller bearing, outer

2шт.

20

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - tapered roller bearing, inner

2шт.

21

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - tapered roller bearing, outer

2шт.

21

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

22

112524C1

COVER

- reinforcing plate

2шт.

23

109058C1

TUBE,16 - 22 mm ID, 35 mm OD

- spring adjusting

2шт.

24

131669C1

BOLT

- eye

2шт.

25

439-1828

HEADED PIN,1/2" x 1 3/4"

PIN - headed, 1/2 x 1-3/4 inch, grade 2

2шт.

26

432-1216

COTTER PIN,3/16" x 1"

2шт.

27

112844C1

COLLAR CLAMP

CLAMP -

2шт.

28

113-319

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

2шт.

29

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

30

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

2шт.
