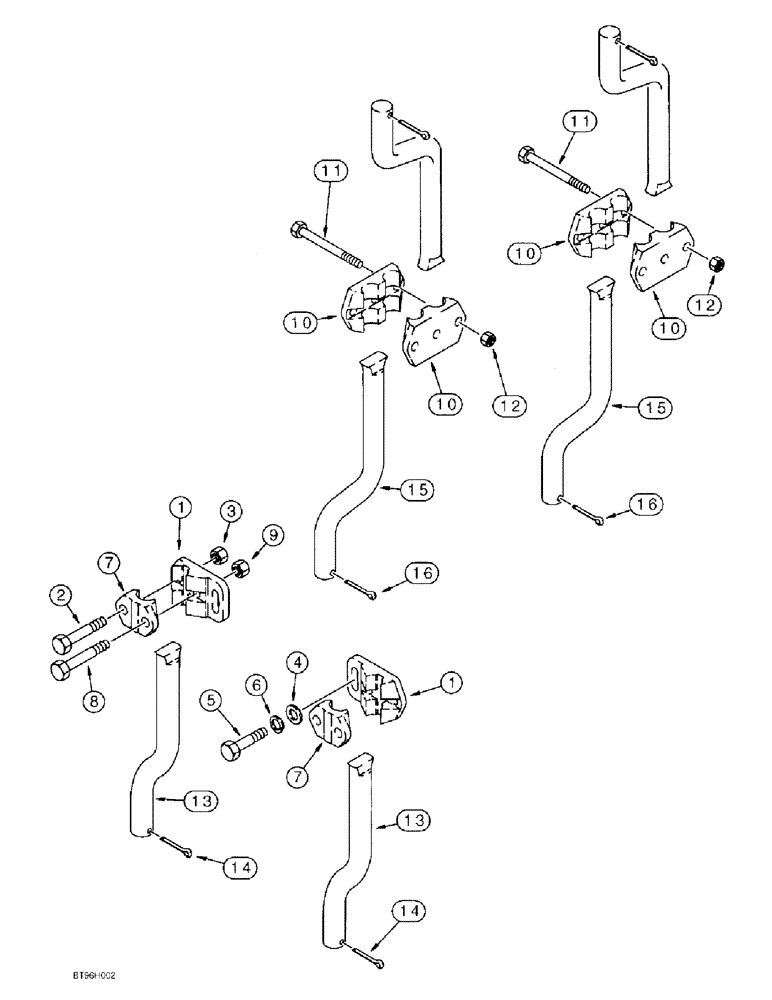

Запчасти Case IH 145 (09-06) - COULTER SHANKS AND CLAMPS, RIGID AND SPRING TRIP BEAM PLOWS (09) - CHASSIS/ATTACHMENTS

1

462684R1

CLAMP

- front coulter

2шт.

2

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

- hex, 5/8 NC x 3-1/4 inch

2шт.

3

425-1010

NUT,5/8"-11, G5

2шт.

4

523011R1

WASHER

- special, coulter clamp

2шт.

5

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

2шт.

6

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

524492R1

CLAMP

CAP - coulter clamp, one shank

2шт.

8

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

2шт.

9

425-1010

NUT,5/8"-11, G5

2шт.

10

462687R1

STAPLE

CLAMP - coulter cap, two shank

2-4шт.

11

414-1072

BOLT,Hex, 5/8" - 18 x 4-1/2", Gr 5

- hex, 5/8 NF x 4-1/2 inch

3-6шт.

12

425-1110

NUT,5/8"-18, G5

3-6шт.

13

466944R1

ROD

SHANK - coulter, front

2шт.

14

432-2040

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

2шт.

15

488792R1

SHANK

- coulter

2-4шт.

16

432-2040

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

2-4шт.
